Name: Autel Alpha L35T Standard Bundle
Availability: InStock

Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.

Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), 4K 35x Optical Zoom Camera, a wide angle camera and a laser rangefinder.

Aircraft

Autel Alpha Empty Weight	5535 g (Smart battery, propellers included and gimbal excluded)
Autel Alpha Weight	6480 g (Smart battery, gimbal and propellers included)
Autel Alpha Maximum Take-Off Mass (MTOM)	8400 g
Fuselage Dimensions	1205×980×278 mm (unfolded, incl. propellers) 780×568×278 mm(unfolded, excl. propellers) 455×263×248 mm (folded, excl. propellers)
Diagonal Wheelbase	Diagonal: 814 mm
Maximum Ascent Speed	Slow: 2.5 m/s Smooth: 3 m/s Standard: 6 m/s Ludicrous: 15 m/s
Maximum Descent Speed	Slow: 2.5 m/s Smooth: 3 m/s Standard: 5 m/s Ludicrous: 10m/s
Maximum Horizontal Flight Speed (Windless Near Sea Level)	Slow: 3 m/s Smooth: 10 m/s Standard: 15 m/s (forward & backward), 10 m/s (sidewards) Ludicrous: 25 m/s (forward & backward & sidewards)
Maximum Service Ceiling Above Sea Level	4500 meters
Maximum Flight Altitude	800 meters (Altitude limit in the App)
Maximum Flight Time (Windless, Speed: 10.5 m/s)	40 minutes
Maximum Range	30 km (with carbon fiber propeller) 27.5km (with injection molded propeller)
Maximum Hovering Time (Windless)	38 minutes
Maximum Wind Speed Resistance	Takeoff and Landing Phase: 10.7 m/s Cruise Phase: 12 m/s
Maximum Tilt Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
Maximum Angular Velocity	Pitch axis: 300°/s Heading axis: 120°/s
Operating Temperature	-20℃ to 50℃
Hot-swappable Batteries	Supported
IP Rating	IP55
GNSS	GPS+Galileo+BeiDou+GLONASS
Hovering Accuracy	Vertically ±0.1 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX) Horizontally ±0.15 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX)

Image Transmission

Operating Frequency	900M: 902 – 928 MHz* 2.4G: 2.400 – 2.476GHz, 2.400 – 2.4835 GHz 5.2G: 5.15 - 5.25 GHz, 5.17 - 5.25 GHz* 5.8G: 5.725 - 5.829GHz, 5.725 - 5.850GHz * Only applicable to FCC and ISED regions. Only applicable to SRRC regions. * Only applicable to FCC, CE (except Germany), and UKCA regions. **** Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15km CE: 8km
Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm(FCC); ≤23 dBm(CE/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)

Visual Sensing System

Sensing Range	Forward: 0.2 - 31 m Backward: 0.2 - 26 m Sidewards: 0.5 - 45 m Upward: 0.2 - 45 m Downward: 0.2 - 45 m
FOV	Forward & Backward: 90°(H), 90°(V) Sidewards: 90°(H), 90°(V) Upward: 90°(H), 90°(V) Downward: 90°(H), 90°(V)
Operating Environment	Forward, backward, sidewards, and upward: The surface has rich textures, under a sufficient lighting environment (>15 lux). Downwards: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux).

Millimeter-wave Radar Sensing System

Operating Frequency	60G: 60 - 64GHz 24G: 24.0 - 24.25GHz
Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G： ≤20mW(SRRC)
Sensing Range	60G radar: Upward: 0.3 - 20 m Downward: 0.15 - 40 m Forward & Backward: 0.3 - 30 m Sidewards: 0.3 - 30 m 24G radar: Downward: 0.8 - 20 m
FOV	Horizontal (6dB): ±35°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz))
Operating Environment	60G millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. 24G millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 20 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 10 meters.
Aircraft Version Limitations*	In order to comply with the regulations of the country or region where the target market is located, aircraft bottom millimeter-wave radars in some markets use the 24G frequency band, and the five directions of front, rear, left, right, and top use the 60G frequency band. Among them, the 24G version of the aircraft has turned off the 60G radar function in the five directions of front, rear, left, right, and top in the flight control software before leaving the factory, and only turned on the bottom 24G radar for assisted landing. The 24G version of the aircraft only supports visual obstacle avoidance under good lighting conditions and does not support the millimeter-wave radar obstacle avoidance function at night.

Wi-Fi

Wi-Fi Protocol	802.11a/b/g/n/ac/ax
Wi-Fi Operating Frequency	2.4G: 2.400 – 2.476GHz, 2.400 – 2.4835 GHz 5.2G: 5.15-5.25GHz, 5.17-5.25GHz** 5.8G: 5.725 - 5.829GHz, 5.725 - 5.850 GHz Only applicable to SRRC regions. Only applicable to FCC, CE (except Germany), and UKCA regions. * Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Wi-Fi Transmitter Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G： ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)

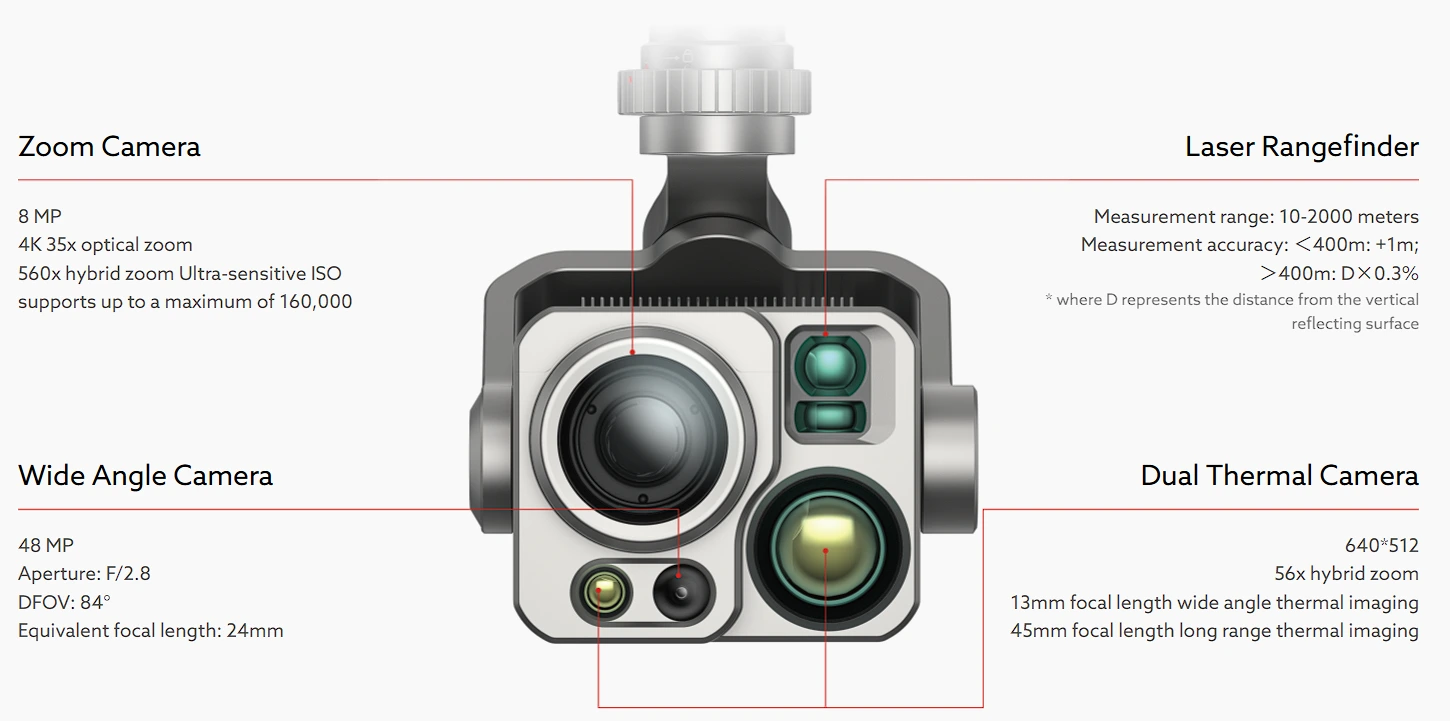

DG-L35T Gimbal Technical Specifications

Dimension	144.7×133.3×158.4 mm
Weight	920g
IP Rating	IP55
Installation	Detachable (E-shape design)
Operating Temperature	-20℃ to +50℃
Storage Temperature	-30℃ to +70℃
Data Storage	Support microSD
Max. Expandable Memory	256GB
Recommended Memory Card List	UHS-I Speed Class U3 or V30, minimum write speed 30MB/s
Mechanical Ranger	Pitch: -135° to 45° Roll: -60° to 60° Yaw: -90° to 90°
Controllable Range	Pitch: -90° to 30°
Stable system	3-axis mechanical gimbal (pitch, yaw, roll)
Max Control Speed (pitch)	100°/s
Angular Vibration Range	＜0.005°

Zoom Camera

Image Sensor	1/1.8" CMOS. Effective pixels: 8M
Lens	Focal length: 7.1 - 171.95 mm±5% 35 mm equivalent focal length: 34.7 - 838 mm Aperture: f/1.61(Wide)- f/5.19(Tele)±5% Focusing distance: 10 m ~ ∞
ISO Range	Normal mode ISO100 - ISO25600 Super Night ISO100 – ISO160000
Shutter Speed	Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
Exposure Compensation	±3.0 (1/3 increments)
Digital Zoom	1.4 - 35x continuous optical zoom, 35-560x digital zoom
IR-CUT	Default Setting: Auto - Disabled during daytime, activated during nighttime. Manual Activation: Turn on IR-CUT - Display in Black and White. Manual Deactivation: Turn off IR-CUT - Display in Color.
Max Photo Resolution	3840×2160
Photo Format	JPG
Photo Taking Mode	Auto
Video Resolution	3840×2160 30P
Video Format	MP4
Max Bit Rate	30Mbps
Supported File Systems	exFAT/Fat32

Wide Angle Camera

Image Sensor	1/2" CMOS. Effective pixels: 48M
Lens	Focal length: 4.49 mm Equivalent focal length: 24 mm Aperture: f/2.8
ISO Range	Auto: ISO100 - ISO3200
Shutter Speed	Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
Photo Size	4000×3000
Photo Format	JPG
Photo Taking Mode	Auto
Video Resolution	4000×3000 25P
Video Format	MP4
Max Bit Rate	30Mbps
Supported File Systems	exFAT/Fat32

Infrared Thermal Imaging Camera 1

Image Sensor	Uncooled VOx Microbolometer
Lens	FOV: 42° Focal length: 13 mm Aperture: f/1.2 Focusing distance: 6 m ~ ∞
Sensitivity	≤50mK@f/1.0, 25°C
Pixel Pitch	12um
Wavelength	8 - 14um
Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy	5-meter distance test in a windless laboratory environment at 25°C: ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature Measurement Distance	5 m
Digital Zoom	1-3.5x wide angle digital zoom
Temperature Alert	High and low temperature alarm thresholds, Reporting coordinates and temperature values
Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size	640×512
Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Photo Taking Mode	Auto
Video Resolution	640×512@25FPS
Video Format	MP4

Infrared Thermal Imaging Camera 2

Image Sensor	Uncooled VOx Microbolometer
Lens	FOV: 12.3° Focal length: 45 mm Aperture: f/1.2 Focusing distance: 35 m ~ ∞
Sensitivity	≤50mK@f/1.0, 25°C
Pixel Pitch	12um
Wavelength	8 - 14um
Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy	35-meter distance test in a windless laboratory environment at 25°C: ±5°C or reading ±5% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature Measurement Distance	35 m
Digital Zoom	3.5-56x tele digital zoom
Temperature Alert	High and low temperature alarm thresholds, Reporting coordinates and temperature values
Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size	640×512
Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Photo Taking Mode	Auto
Video Resolution	640×512@25FPS
Video Format	MP4

Laser Rangefinder

Wavelength	905 nm
Measurement Accuracy	＜400m: +1m, >400m: D×0.3% where D is the distance to a vertical reflecting plane
Measuring Range	10 - 2000 m

Autel Smart Controller v3

Dimensions	269×189×87 mm (antennas folded horizontally) 269×189×173 mm (antennas folded vertically) 269×302×87 mm (antennas unfolded horizontally)
Weight	1194 g (protective case excluded) 1365 g (protective case included)
Operating Temperature	-20℃ to 40℃
Storage Temperature	+15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month)
Protection Rating	IP43
Internal Storage	128GB
microSD Extension	Not supported
Operating System	Based on Android 11
Application Installation	Supports the installation of third-party Android apps
Video Performance	4K@24FPS H.264/H.265 video smooth play
HDMI	Outputs up to 1080P@60FPS video
USB-C	Charging: supports PD/QC fast charging, up to 65W Data: USB3.1 Gen2
USB-A	Charging: 5V/2A Data: USB2.0
GNSS	GPS+Galileo+BeiDou+GLONASS
Wi-Fi Protocol	802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency	2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz, 5.725-5.850GHz *Only applies to SRRC region Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA） 5.8G: ≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）
Bluetooth	Bluetooth 5.0
Bluetooth Operating Frequency	2.400 - 2.4835 GHz Note: Some regions have designated frequency ranges. Check local laws and regulations for details.
Bluetooth Effective Isotropic Radiated Power (EIRP)	≤20dBm

Controller Image Transmission

Antenna	Dual antennas, 1T2R, detachable design
Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA）
Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15 km CE/SRRC: 8 km

Controller Display

Type	TFT LCD
Dimensions	7.9 inches
Maximum Brightness	2000 nits
Resolution	2048×1536
Refresh Rate	60Hz
Touch Control	Supports 10-point touch

Controller Battery

Battery Type	Li-Po 3S
Rated Capacity	5800 mAh
Voltage	11.55V
Battery Energy	67 Wh
Charging Time	About 120 minutes
Battery Endurance	2.5 hours (Max brightness) 4.0 hours (50% brightness)
Battery Replacement	Not supported

Smart Battery

Battery Dimension	200×76.8×50 mm
Operating Temperature	-20℃ to 50℃
Battery Type	LiPo 6S
Rated Capacity	10000mAh
Battery Energy	237Wh
Voltage	23.7V
Charging Voltage Limit	26.7V
Rated Charging Power	180W
Maximum Charging Power	260W
Weight	995 g
Battery Charge Temperature	+10℃ ~ +40℃* (When the battery temperature is below 10℃, the battery stops charging and activates self-heating. When the battery temperature is above +40℃, the battery stops charging.)
Ideal Storage Temperature	+22℃ ~ +28℃
Storage Temperature & Humidity	-10℃ ~ +30℃, 65±20%RH

1x Aircraft (battery, propeller set, L35T gimbal, gimbal cover)

1x SD Card 128 GB

1x Manual

1x Rugged case

2x Spare Propeller (pair), one CW and one CCW

4x Propeller Sleeve

1x Smart Battery

1x Battery charger

1x Smart Remote Controller (RC) v3, sticks included

1x RC lanyard

1x RC cover

1x RC spare joystick (pair)

1x RC charger

1x USB-C to USB-A data cable

1x USB-C to USB-C data cable

1x Maintenance Kit (Screwdriver, Cleaner, Soft Brush, Silicone Air Blower, Dampener, 8x Propeller Fastening Screw)

High-level specs

Aircraft
Merk	Autel
Gewicht	6480g
Dimensies (opengevouwen)	1205×980×278mm
Max vluchttijd	40 minuten
Max vluchtbereik	30km
IP rating	IP55
Drone klasse	C3
Kleur	Grijs

Gimbal cameras
Camera 1	8 million pixels, 1.4-35x zoom
Camera 2	48 million pixels, wide angle
Thermische camera 1	640x512, 1-3.5x zoom
Thermische camera 2	640x512, 3.5-56x zoom
Laser Rangefinder	10-2000m
Thermische camera	Ja
Nachtzicht	Nee

Accessories
Protector case	Ja
Reserve-componenten	2x propeller paar
microSD kaart grootte	128 GB

Remote controller
Remote controller schermgrootte	7.9"

Andere
Type	Drone bundle
