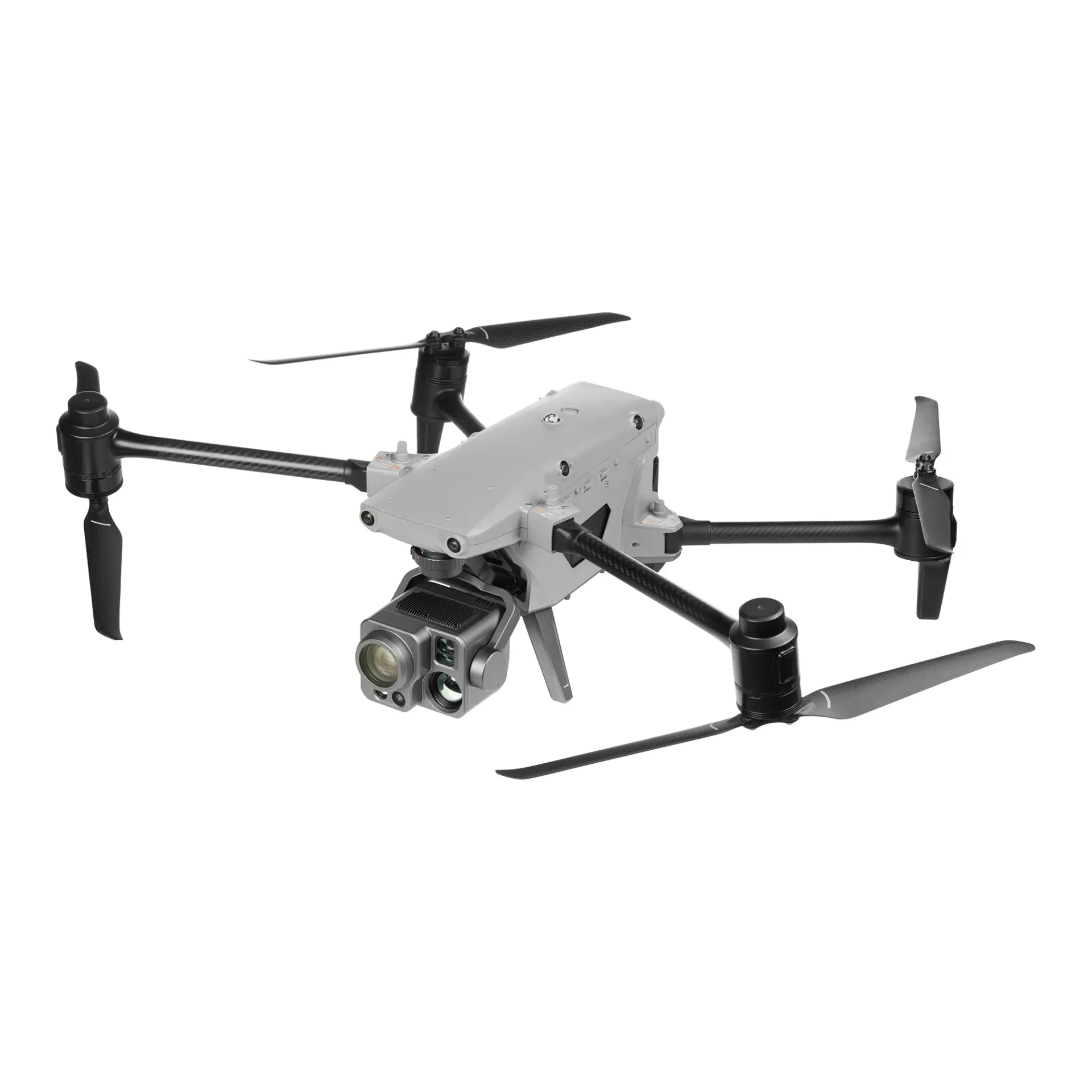

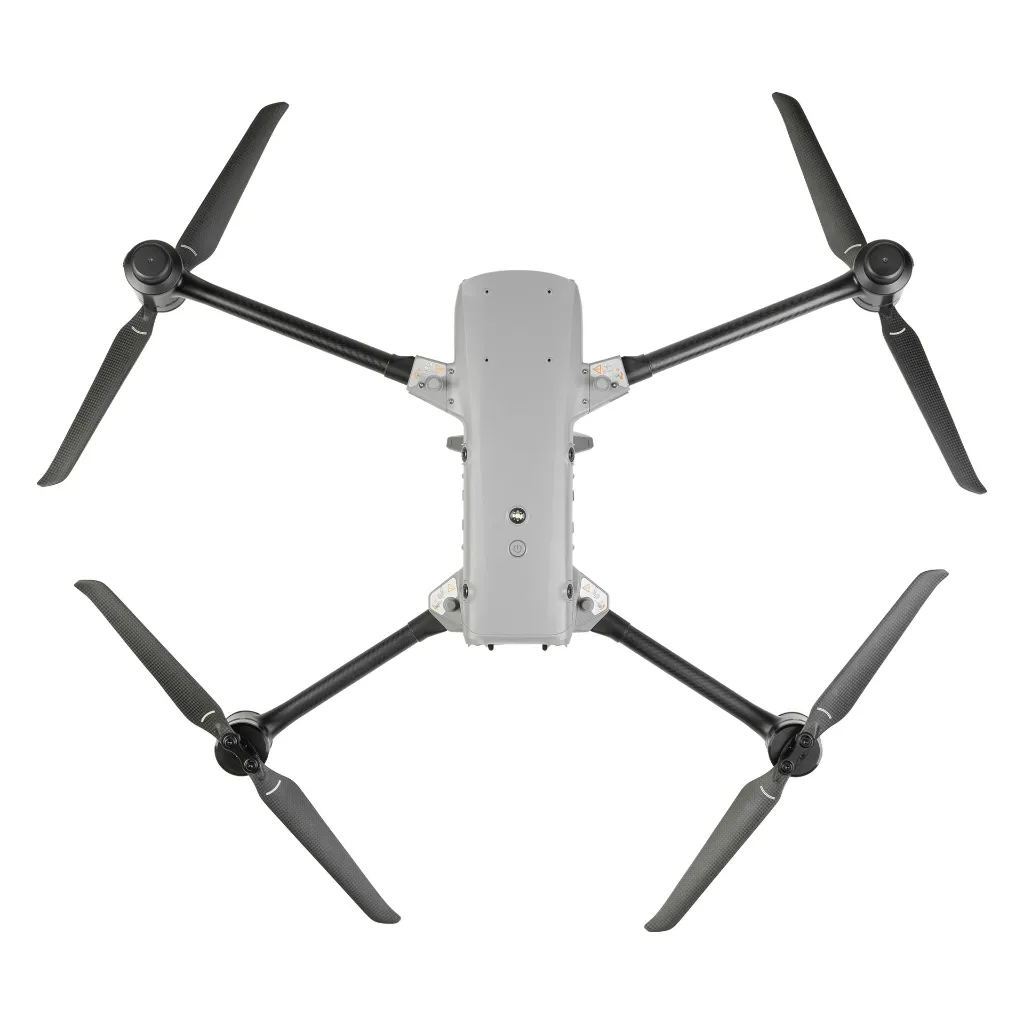

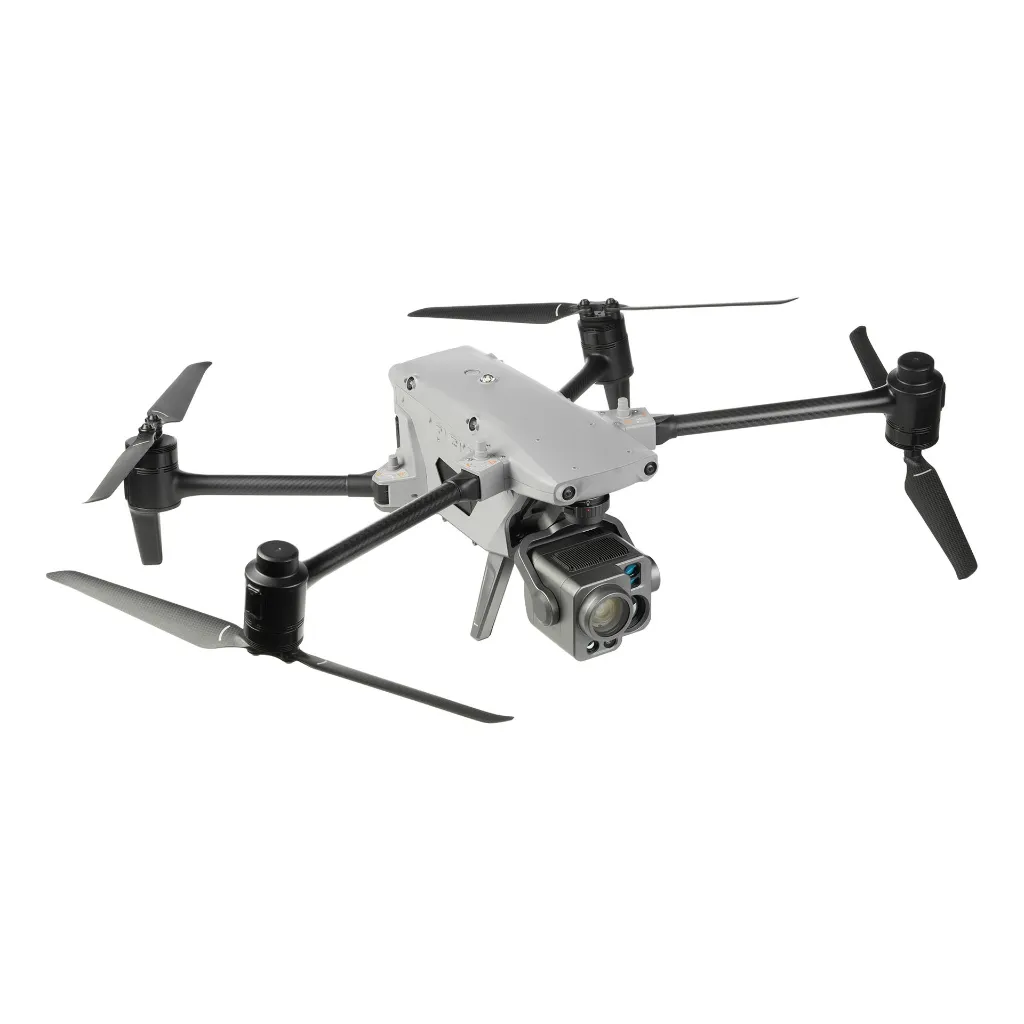

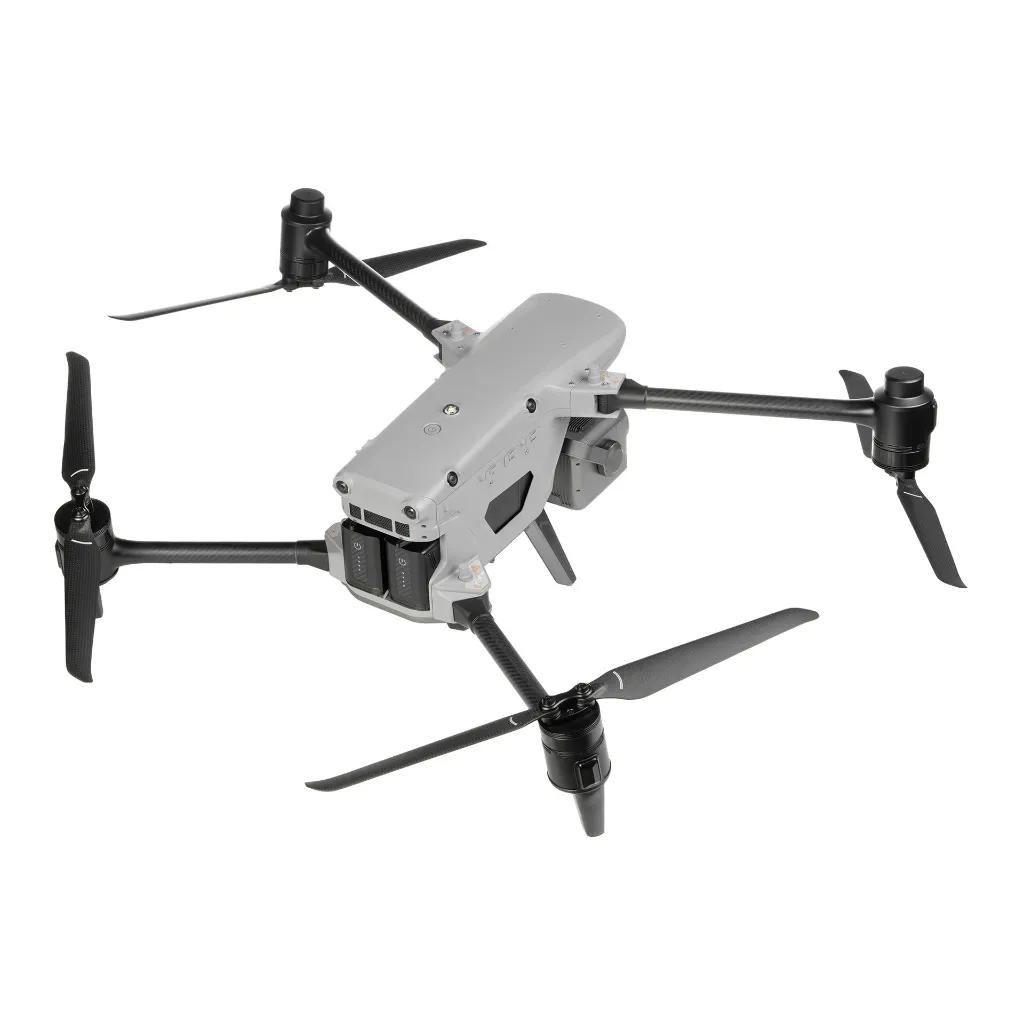

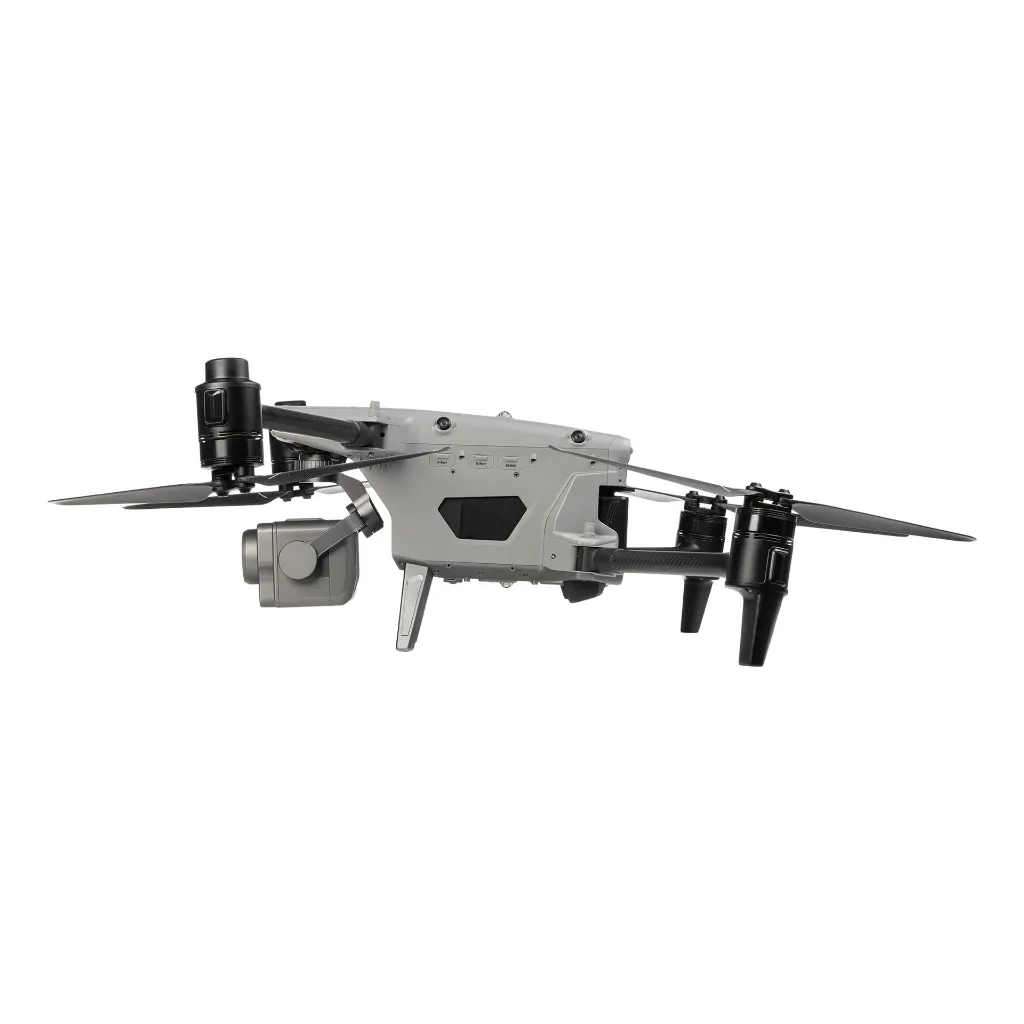

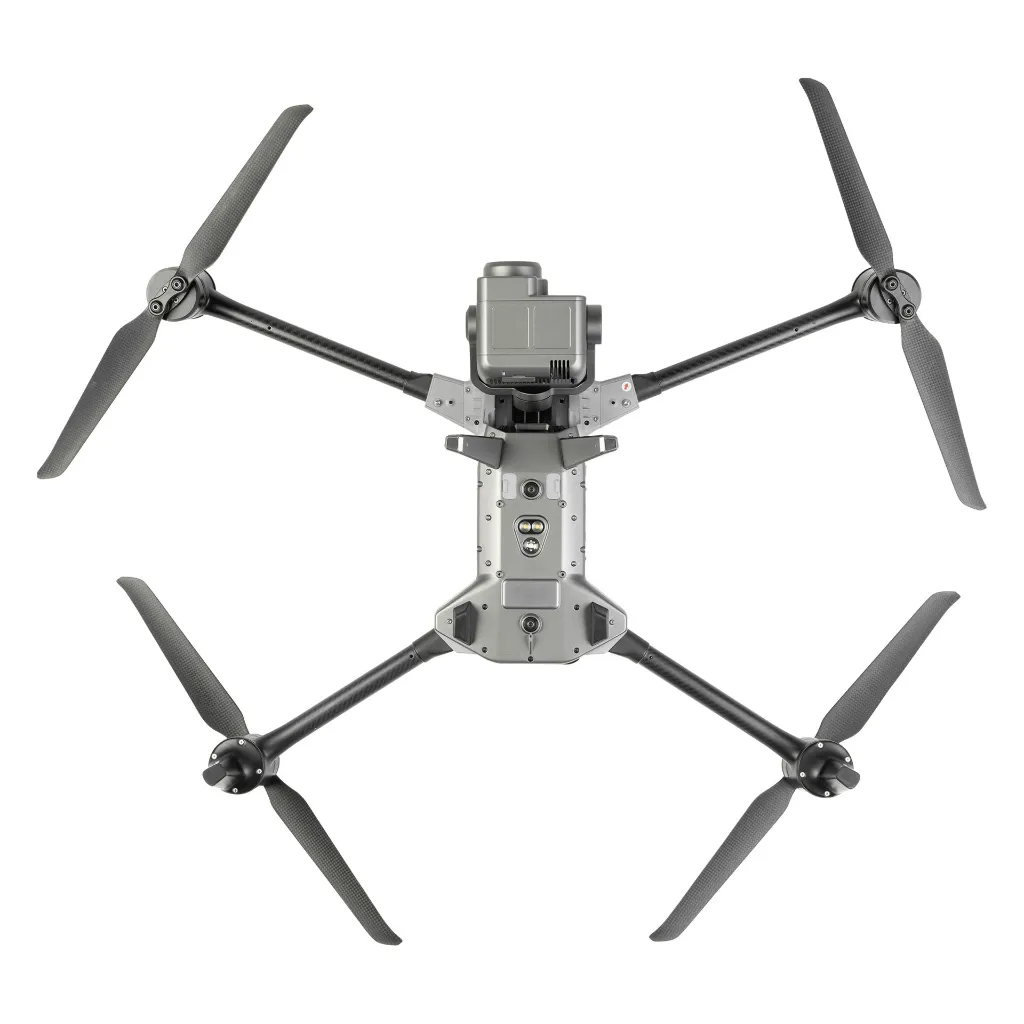

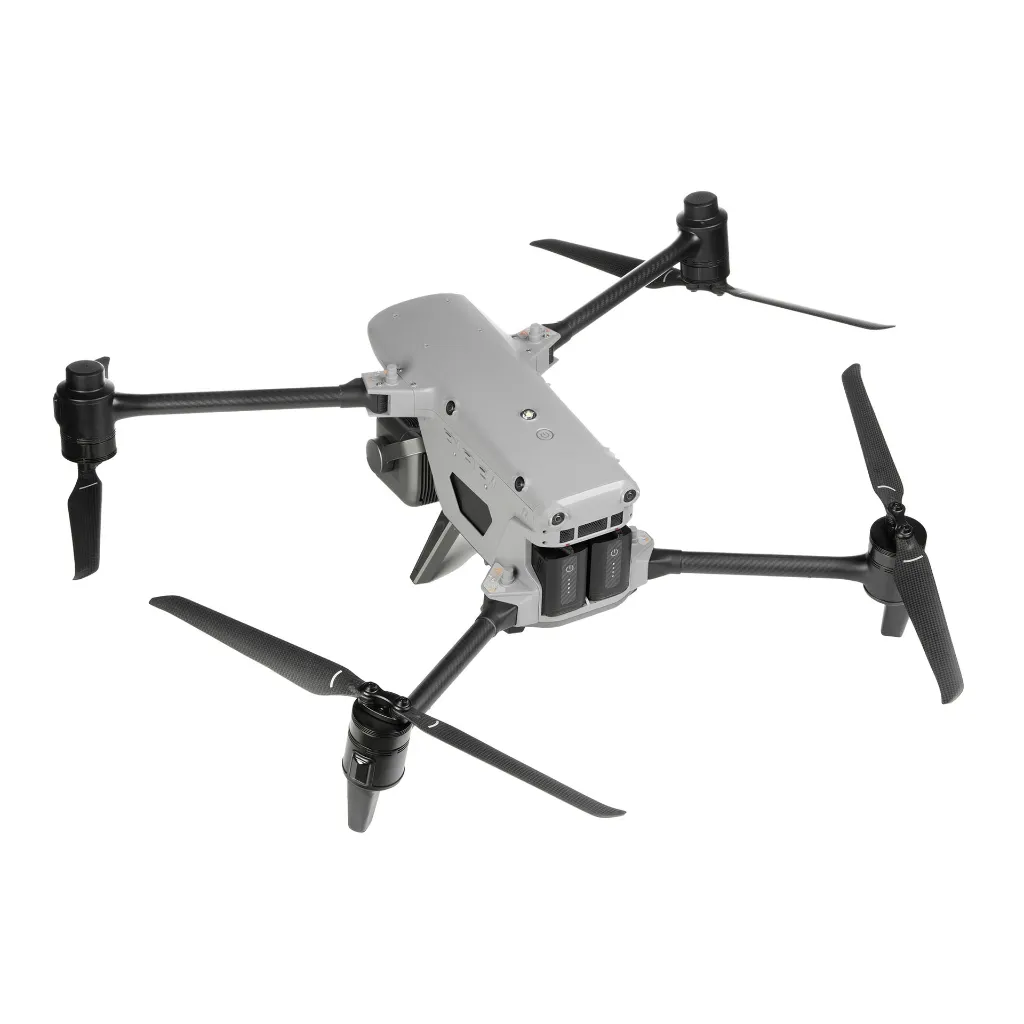

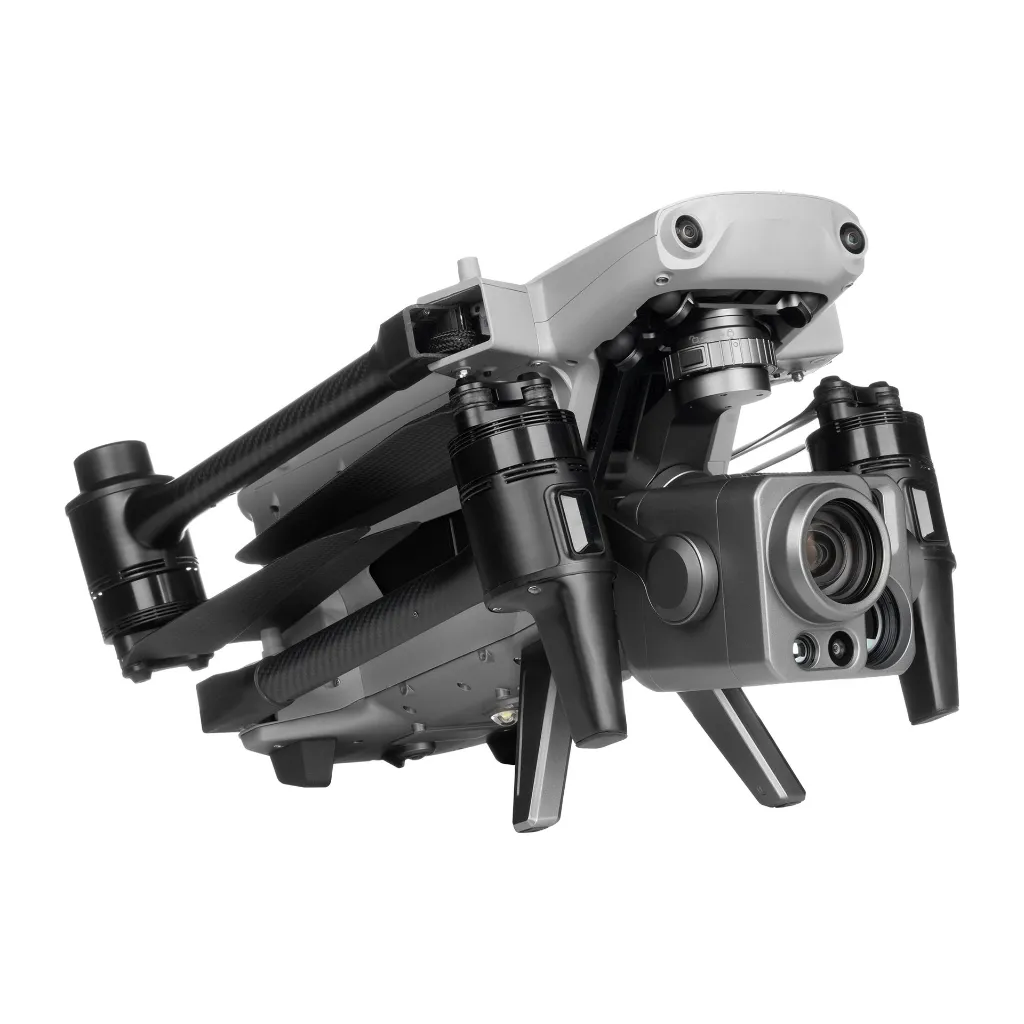

Autel Alpha L35T Standard Bundle

Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.

Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.


0.00 € 0.00 € (Tax excluded)

  • Brand
  • Weight
  • Dimensions (unfolded)
  • Max flight time
  • Max flight range
  • IP rating
  • Camera 1
  • Camera 2
  • Thermal camera 1
  • Thermal camera 2
  • Rangefinder
  • Remote controller display size
  • Protector case
  • Spare components
  • microSD card size
  • Drone class
  • Thermal camera
  • Night vision
  • Type
  • Color
Add to cart
Contact Us


Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.

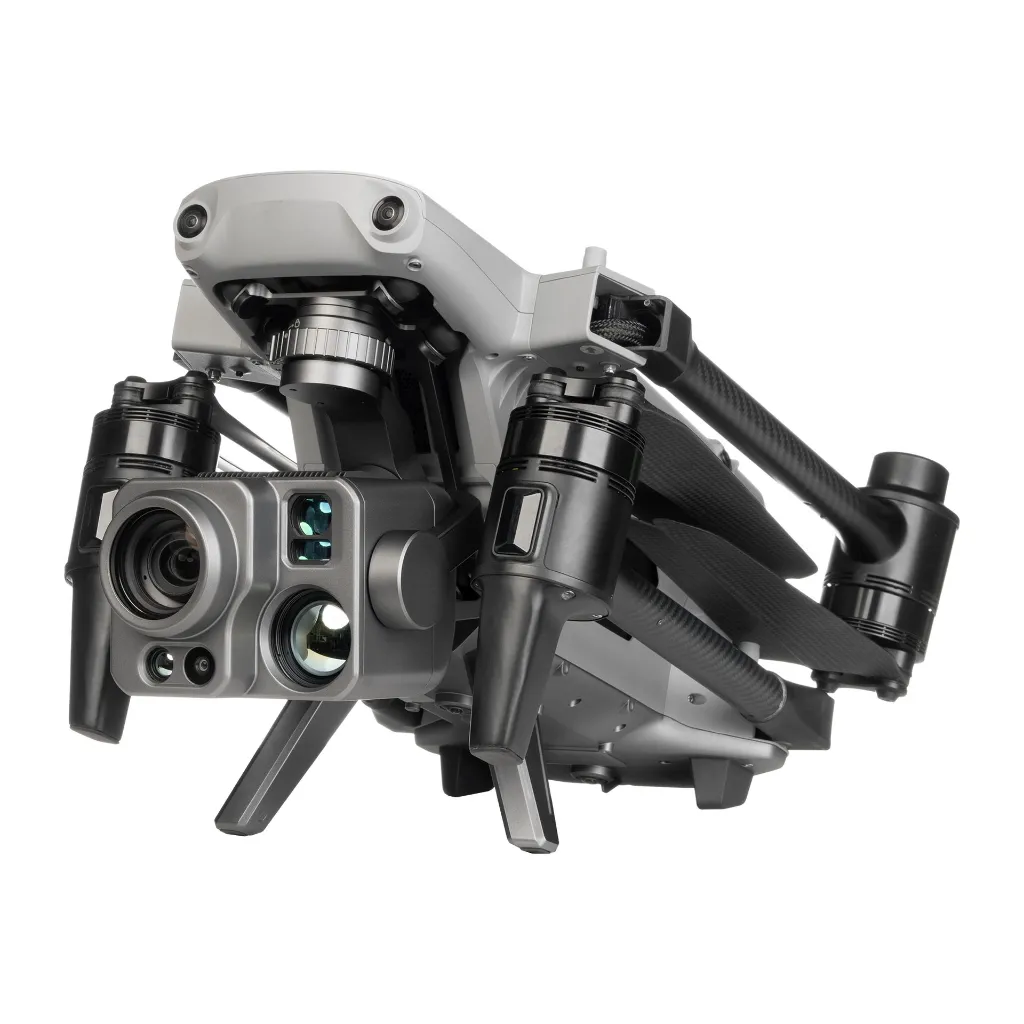

Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), 4K 35x Optical Zoom Camera, a wide angle camera and a laser rangefinder.



Autel Alpha Empty Weight5535 g (Smart battery, propellers included and gimbal excluded)
Autel Alpha Weight6480 g (Smart battery, gimbal and propellers included)
Autel Alpha Maximum Take-Off Mass (MTOM)8400 g
Fuselage Dimensions1205×980×278 mm (unfolded, incl. propellers)
780×568×278 mm(unfolded, excl. propellers)

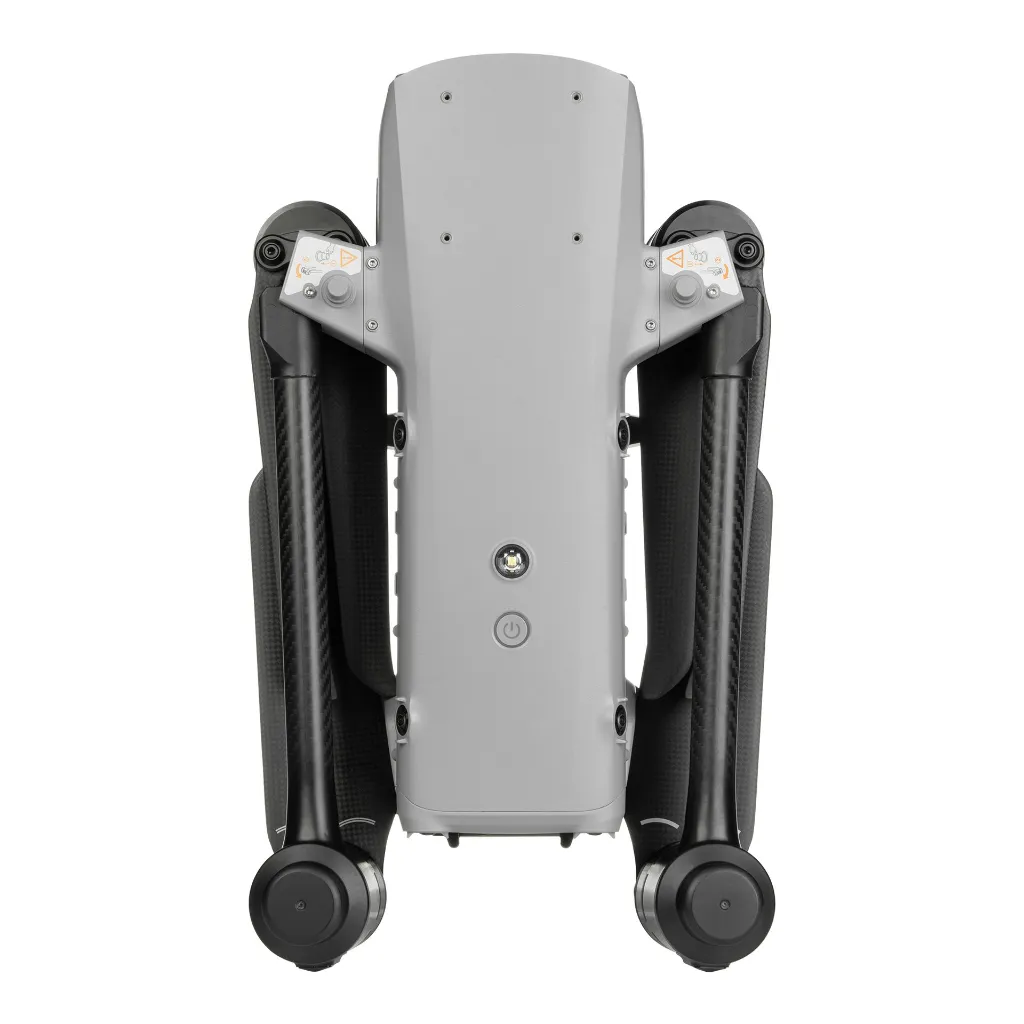

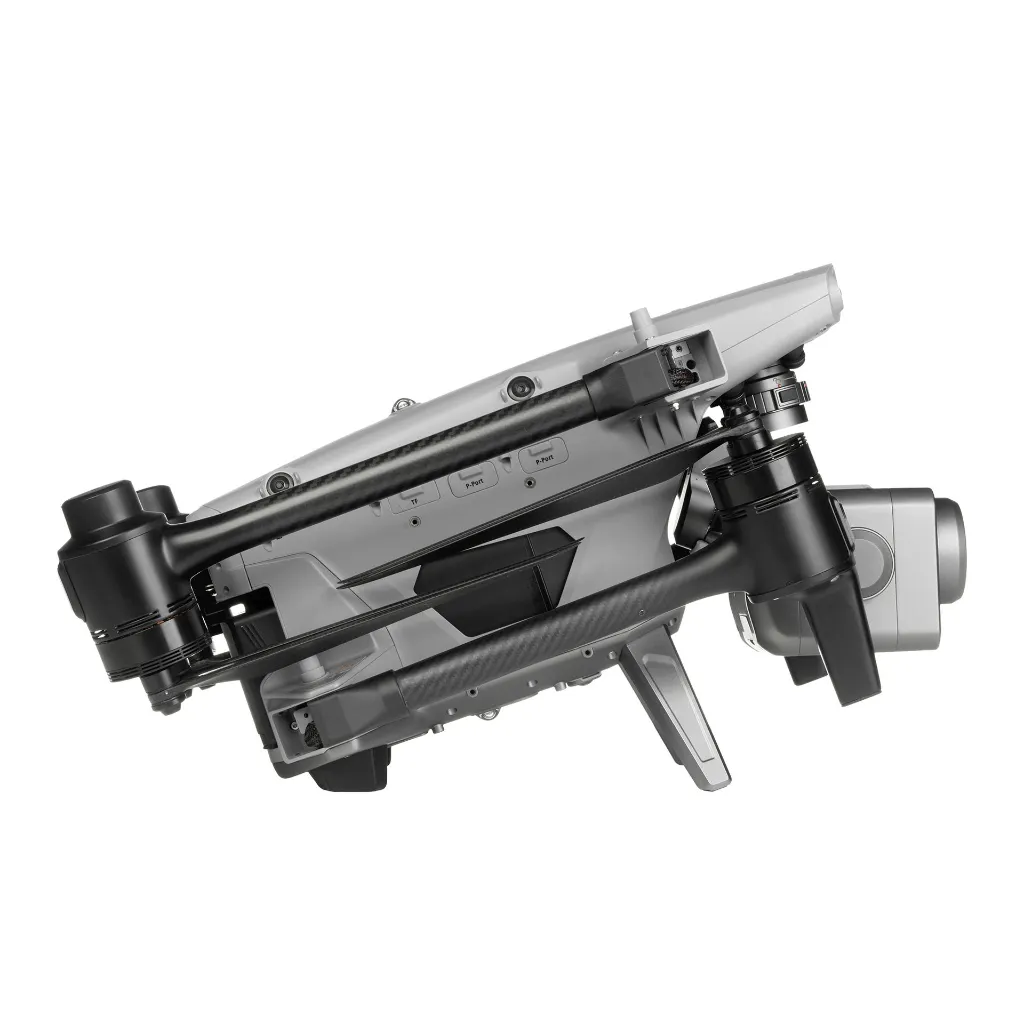

455×263×248 mm (folded, excl. propellers)
Diagonal WheelbaseDiagonal: 814 mm
Maximum Ascent SpeedSlow: 2.5 m/s
Smooth: 3 m/s
Standard: 6 m/s
Ludicrous: 15 m/s
Maximum Descent SpeedSlow: 2.5 m/s
Smooth: 3 m/s
Standard: 5 m/s
Ludicrous: 10m/s
Maximum Horizontal Flight Speed
(Windless Near Sea Level)		Slow: 3 m/s
Smooth: 10 m/s
Standard: 15 m/s (forward & backward), 10 m/s (sidewards)
Ludicrous: 25 m/s (forward & backward & sidewards)
Maximum Service Ceiling Above Sea Level4500 meters
Maximum Flight Altitude800 meters (Altitude limit in the App)
Maximum Flight Time
(Windless, Speed: 10.5 m/s)		40 minutes
Maximum Range30 km (with carbon fiber propeller)
27.5km (with injection molded propeller)
Maximum Hovering Time (Windless)38 minutes
Maximum Wind Speed ResistanceTakeoff and Landing Phase: 10.7 m/s
Cruise Phase: 12 m/s
Maximum Tilt AngleSlow: 10°
Smooth: 30°
Standard: 30°
Ludicrous: 36°
Maximum Angular VelocityPitch axis: 300°/s
Heading axis: 120°/s
Operating Temperature-20℃ to 50℃
Hot-swappable BatteriesSupported
IP RatingIP55
GNSSGPS+Galileo+BeiDou+GLONASS
Hovering AccuracyVertically
±0.1 m (when visual positioning works normally)
±0.3 m (when GNSS works normally)
±0.1 m (when RTK FIX)
Horizontally
±0.15 m (when visual positioning works normally)
±0.3 m (when GNSS works normally)
±0.1 m (when RTK FIX)
Operating Frequency900M: 902 – 928 MHz*
2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz
5.2G: 5.15 - 5.25 GHz***, 5.17 - 5.25 GHz****
5.8G: 5.725 - 5.829GHz**, 5.725 - 5.850GHz
* Only applicable to FCC and ISED regions.
**Only applicable to SRRC regions.
*** Only applicable to FCC, CE (except Germany), and UKCA regions.
**** Only applicable to Germany.
Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Maximum Transmission Distance
(Without Interference and Blocking)		FCC: 15km
CE: 8km
Effective Isotropic Radiated Power
(EIRP)		900M:
≤30dBm (FCC/ISED)
2.4G:
≤30dBm(FCC/ISED); ≤20dBm(CE/SRRC/UKCA)
5.2G:
≤30dBm(FCC); ≤23 dBm(CE/UKCA)
5.8G:
≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
Sensing RangeForward: 0.2 - 31 m
Backward: 0.2 - 26 m
Sidewards: 0.5 - 45 m
Upward: 0.2 - 45 m
Downward: 0.2 - 45 m
FOVForward & Backward:
90°(H), 90°(V)
Sidewards:
90°(H), 90°(V)
Upward:
90°(H), 90°(V)
Downward:
90°(H), 90°(V)
Operating EnvironmentForward, backward, sidewards, and upward:
The surface has rich textures, under a sufficient lighting environment (>15 lux).
Downwards:
The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux).
Operating Frequency60G: 60 - 64GHz
24G: 24.0 - 24.25GHz
Effective Isotropic Radiated Power
(EIRP)		60G:
≤20dBm (CE/UKCA/FCC)
24G：
≤20mW(SRRC)
Sensing Range60G radar:
Upward: 0.3 - 20 m
Downward: 0.15 - 40 m
Forward & Backward: 0.3 - 30 m
Sidewards: 0.3 - 30 m
24G radar:
Downward: 0.8 - 20 m
FOVHorizontal (6dB): ±35°/±22° (60 GHz/24 GHz)
Vertical (6dB): ±30°/±20° (60 GHz/24 GHz))
Operating Environment60G millimeter-wave radar sensing system:
Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size.
24G millimeter-wave radar sensing system:
Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 20 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 10 meters.
Aircraft Version Limitations*In order to comply with the regulations of the country or region where the target market is located, aircraft bottom millimeter-wave radars in some markets use the 24G frequency band, and the five directions of front, rear, left, right, and top use the 60G frequency band.
Among them, the 24G version of the aircraft has turned off the 60G radar function in the five directions of front, rear, left, right, and top in the flight control software before leaving the factory, and only turned on the bottom 24G radar for assisted landing.
The 24G version of the aircraft only supports visual obstacle avoidance under good lighting conditions and does not support the millimeter-wave radar obstacle avoidance function at night.
Wi-Fi Protocol802.11a/b/g/n/ac/ax
Wi-Fi Operating Frequency2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835 GHz
5.2G: 5.15-5.25GHz**, 5.17-5.25GHz***
5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850 GHz
*Only applicable to SRRC regions.
** Only applicable to FCC, CE (except Germany), and UKCA regions.
*** Only applicable to Germany.
Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Wi-Fi Transmitter Power (EIRP)2.4G:
≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.2G:
≤30dBm (FCC); ≤23dBm (CE/UKCA)
5.8G：
≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
Dimension144.7×133.3×158.4 mm
Weight920g
IP RatingIP55
InstallationDetachable (E-shape design)
Operating Temperature-20℃ to +50℃
Storage Temperature-30℃ to +70℃
Data StorageSupport microSD
Max. Expandable Memory256GB
Recommended Memory Card ListUHS-I Speed Class U3 or V30, minimum write speed 30MB/s
Mechanical RangerPitch: -135° to 45°
Roll: -60° to 60°
Yaw: -90° to 90°
Controllable RangePitch: -90° to 30°
Stable system3-axis mechanical gimbal (pitch, yaw, roll)
Max Control Speed (pitch)100°/s
Angular Vibration Range＜0.005°
Image Sensor1/1.8" CMOS. Effective pixels: 8M
LensFocal length: 7.1 - 171.95 mm±5%
35 mm equivalent focal length: 34.7 - 838 mm
Aperture: f/1.61(Wide)- f/5.19(Tele)±5%
Focusing distance: 10 m ~ ∞
ISO RangeNormal mode
ISO100 - ISO25600
Super Night
ISO100 – ISO160000
Shutter SpeedPhoto: 0.5s ~ 1/8000s
Video: 1/30s ~ 1/8000s
Exposure Compensation±3.0 (1/3 increments)
Digital Zoom1.4 - 35x continuous optical zoom, 35-560x digital zoom
IR-CUTDefault Setting: Auto - Disabled during daytime, activated during nighttime.
Manual Activation: Turn on IR-CUT - Display in Black and White.
Manual Deactivation: Turn off IR-CUT - Display in Color.
Max Photo Resolution3840×2160
Photo FormatJPG
Photo Taking ModeAuto
Video Resolution3840×2160 30P
Video FormatMP4
Max Bit Rate30Mbps
Supported File SystemsexFAT/Fat32
Image Sensor1/2" CMOS. Effective pixels: 48M
LensFocal length: 4.49 mm
Equivalent focal length: 24 mm
Aperture: f/2.8
ISO RangeAuto:
ISO100 - ISO3200
Shutter SpeedPhoto: 0.5s ~ 1/8000s
Video: 1/30s ~ 1/8000s
Photo Size4000×3000
Photo FormatJPG
Photo Taking ModeAuto
Video Resolution4000×3000 25P
Video FormatMP4
Max Bit Rate30Mbps
Supported File SystemsexFAT/Fat32
Image SensorUncooled VOx Microbolometer
LensFOV: 42°
Focal length: 13 mm
Aperture: f/1.2
Focusing distance: 6 m ~ ∞
Sensitivity≤50mK@f/1.0, 25°C
Pixel Pitch12um
Wavelength8 - 14um
Radiometric Measurement MethodCenter measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy5-meter distance test in a windless laboratory environment at 25°C: ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature Measurement Distance5 m
Digital Zoom1-3.5x wide angle digital zoom
Temperature AlertHigh and low temperature alarm thresholds, Reporting coordinates and temperature values
PaletteWhite Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size640×512
Photo FormatJPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Photo Taking ModeAuto
Video Resolution640×512@25FPS
Video FormatMP4
Image SensorUncooled VOx Microbolometer
LensFOV: 12.3°
Focal length: 45 mm
Aperture: f/1.2
Focusing distance: 35 m ~ ∞
Sensitivity≤50mK@f/1.0, 25°C
Pixel Pitch12um
Wavelength8 - 14um
Radiometric Measurement MethodCenter measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy35-meter distance test in a windless laboratory environment at 25°C: ±5°C or reading ±5% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature Measurement Distance35 m
Digital Zoom3.5-56x tele digital zoom
Temperature AlertHigh and low temperature alarm thresholds, Reporting coordinates and temperature values
PaletteWhite Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size640×512
Photo FormatJPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Photo Taking ModeAuto
Video Resolution640×512@25FPS
Video FormatMP4
Wavelength905 nm
Measurement Accuracy＜400m: +1m, >400m: D×0.3%
where D is the distance to a vertical reflecting plane
Measuring Range10 - 2000 m
Dimensions269×189×87 mm (antennas folded horizontally)
269×189×173 mm (antennas folded vertically)
269×302×87 mm (antennas unfolded horizontally)
Weight1194 g (protective case excluded)
1365 g (protective case included)
Operating Temperature-20℃ to 40℃
Storage Temperature+15℃ ~ +25℃ (within a year)
0℃ ~ +30℃ (within three months)
-20℃ ~ +45℃ (within a month)
Protection RatingIP43
Internal Storage128GB
microSD ExtensionNot supported
Operating SystemBased on Android 11
Application InstallationSupports the installation of third-party Android apps
Video Performance4K@24FPS H.264/H.265 video smooth play
HDMIOutputs up to 1080P@60FPS video
USB-CCharging: supports PD/QC fast charging, up to 65W
Data: USB3.1 Gen2
USB-ACharging: 5V/2A
Data: USB2.0
GNSSGPS+Galileo+BeiDou+GLONASS
Wi-Fi Protocol802.11a/b/g/n/ac
Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz*, 5.725-5.850GHz
*Only applies to SRRC region
Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Wi-Fi Effective Isotropic Radiated Power
(EIRP)		2.4G:
≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA）
5.8G:
≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）
BluetoothBluetooth 5.0
Bluetooth Operating Frequency2.400 - 2.4835 GHz
Note: Some regions have designated frequency ranges. Check local laws and regulations for details.
Bluetooth Effective Isotropic Radiated Power
(EIRP)		≤20dBm
AntennaDual antennas, 1T2R, detachable design
Operating Frequency900M: 902-928MHz*
2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz**, 5.725-5.850GHz
* Only applicable to FCC and ISED regions.
** Only applicable to SRRC region.
Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power
(EIRP)		900M:
≤30dBm(FCC/ISED)
2.4G:
≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.8G:
≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA）
Maximum Transmission Distance
(Without Interference and Blocking)		FCC: 15 km
CE/SRRC: 8 km
TypeTFT LCD
Dimensions7.9 inches
Maximum Brightness2000 nits
Resolution2048×1536
Refresh Rate60Hz
Touch ControlSupports 10-point touch
Battery TypeLi-Po 3S
Rated Capacity5800 mAh
Voltage11.55V
Battery Energy67 Wh
Charging TimeAbout 120 minutes
Battery Endurance2.5 hours (Max brightness)
4.0 hours (50% brightness)
Battery ReplacementNot supported
Battery Dimension200×76.8×50 mm
Operating Temperature-20℃ to 50℃
Battery TypeLiPo 6S
Rated Capacity10000mAh
Battery Energy237Wh
Voltage23.7V
Charging Voltage Limit26.7V
Rated Charging Power180W
Maximum Charging Power260W
Weight995 g
Battery Charge Temperature+10℃ ~ +40℃*
(When the battery temperature is below 10℃, the battery stops charging and activates self-heating.
When the battery temperature is above +40℃, the battery stops charging.)
Ideal Storage Temperature+22℃ ~ +28℃
Storage Temperature & Humidity-10℃ ~ +30℃, 65±20%RH

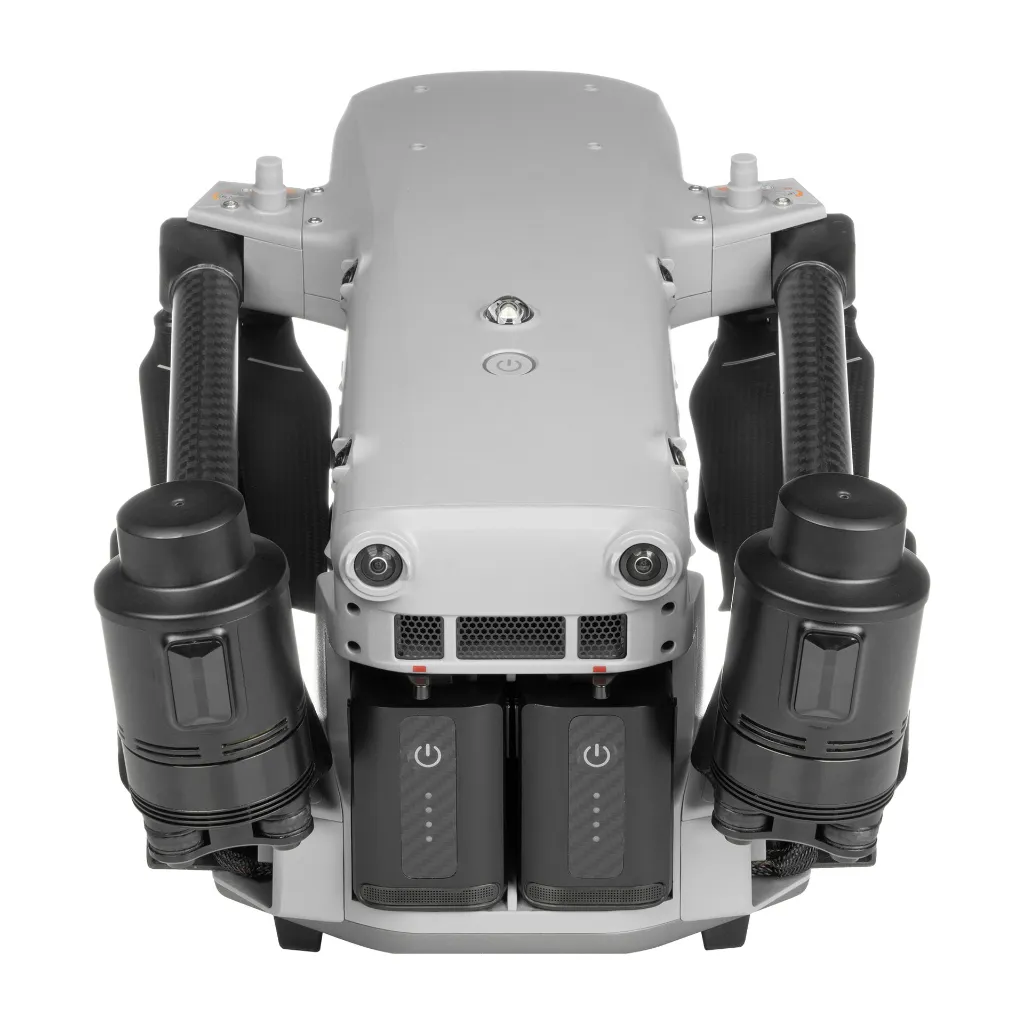

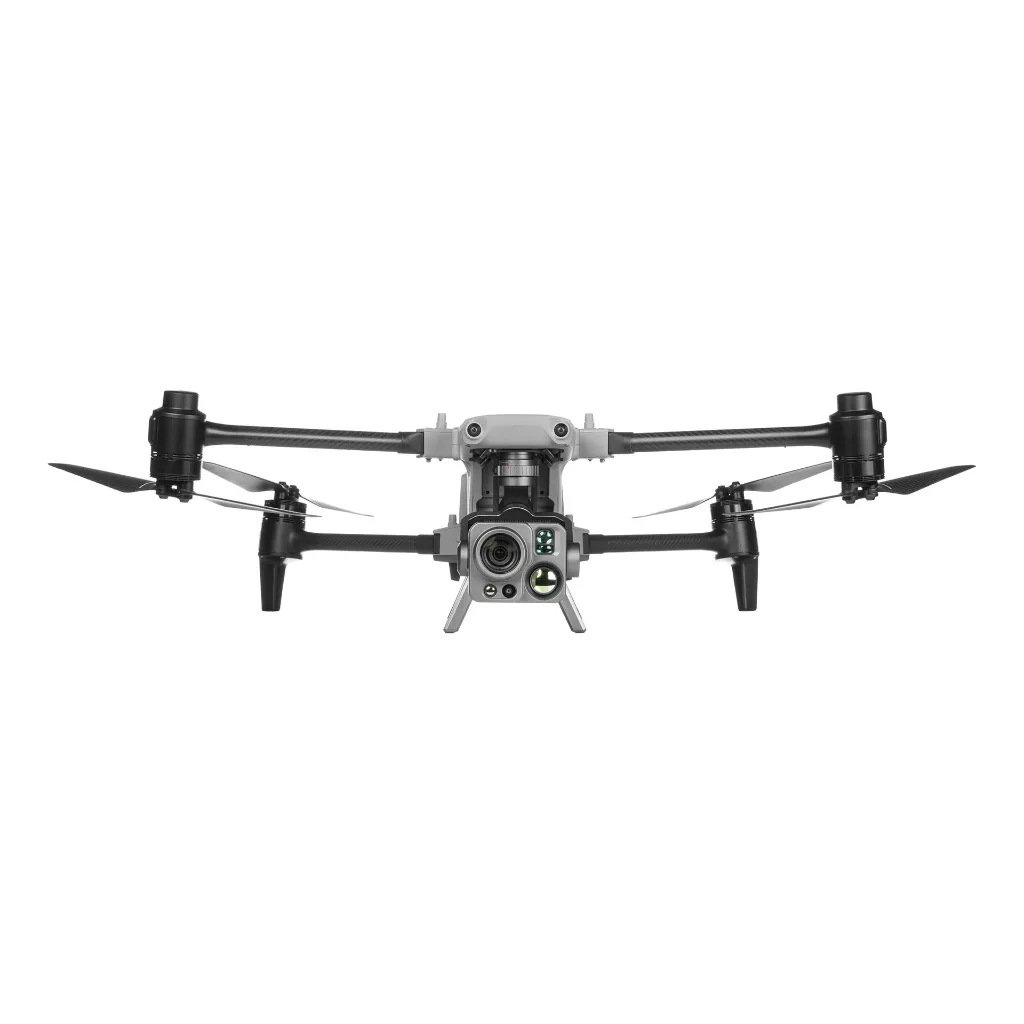

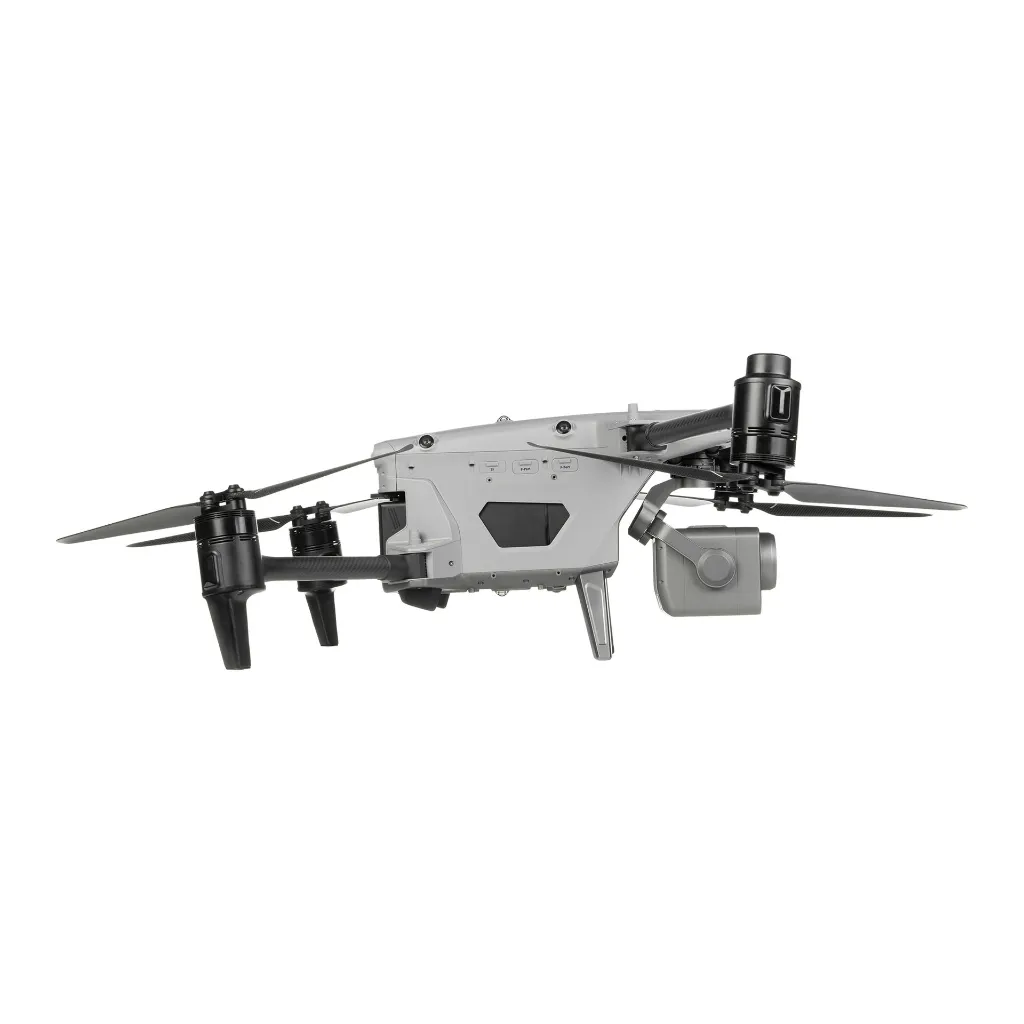

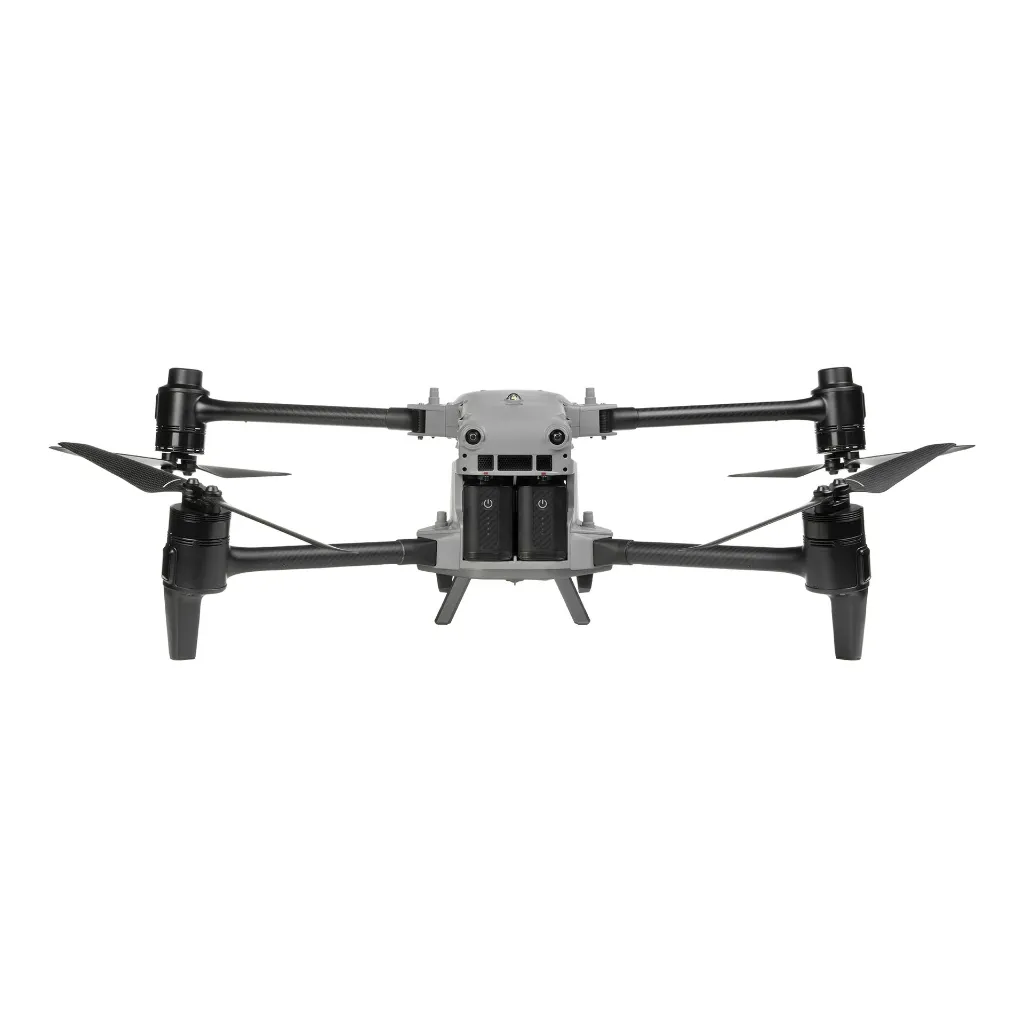

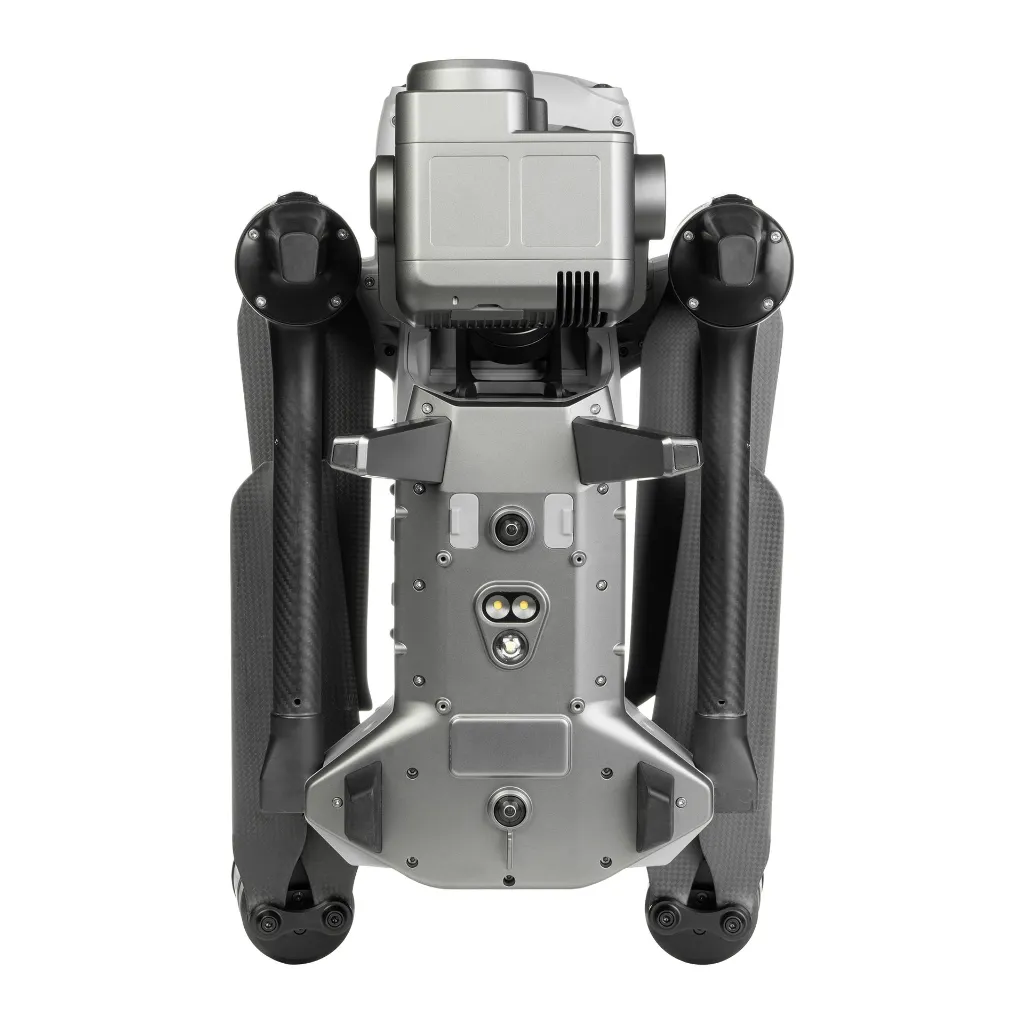

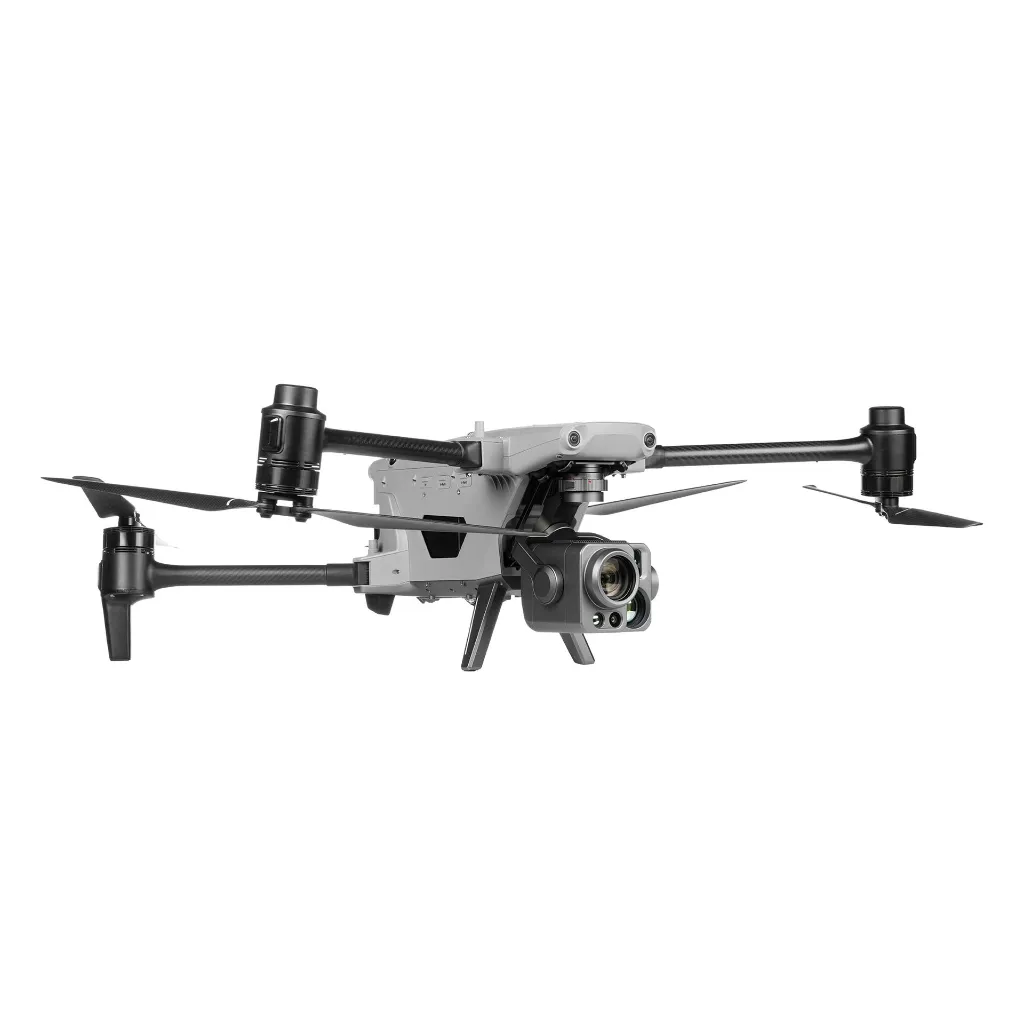

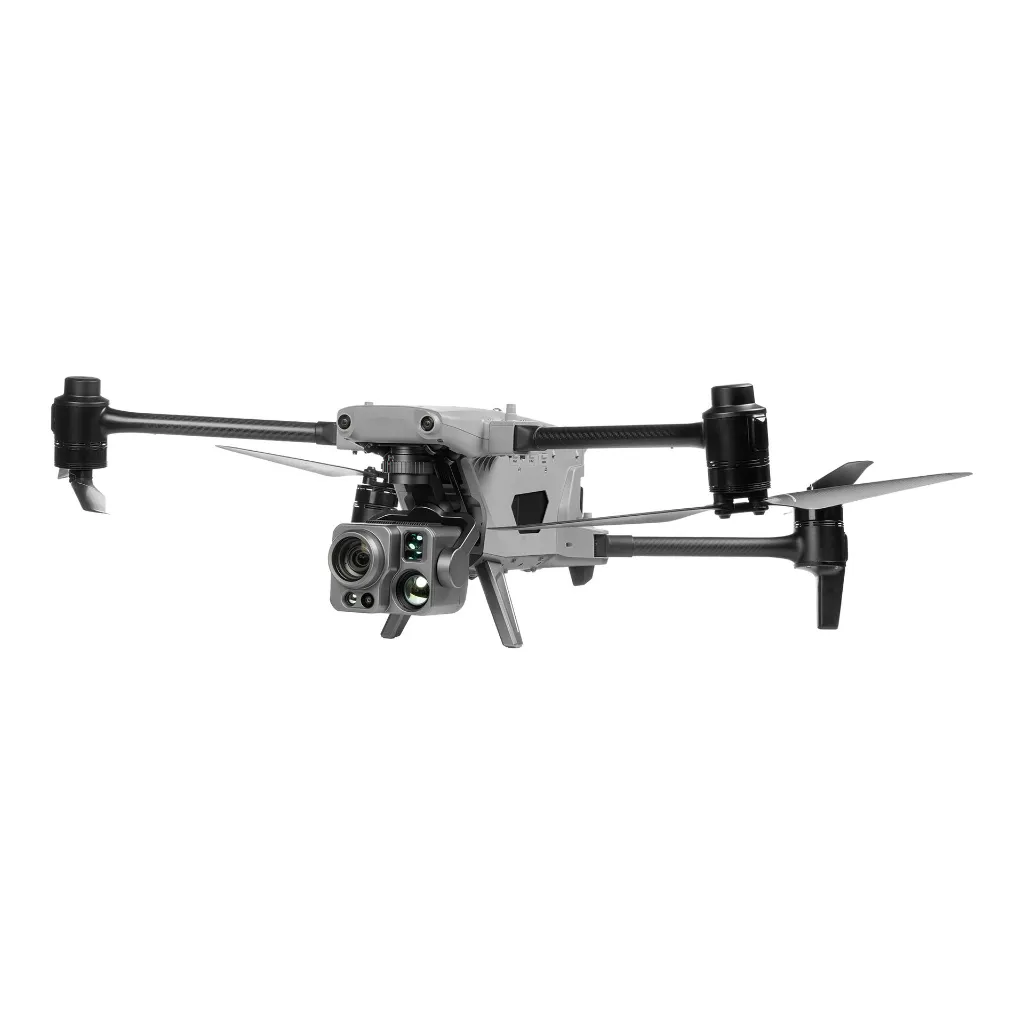

1x Aircraft (battery, propeller set, L35T gimbal, gimbal cover)

1x SD Card 128 GB

1x Manual


1x Rugged case

2x Spare Propeller (pair), one CW and one CCW

4x Propeller Sleeve


1x Smart Battery

1x Battery charger


1x Smart Remote Controller (RC) v3, sticks included

1x RC lanyard

1x RC cover

1x RC spare joystick (pair)

1x RC charger

1x USB-C to USB-A data cable

1x USB-C to USB-C data cable

1x Maintenance Kit (Screwdriver, Cleaner, Soft Brush, Silicone Air Blower, Dampener, 8x Propeller Fastening Screw)




Specifications

Aircraft
Brand Autel
Weight 6480g
Dimensions (unfolded) 1205×980×278mm
Max flight time 40 minutes
Max flight range 30km
IP rating IP55
Drone class C3
Color Gray
Gimbal cameras
Camera 1 8 million pixels, 1.4-35x zoom
Camera 2 48 million pixels, wide angle
Thermal camera 1 640x512, 1-3.5x zoom
Thermal camera 2 640x512, 3.5-56x zoom
Rangefinder 10-2000m
Thermal camera Yes
Night vision No
Accessories
Protector case Yes
Spare components 2 propeller pairs
microSD card size 128 GB
Remote controller
Remote controller display size 7.9"
Others
Type Drone bundel
