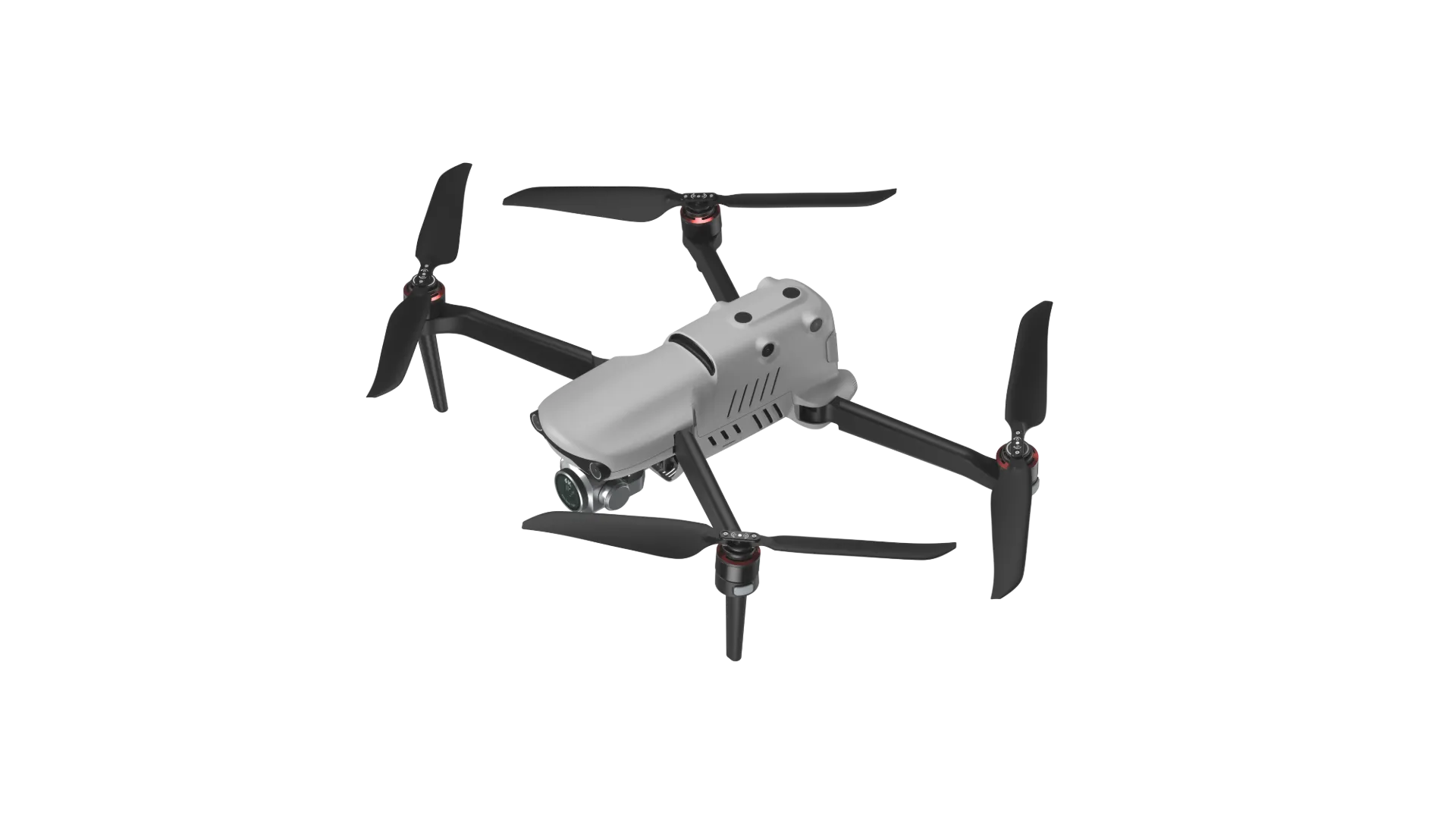

EVO II Pro Rugged Bundle V3

  • Sony's new 20 megapixel 1" CMOS sensor capable of 6k Ultra HD Videos
  • Adjustable aperture range of f2.8 to f11 and a maximum ISO of 44,000
  • 12-bit DNG for post-production flexibility
  • 360° obstacle avoidance with 19 groups of sensors
  • Industry-leading 40 minutes flight time
  • Transmission range of 12KM
  • 6,4" Smart Controller SE.
0.00 € 0.00 € (Tax excluded)

  • Color
  • Brand
  • Weight
  • Dimensions (unfolded)
  • Max flight time
  • Max flight range
  • Camera 1
  • Remote controller display size
  • Protector case
  • Spare components
  • microSD card size
  • Drone class
  • Thermal camera
  • Night vision
  • Type
Add to cart
Contact Us

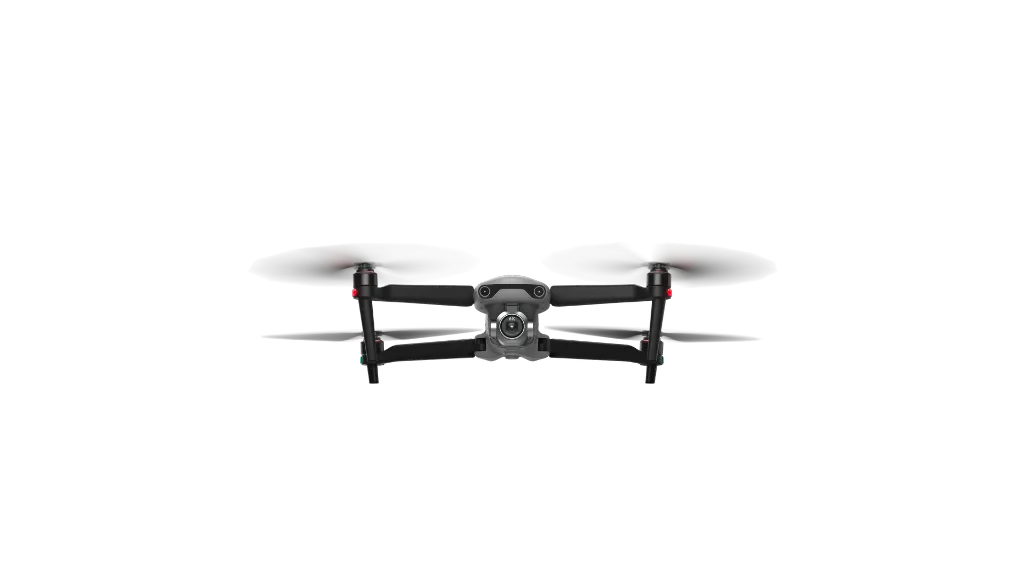

With Sony's new 20 megapixel 1-inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video with greater dynamic range, stronger noise suppression, and higher frame rates. The f/2.8-f/11 adjustable aperture and 44000 maximum ISO gives photographers enhanced creative control.




Weight (With propellers, battery)1191 g
Maximum takeoff weight1270 g (C2)
DimensionsFolded: 230×130×108mm
Unfolded: 457×558×108mm
Max. rotation speed9000 rpm
Wheelbase397 mm
Maximum ascent speedNovice mode:3 m/s
Standard: 5m/s
Ludicrous: 8 m/s
Maximum descent speedNovice mode: 3 m/s
Standard: 3 m/s
Ludicrous: 4 m/s
Maximum horizontal flight speed
(no wind near sea level)		Novice mode: 3 m/s
Standard: 10 m/s
Ludicrous: 20 m/s
Maximum Service Ceiling Above Sea Level5000 meters
Maximum flight altitude800 meters (Altitude limit in the App)
Maximum flight time (no wind)39 minutes
Maximum range25 km
Maximum flight distance (no wind)25 km
Maximum hover time (no wind)35 minutes
Maximum Wind Speed ResistanceTakeoff and Landing Phase: 10.7 m/s
Cruise Phase: 12 m/s
Maximum tilt angleNovice mode: 15°
Standard: 30°
Ludicrous: 33°
Maximum rotation angular speed120°/s
Working temperature-10~40℃
Battery hot replacementnot support
Internal storageOnboard storage: 8GB
GNSSGPS/Galileo/BeiDou/GLONASS
Hover accuracyVertically:
±0.1 meters (when visual positioning is working normally)
±0.5 meters ( when GNSS is working normally)
Horizontally:
±0. 3 meters (when visual positioning is working normally)
± 1.5 meters ( when GNSS is working normally )
Operating Frequency900M: 902 – 928 MHz*
2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz
5.2G: 5.15 - 5.25GHz***
5.8G: 5.725 - 5.829GHz**, 5.725 - 5.850 GHz
* Only applicable to FCC and ISED regions.
**Only applicable to SRRC regions.
***Only applicable to FCC regions.
Note: Some frequencies are only available in some regions or for indoor use only. Check local
laws and regulations for details.
Maximum signal effective distance
(No interference, no obstruction)		FCC: 10 kilometers
CE: 8 kilometers
Effective transmitter power ( EIRP)900M:
≤30dBm (FCC/ISED)
2.4G:
≤30dBm (FCC/ISED), ≤20dBm (CE/SRRC/UKCA)
5.2G:
≤30dBm (FCC)
5.8G:
≤30dBm (FCC/ISED/SRRC), ≤14dBm (CE/UKCA)
Sensing rangeForward: 0.5~18 meters
Effective sensing speed:＜12m/s
Backward: 0.5~16 meters
Effective sensing speed:＜12m/s
Left and right: 0.5~10 meters
Effective sensing speed:＜5m/s
Upward: 0.5~10 meters
Effective sensing speed:＜5m/s
Downward: 0.5~10 meters
Effective sensing speed:＜5m/s
FOVForward and backward:
60° horizontally, 80° vertically
Upward:
65° horizontally, 50° vertically
Left and right:
65° horizontally, 50° vertically
Downward:
100° horizontally, 80° vertically
Effective use of the environmentFront, rear, left and right:The surface has rich texture and sufficient lighting conditions ( ＞15 lux, normal indoor fluorescent lighting environment)
Above: The surface is a diffuse reflection material and the reflectivity is >20% (such as walls, trees, people, etc.)
Below: The ground is richly textured and the lighting conditions are sufficient ( >15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)
Image sensor1 inch CMOS, 20 million pixels
LensField of view: 82°
35 mm format equivalent focal length: 29 mm
Aperture: f/2.8-f/11
Focus distance: 0.5 meter ~ ∞
ISO rangeVideo: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Night scene mode: Maximum video ISO44000
Shutter speedPhoto mode: 1/8000 ~ 8 seconds
Others: 1/8000 ~ 1/frame rate second
Zoom1 - 16x digital zoom (maximum 3x lossless zoom)
Maximum photo size5472×3648 (3:2)
5472×3076 (16:9)
3840×2160 (16:9)
Photo formatJPG (default) /12bits DNG / JPG+12bits DNG
Photo shooting modeSingle shooting (default)/Brust shooting/AEB continuous shooting/time lapse/HDR shooting
Video resolution5472×3076 P30/P25/P24
3840×2160 P60/P50/P48/P30/P25/P24
2720×1528 P60/P50/P48/P30/P25/P24
1920×1080 P120/P60/P50/P48/P30/P25/P24
Video formatMP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video maximum bit rate120Mbps
Support file systemFAT32/exFAT
Mechanical scopePitch: -135° to +45°
Heading: -100° to +100°
Controllable rotation rangePitch: -90° to +30°
Heading: -90° to +90°
Stable systemThree-axis stabilization
Maximum control speed (pitch)300°/s
Angualr vibration range0.005°
MaterialPC+ABS
Dimensions226.3×137.7×31.5 mm (antennas folded)
226.3×215.4×31.5 mm (antennas unfolded)
Weight617 g
Operating Temperature-10℃ to 40℃
Storage Temperature+15℃ ~ +25℃ (within a year)
0℃ ~ +30℃ (within three months)
-20℃ ~ +45℃ (within a month)
Protection RatingIP43
Internal Storage128GB
microSD ExtensionSupported
Operating SystemBased on Android 11
Application InstallationSupports the installation of third-party Android apps
HDMIOutputs up to 1080P@60FPS video
USB-CCharging: supports PD/QC fast charging, up to 65W
USB-AUSB2.0
GNSSGPS+Galileo+BeiDou+GLONASS
Wi-Fi Protocol802.11a/b/g/n/ac
Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835 GHz
5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850 GHz
* Only applicable to SRRC regions.
Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Wi-Fi Effective Isotropic Radiated Power (EIRP)2.4G:
≤30dBm (FCC/ISED), ≤20dBm (CE/SRRC/UKCA)
5.8G:
≤33dBm (FCC/ISED/SRRC), ≤14dBm (CE/UKCA)
BluetoothBluetooth 5.0
Bluetooth Operating Frequency2.400 - 2.4835 GHz
Note: Some regions have designated frequency ranges. Check local laws and regulations for details.
Bluetooth Effective Isotropic Radiated Power (EIRP)≤20dBm
AntennaDual antennas, 1T2R, detachable design
Operating Frequency900M: 902 – 928 MHz*
2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz
5.8G: 5.725 - 5.829GHz**, 5.725 - 5.850 GHz
* Only applicable to FCC and ISED regions.
**Only applicable to SRRC regions.
Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Effective Isotropic Radiated Power (EIRP)900M:
≤30dBm (FCC/ISED)
2.4G:
≤30dBm (FCC/ISED), ≤20dBm (CE/SRRC/UKCA)
5.8G:
≤30dBm (FCC/ISED/SRRC), ≤14dBm (CE/UKCA)
Maximum Transmission Distance
(Without Interference and Blocking)		FCC: 10 km
CE/SRRC: 8 km
TypeTFT LCD
Dimensions6.4 inches
Maximum Brightness800 nits
Resolution2340×1080
Refresh Rate60Hz
Touch ControlSupports 10-point touch




  • 1x Aircraft (battery, propeller set, gimbal, gimbal cover)
  • 1x SD Card 32 GB
  • 1x Battery charger + power cable
  • 1x Manual

  • 1x Protector case
  • 1x Spare Battery
  • 1x Spare Propeller (pair)

  • 1x Remote Controller (RC), sticks included
  • 1x RC charger + charger cable
  • 1x RC lanyard
  • 1x RC spare joystick (pair)

Specifications

Aircraft
Color Gray, Orange
Brand Autel
Weight 1191g
Dimensions (unfolded) 457×558×108mm
Max flight time 39 minutes
Max flight range 25km
Drone class C2
Gimbal cameras
Camera 1 20 million pixels, 1-16x zoom
Thermal camera No
Night vision No
Accessories
Protector case Yes
Spare components 1 battery, 1 propeller pair
microSD card size 32 GB
Remote controller
Remote controller display size 6.4"
Others
Type Drone bundel
