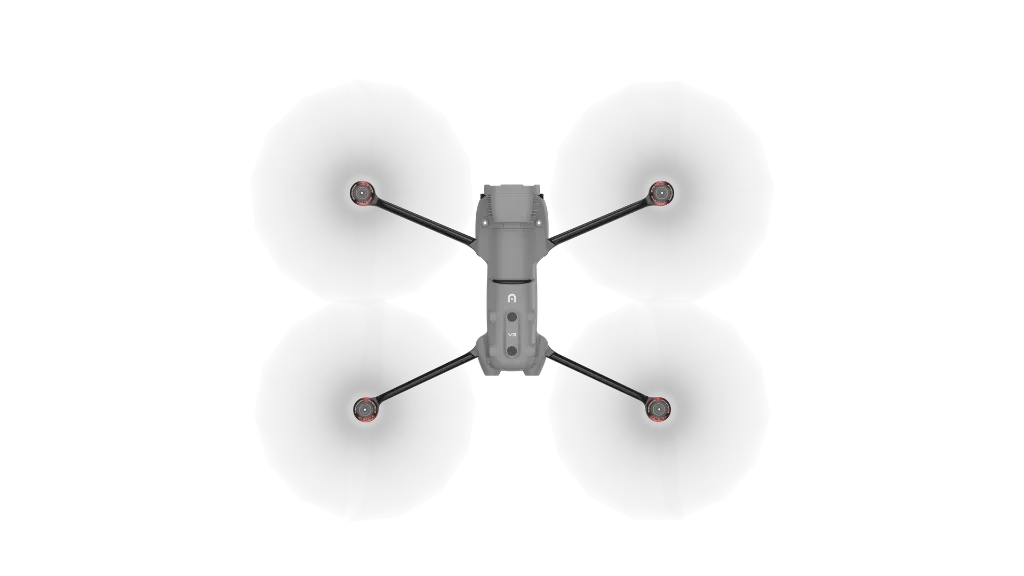

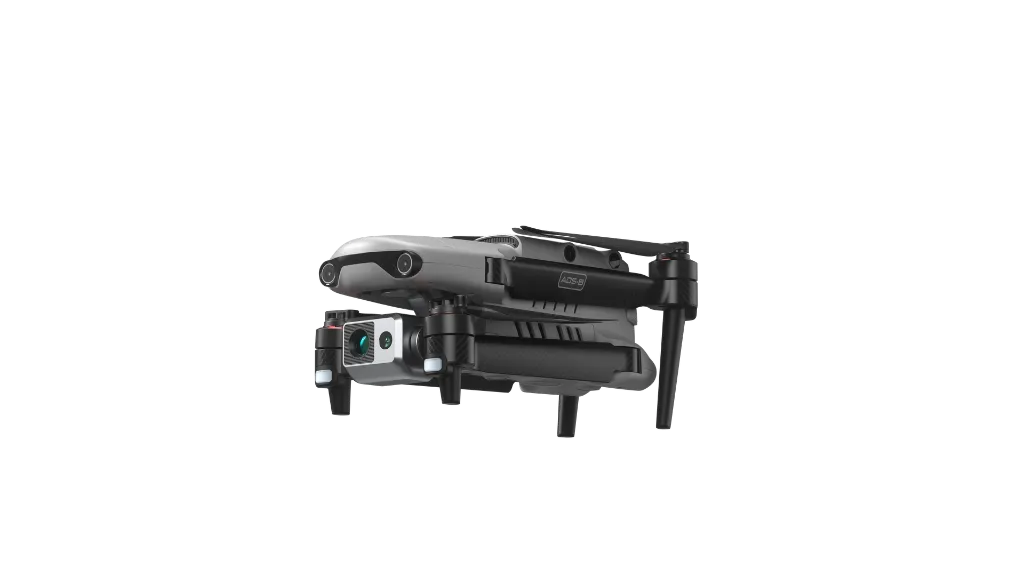

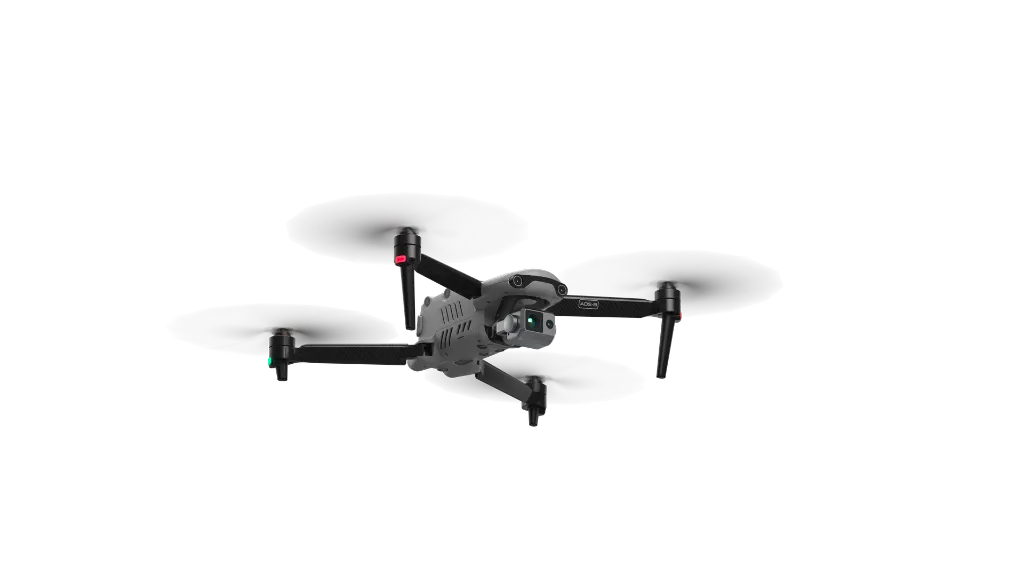

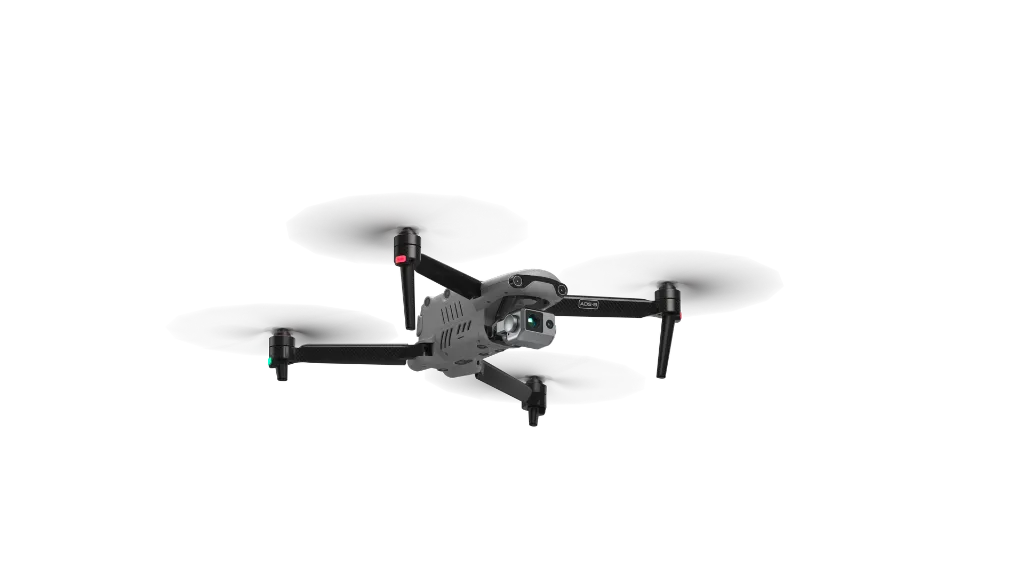

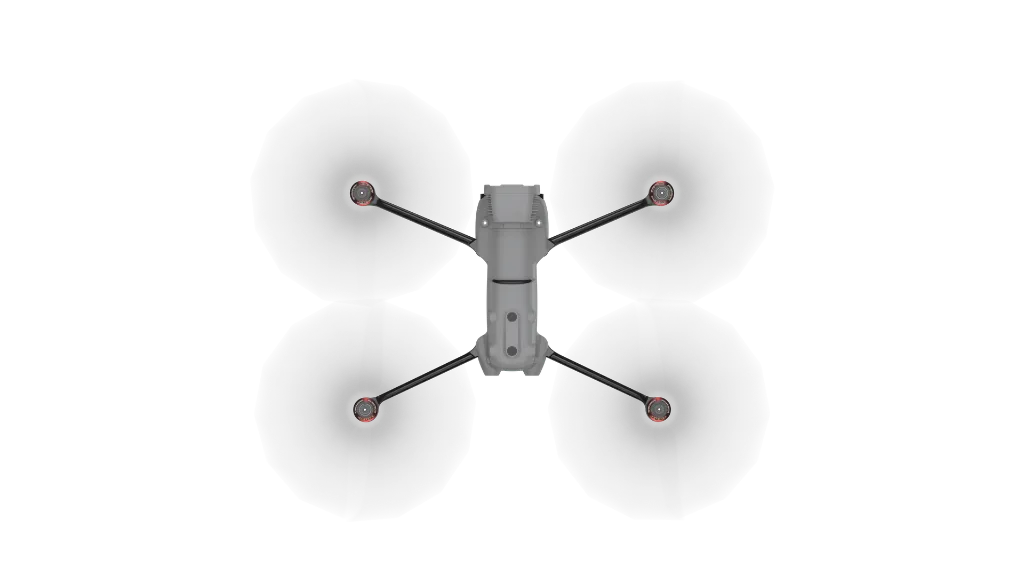

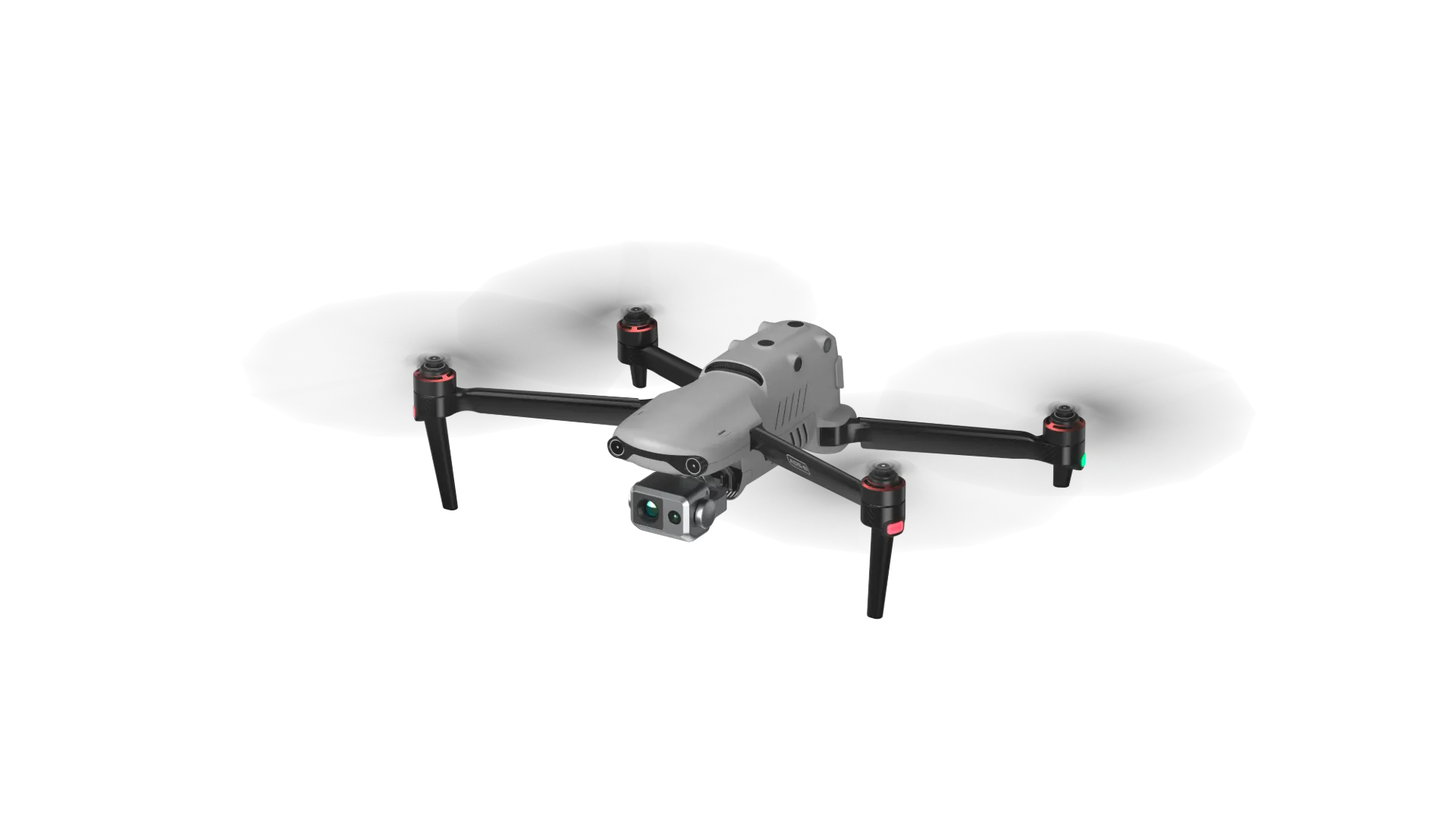

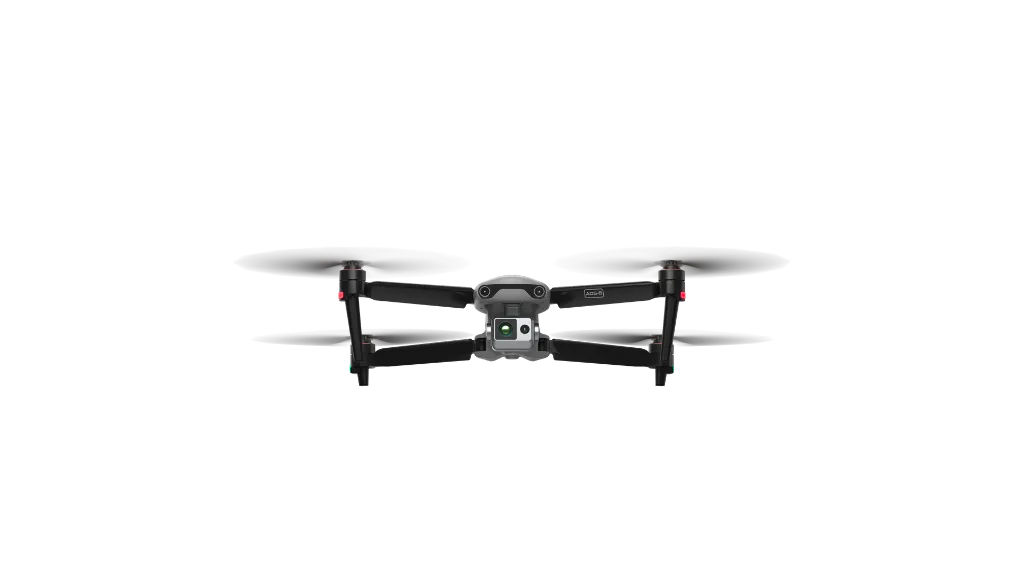

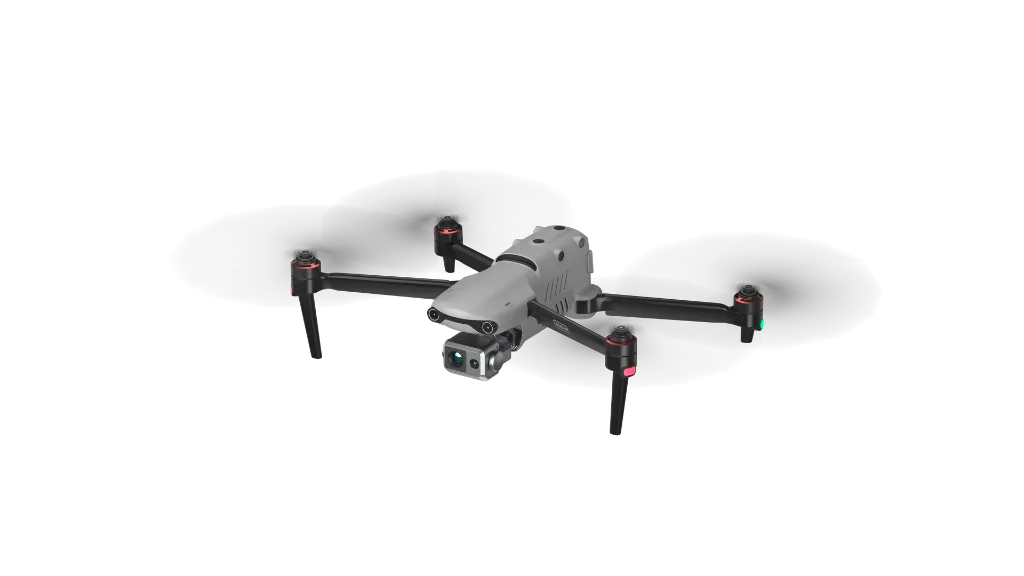

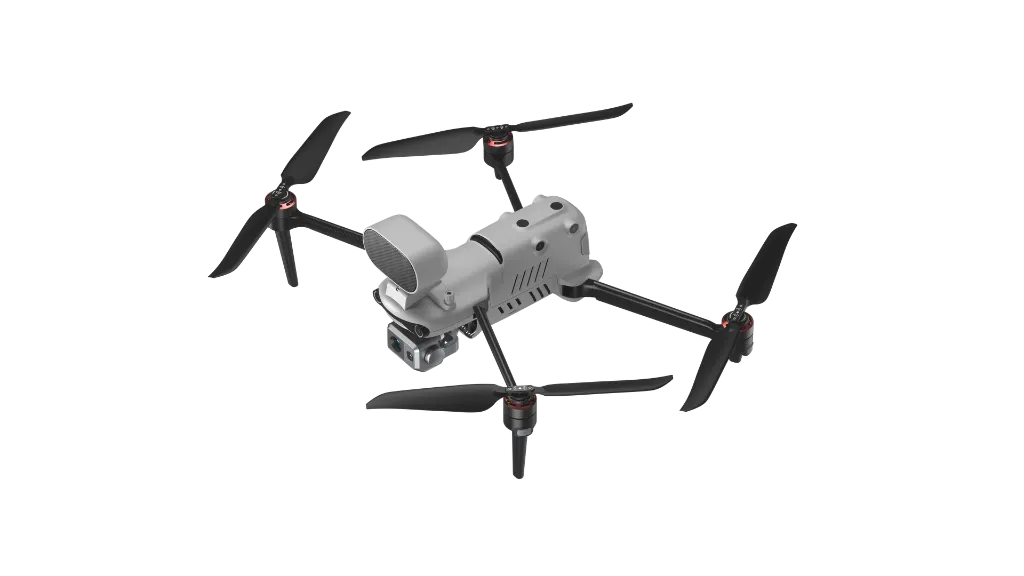

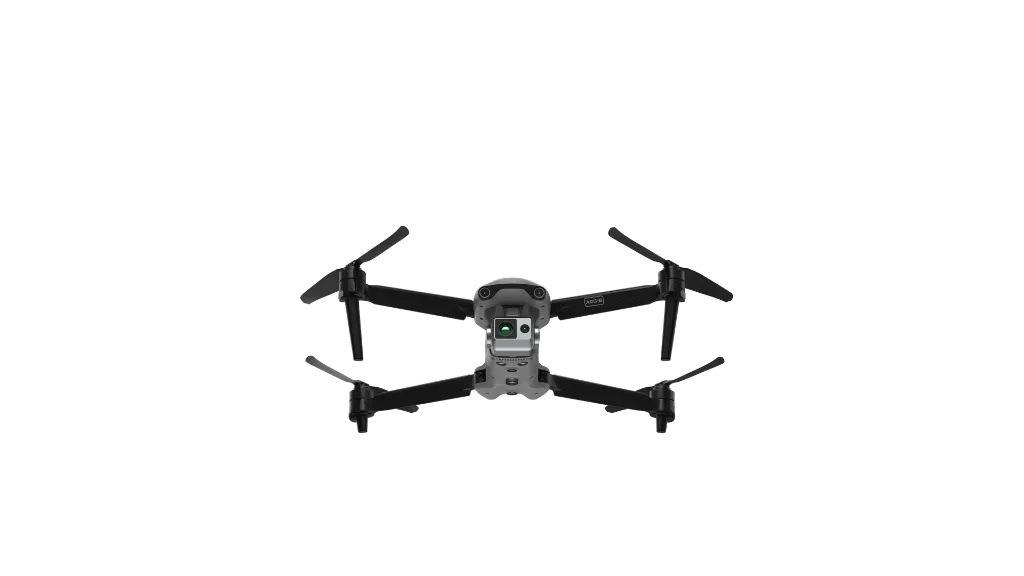

EVO II Dual 640T Enterprise Rugged Bundle V3

  • 20MP 1" CMOS-sensor die in staat is om 6K Ultra HD-video's op te nemen.
  • Instelbaar diafragmabereik van f/2.8 tot f/11.
  • 3x lossless en 16x digitale zoom-mogelijkheid.
  • Met een uitgebreide selectie aan accessoires.
  • 360° obstakelvermijding dankzij 19 groepen sensoren.
  • 7,9" Smart Controller V3.
  • Dynamic Track 2.1 (voor het intelligent volgen van objecten).
  • Toonaangevende vliegtijd van 42 minuten.
  • Transmissiebereik van 15 km (9 mijl).
  • Maximale snelheid van 70 km/u (44 mph).
0.00 € 0.00 € (Tax excluded)

  • Color
  • Brand
  • Weight
  • Dimensions (unfolded)
  • Max flight time
  • Max flight range
  • Camera 1
  • Thermal camera 1
  • Remote controller display size
  • Protector case
  • Spare components
  • Accessories
  • microSD card size
  • Drone class
  • Thermal camera
  • Night vision
  • RTK module
  • Type
Add to cart
Contact Us


An improved high-quality imaging system, upgraded 9.3 miles image transmission range, and additional modular accessories help you meet a variety of use cases including inspection, search and rescue, situation overwatch, and more.




Weight
(With propellers, battery)		EVO II Pro Enterprise V3: 1110 g
EVO II Dual 640T Enterprise V3: 1136.5 g
Maximum takeoff weightEVO II Pro Enterprise V3: 1248 g (C2)
EVO II Dual 640T Enterprise V3: 1248 g (C2)
DimensionsFolded: 245×130×111mm
Unfolded: 506×620×111mm
Max. rotation speed8000 rpm
Wheelbase427 mm
Maximum ascent speedNovice mode:3 m/s
Standard: 5m/s
Ludicrous: 8 m/s
Maximum descent speedNovice mode: 3 m/s
Standard: 3 m/s
Ludicrous: 4 m/s
Maximum horizontal flight speed
(no wind near sea level)		Novice mode: 3 m/s
Standard: 10 m/s
Ludicrous: 20 m/s
Maximum Service Ceiling Above Sea Level5000 meters
Maximum flight Altitude800 meters (Altitude limit in the App)
Maximum flight time (no wind)42 minutes
Maximum range25 km
Maximum hover time (no wind)38 min（with strobe）
29 min（with spotlight）
34 min（with loudspeaker）
36 min（with RTK module）
Maximum Wind Speed ResistanceTakeoff and Landing Phase: 10.7 m/s
Cruise Phase: 12 m/s
Maximum tilt angleNovice mode: 15°
Standard: 30°
Ludicrous: 33°
Maximum rotation angular speed120°/s
Working temperature-10~40℃
Battery hot replacementnot support
Internal storageOnboard storage: 8GB
Airborne perceptionADS-B receiver. UAT and 1090ES are supported
GNSSGPS/Galileo/BeiDou/GLONASS
Hover accuracyVertically:
±0.1 meters (when visual positioning is working normally)
±0.5 meters ( when GNSS is working normally)
±0.1 meters (when RTK module is enabled)
Horizontally:
±0. 3 meters (when visual positioning is working normally)
± 1.5 meters ( when GNSS is working normally )
±0.1 meters (when RTK module is enabled)
Operating Frequency900M: 902 – 928 MHz*
2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz
5.2G: 5.15-5.25GHz***
5.8G: 5.725 - 5.829GHz**, 5.725 - 5.850 GHz
* Only applicable to FCC and ISED regions.
**Only applicable to SRRC regions.
***Only applicable to FCC regions.
Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Maximum signal effective distance
(No interference, no obstruction)		FCC: 10 kilometers
CE: 8 kilometers
Effective transmitter power ( EIRP)900M:
≤30dBm (FCC/ISED)
2.4G:
≤30dBm ( FCC/ISED ), ≤20dBm (CE/SRRC/UKCA),
5.2G:
≤30dBm (FCC)
5.8G:
≤33dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA )
Sensing rangeForward: 0.5~18 meters
Effective sensing speed:＜12m/s
Backward: 0.5~16 meters
Effective sensing speed:＜12m/s
Left and right: 0.5~10 meters
Effective sensing speed:＜5m/s
Upward: 0.5~10 meters
Effective sensing speed:＜5m/s
Downward: 0.5~10 meters
Effective sensing speed:＜5m/s
FOVForward and backward:
60° horizontally, 80° vertically
Upward:
65° horizontally, 50° vertically
Left and right:
65° horizontally, 50° vertically
Downward:
100° horizontally, 80° vertically
Effective use of the environmentFront, rear, left and right:The surface has rich texture and sufficient lighting conditions ( >15 lux, normal indoor fluorescent lighting environment)
Above: The surface is a diffuse reflection material and the reflectivity is >20% (such as walls, trees, people, etc.)
Below: The ground is richly textured and the lighting conditions are sufficient ( >15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)
Strobe (beacons)Dimensions：39×72×34 mm
Weight：19.5 g
Connections：Floating Connectors
Power：Avg. 1.6W
Controllable Range：5000 m
Light intensity：Min 50cd；Max 486cd；Avg. 290cd
LoudspeakerDimensions：46×80×77 mm
Weight：98.5 g
Connections：Floating Connectors
Power：Max 18W
Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m；
Max Bitrate：36kbps
Adjustable Angle Range：0°~45°
SpotlightDimensions：48.5×72×63 mm
Weight：77 g
Connections：Floating Connectors
Power：Max 35W
Controllable Range：30 m
Adjustable Angle Range：0°~90°
Illuminance：FOV14°, Max：11lux @ 30m Straight
RTK module (optional)Dimensions：55.5×72.5×57 mm
Weight：59.5 g
Connections：Floating Connectors
Power：~ 3W
RTK Positioning Precision：
1.5 cm + 1 ppm（(Vertical）
1 cm + 1 ppm（Horizontal）
Image sensor1/1.28 inch CMOS, 50 million pixels
LensField of view: 85°
35 mm format equivalent focal length: 23 mm
Aperture: f/1.9
Focus distance: 0.5 meter ~ ∞
ISO rangeVideo: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Shutter speedPhoto mode: 1/8000 ~ 8 seconds
Others: 1/8000 ~ 1/30 second
Zoom1 - 16x digital zoom (maximum 4x lossless zoom)
Maximum photo size8192×6144（4:3）
4096×3072（4:3）
3840×2160（16:9）
Photo formatJPG (default) / RAW / JPG+RAW
Photo shooting modeSingle shooting (default)/Brust shooting/AEB continuous shooting/time lapse/HDR shooting
Video resolution3840×2160 P60/P50/P48/P30(Default)/P25/P24
2720×1528 P60/P50/P48/P30/P25/P24
1920×1080 P120/P60/P50/P48/P30/P25/P24
Video formatMP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video maximum bit rate60Mbps
Support file systemFAT32/exFAT
Image sensor1/2 inch CMOS, 12 million pixels
LensDFOV: 84°
Effective Focal Length: 7 mm
35mm Equivalent Focal Length: 24 mm
Aperture: F2.8
AF Type: FF
Manual Focus Distance: 1.5 m ~ ∞ (Fixed Focus)
ISO rangeVideo: ISO100 ~ ISO6400
Photo: ISO100 ~ ISO6400
Shutter speedPhoto: 0.5s ~ 1/8000s
Video: 1/30s ~ 1/8000s
Zoom1 - 16x digital zoom (maximum 4x lossless zoom)
photo size4000×3000
Photo formatJPG/DNG
Video resolution3840×2160 P30
Night Mode：3840×2160 P30
Video formatMP4
SensorUncooled VOx Microbolometer
LensFOV H33°V26°
Focal length 13mm
Zoom1-16x
Pixel size12μm
Wavelength range8 - 14μm
Temperature rangeHigh gain mode: -20° to +150°
Low gain mode: 0° to +550°
Temperature measurement accuracy±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃
Accurate temperature measurement distance2-20 meters
Video resolution640x512@25fps
Video formatMOV / MP4 (Support H.264/H.265)
Camera resolutionInfrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720
Photo formatJPG + TIFF
Mechanical scopePitch: -135° to +45°
Roll：-45° to +45° Heading: -100° to +100°
Controllable rotation rangePitch: -90° to +30°
Stable systemThree-axis stabilization
Maximum control speed (pitch)100°/s
Angualr vibration range＜0.005°
MaterialPC+ABS
Dimensions269×189×87 mm (antennas folded horizontally)
269×189×173 mm (antennas folded vertically)
269×302×87 mm (antennas unfolded horizontally)
Weight1194 g (protective case excluded)
1365 g (protective case included)
Operating Temperature-20°C to 40°C
Storage Temperature+15°C ~ +25°C (within a year)
0°C ~ +30°C (within three months)
-20°C ~ +45°C (within a month)
Protection RatingIP43
Internal Storage128GB
microSD ExtensionNot supported
Operating SystemBased on Android 11
Application InstallationSupports the installation of third-party Android apps
Video Performance4K@24FPS H.264/H.265 video smooth play
HDMIOutputs up to 1080P@60FPS video
USB-CCharging: supports PD 60W fast charging and QC 18W fast charging.
Data: USB3.1 Gen2
USB-ACharging: 5V/2A
Data: USB2.0
GNSSGPS+Galileo+BeiDou+GLONASS
Wi-Fi Protocol802.11a/b/g/n/ac
Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz*, 5.725-5.850GHz
*Only applies to SRRC region
Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Wi-Fi Effective Isotropic Radiated Power (EIRP)2.4G:
≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA）
5.8G:
≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）
BluetoothBluetooth 5.0
Bluetooth Operating Frequency2.400 - 2.4835 GHz
Note: Some frequencies are specified in some regions. For details, please refer to local laws and regulations.
Bluetooth Effective Isotropic Radiated Power (EIRP)≤20dBm
AntennaDual antennas, 1T2R, detachable design
Operating Frequency900M: 902-928MHz*
2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz**, 5.725-5.850GHz
* Only applicable to FCC and ISED regions.
** Only applicable to SRRC region.
Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power (EIRP)900M:
≤30dBm(FCC/ISED)
2.4G:
≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.8G:
≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA）
Maximum Transmission Distance
(Without Interference and Blocking)		FCC: 15 km
CE/SRRC: 8 km
TypeTFT LCD
Dimensions7.9 inches
Maximum Brightness2000 nits
Resolution2048×1536
Refresh Rate60Hz
Touch ControlSupports 10-point touch
Battery TypeLi-Po 3S
Rated Capacity5800 mAh
Voltage11.55V
Battery Energy67 Wh
Charging TimeAbout 120 minutes
Battery Endurance2.5 hours (Max brightness)
4.0 hours (50% brightness)
Battery ReplacementNot supported
Operating Temperature0~+45℃
Battery TypeLiPo 3S
Rated Capacity7100 mAh
Battery energy82 Wh
Voltage11.55 V
Charging Voltage Limit13.2V
Rated Charging Power66W
Maximum charging power93W
Weight365g
Battery charging temperature+5-+45℃
(When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.)
Ideal storage environment+ 22℃ ~ +28℃
Storage temperature and humidity- 10℃ ~ +30℃, 65 ± 20%RH
Power input100-240V ~ 50/60 Hz, 1.5 A
Output portBattery charging interface/USB-A
Battery charging interface13.2V~5A
USB charging port5V~3A, 9V~2A, 12V~1.5A
Rated power66W Max

1x Aircraft (battery, propeller set, gimbal, gimbal cover)

1x SD Card 32 GB

1x Battery charger + power cable

1x Manual


1x Protector case

2x Spare Battery

2x Spare Propeller (pair)


1x Speaker

1x Spotlight

1x Beacon

1x Car charger

1x Multi-charger


1x Remote Controller (RC), sticks included

1x RC charger + charger cable

1x RC lanyard

1x RC protective case

1x RC spare joystick (pair)

1x Extended port cover

Specifications

Aircraft
Color Gray, Orange
Brand Autel
Weight 1137g
Dimensions (unfolded) 506×620×111mm
Max flight time 42 minutes
Max flight range 25km
Drone class C2
Gimbal cameras
Camera 1 50 million pixels, 1-16x zoom
Thermal camera 1 640x512, 1-16x zoom
Thermal camera Yes
Night vision No
Accessories
Protector case Yes
Spare components 2 batteries, 2x propeller pair
Accessories Speaker, spotlight, beacon, car charger, multi-charger
microSD card size 32 GB
Remote controller
Remote controller display size 7.9"
Others
RTK module Optional
Type Drone bundel
