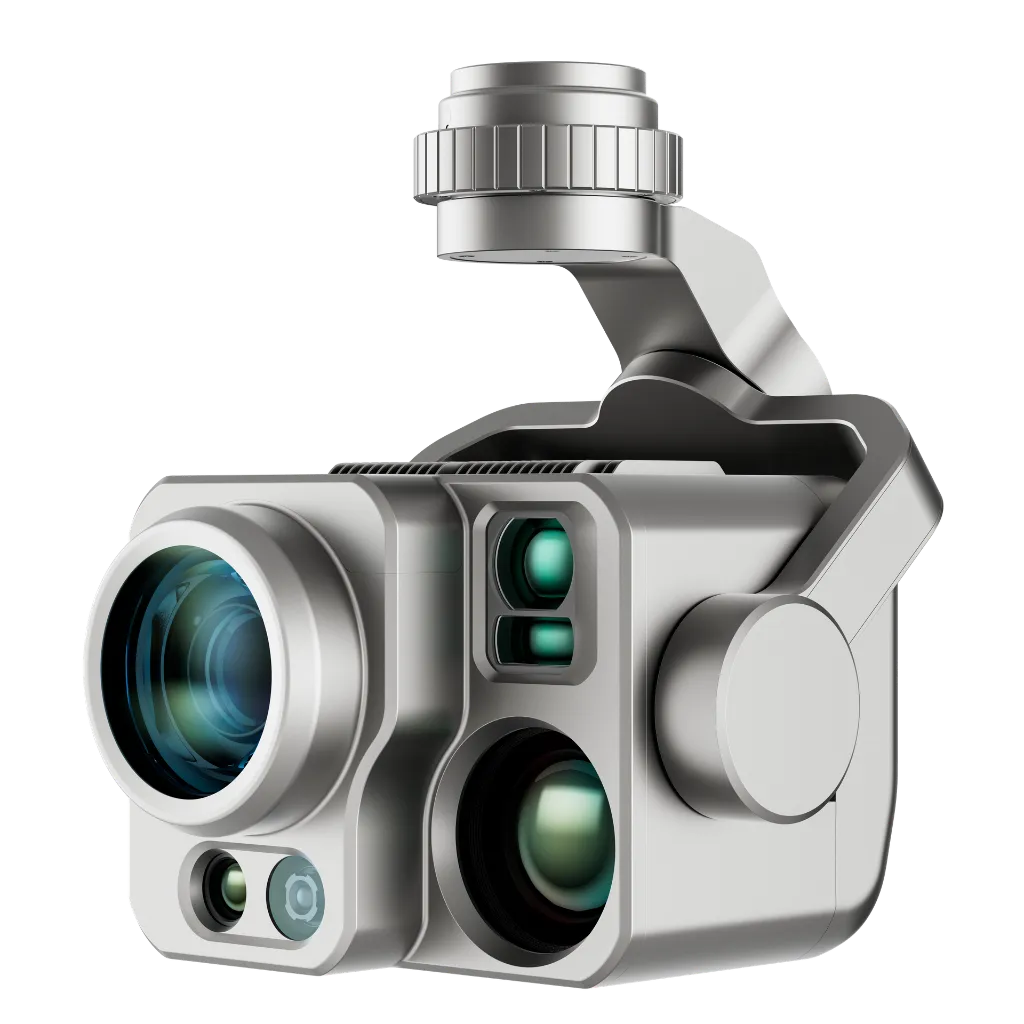

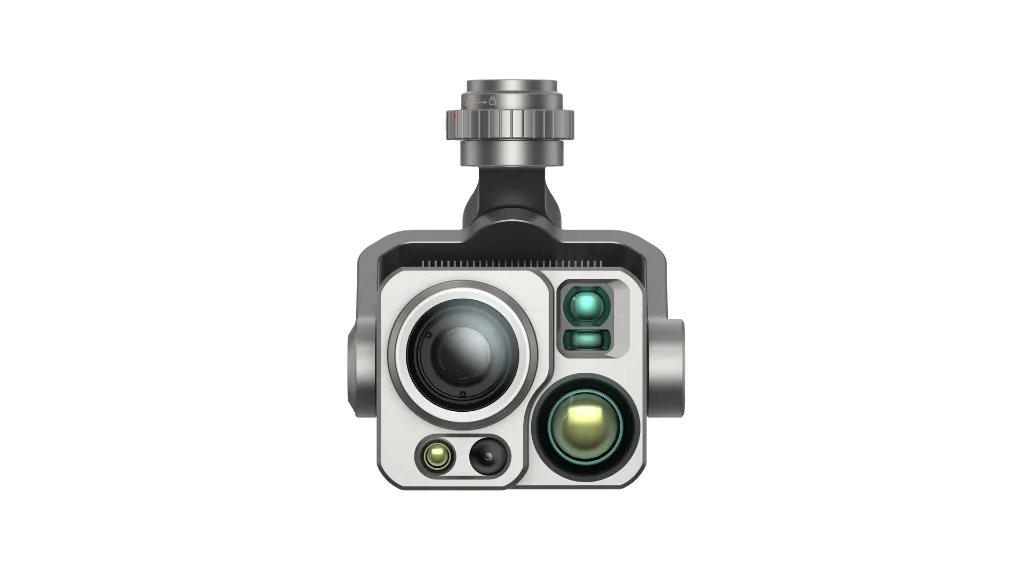

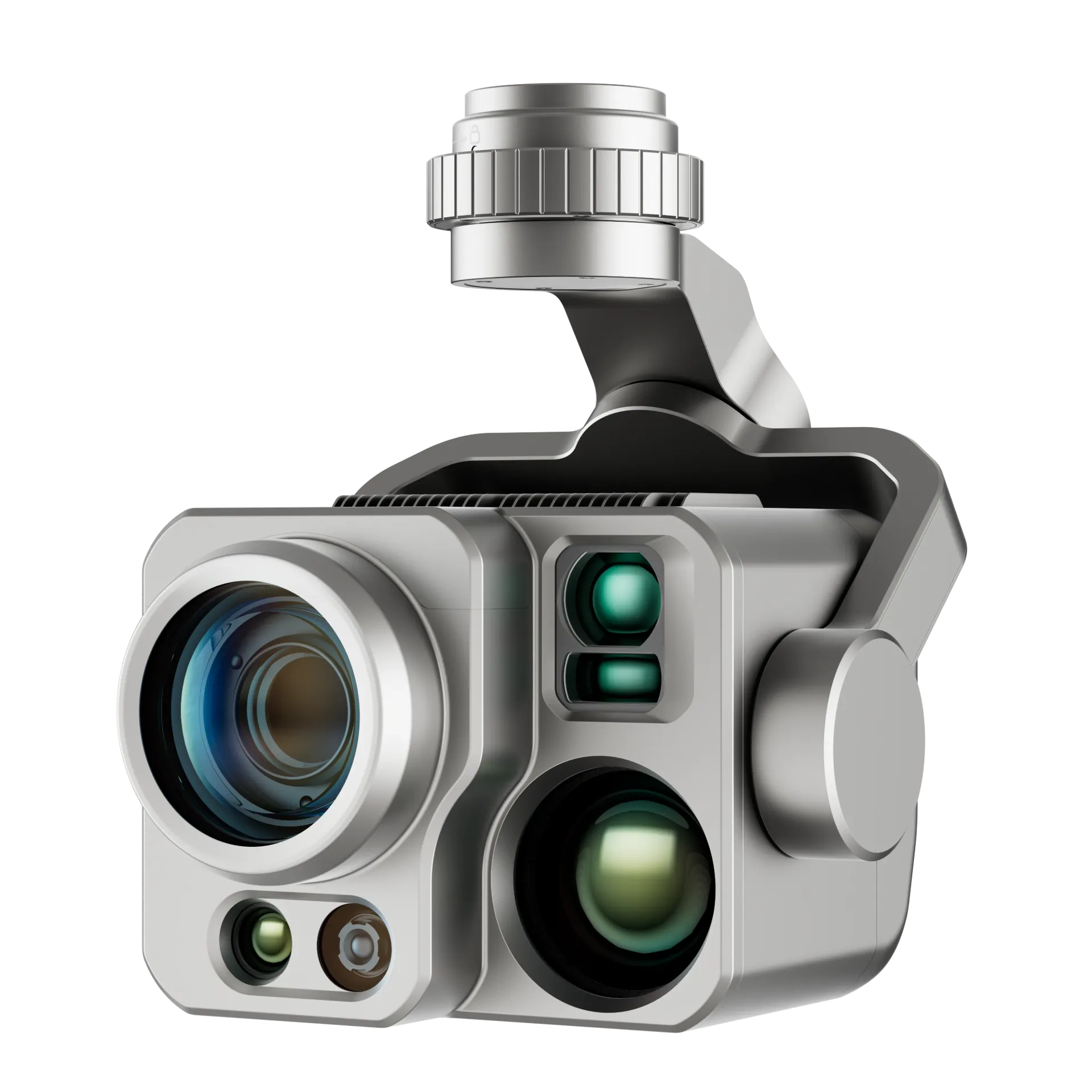

DG-L35T Gimbal

The next-gen DG-L35T gimbal integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.


0.00 € 0.00 € (Tax excluded)

  • Brand
  • Type
Add to cart
Contact Us


Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), 4K 35x Optical Zoom Camera, a wide angle camera and a laser rangefinder.




Dimension144.7×133.3×158.4 mm
Weight920g
IP RatingIP55
InstallationDetachable (E-shape design)
Operating Temperature-20℃ to +50℃
Storage Temperature-30℃ to +70℃
Data StorageSupport microSD
Max. Expandable Memory256GB
Recommended Memory Card ListUHS-I Speed Class U3 or V30, minimum write speed 30MB/s
Mechanical RangerPitch: -135° to 45°
Roll: -60° to 60°
Yaw: -90° to 90°
Controllable RangePitch: -90° to 30°
Stable system3-axis mechanical gimbal (pitch, yaw, roll)
Max Control Speed (pitch)100°/s
Angular Vibration Range＜0.005°
Image Sensor1/1.8" CMOS. Effective pixels: 8M
LensFocal length: 7.1 - 171.95 mm±5%
35 mm equivalent focal length: 34.7 - 838 mm
Aperture: f/1.61(Wide)- f/5.19(Tele)±5%
Focusing distance: 10 m ~ ∞
ISO RangeNormal mode
ISO100 - ISO25600
Super Night
ISO100 – ISO160000
Shutter SpeedPhoto: 0.5s ~ 1/8000s
Video: 1/30s ~ 1/8000s
Exposure Compensation±3.0 (1/3 increments)
Digital Zoom1.4 - 35x continuous optical zoom, 35-560x digital zoom
IR-CUTDefault Setting: Auto - Disabled during daytime, activated during nighttime.
Manual Activation: Turn on IR-CUT - Display in Black and White.
Manual Deactivation: Turn off IR-CUT - Display in Color.
Max Photo Resolution3840×2160
Photo FormatJPG
Photo Taking ModeAuto
Video Resolution3840×2160 30P
Video FormatMP4
Max Bit Rate30Mbps
Supported File SystemsexFAT/Fat32
Image Sensor1/2" CMOS. Effective pixels: 48M
LensFocal length: 4.49 mm
Equivalent focal length: 24 mm
Aperture: f/2.8
ISO RangeAuto:
ISO100 - ISO3200
Shutter SpeedPhoto: 0.5s ~ 1/8000s
Video: 1/30s ~ 1/8000s
Photo Size4000×3000
Photo FormatJPG
Photo Taking ModeAuto
Video Resolution4000×3000 25P
Video FormatMP4
Max Bit Rate30Mbps
Supported File SystemsexFAT/Fat32
Image SensorUncooled VOx Microbolometer
LensFOV: 42°
Focal length: 13 mm
Aperture: f/1.2
Focusing distance: 6 m ~ ∞
Sensitivity≤50mK@f/1.0, 25°C
Pixel Pitch12um
Wavelength8 - 14um
Radiometric Measurement MethodCenter measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy5-meter distance test in a windless laboratory environment at 25°C: ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature Measurement Distance5 m
Digital Zoom1-3.5x wide angle digital zoom
Temperature AlertHigh and low temperature alarm thresholds, Reporting coordinates and temperature values
PaletteWhite Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size640×512
Photo FormatJPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Photo Taking ModeAuto
Video Resolution640×512@25FPS
Video FormatMP4
Image SensorUncooled VOx Microbolometer
LensFOV: 12.3°
Focal length: 45 mm
Aperture: f/1.2
Focusing distance: 35 m ~ ∞
Sensitivity≤50mK@f/1.0, 25°C
Pixel Pitch12um
Wavelength8 - 14um
Radiometric Measurement MethodCenter measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy35-meter distance test in a windless laboratory environment at 25°C: ±5°C or reading ±5% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature Measurement Distance35 m
Digital Zoom3.5-56x tele digital zoom
Temperature AlertHigh and low temperature alarm thresholds, Reporting coordinates and temperature values
PaletteWhite Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size640×512
Photo FormatJPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Photo Taking ModeAuto
Video Resolution640×512@25FPS
Video FormatMP4
Wavelength905 nm
Measurement Accuracy＜400m: +1m, >400m: D×0.3%
where D is the distance to a vertical reflecting plane
Measuring Range10 - 2000 m



Specifications

Aircraft
Brand Autel
Others
Type Gimbals
