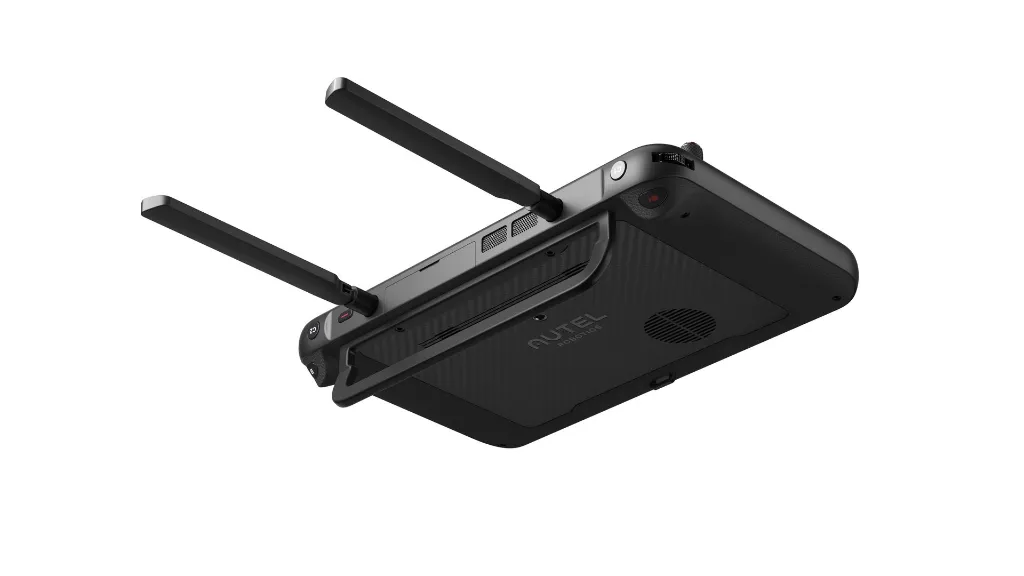

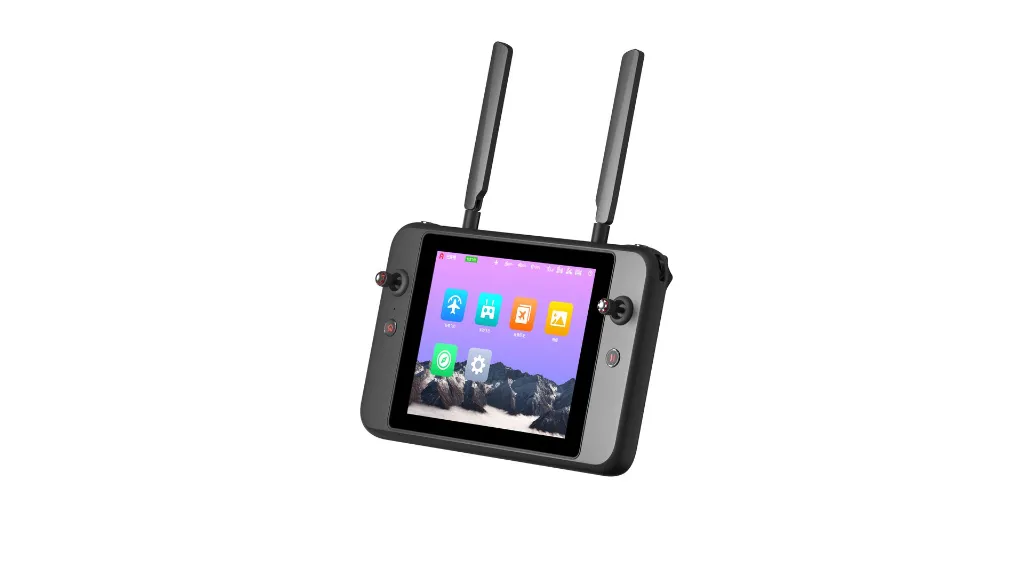

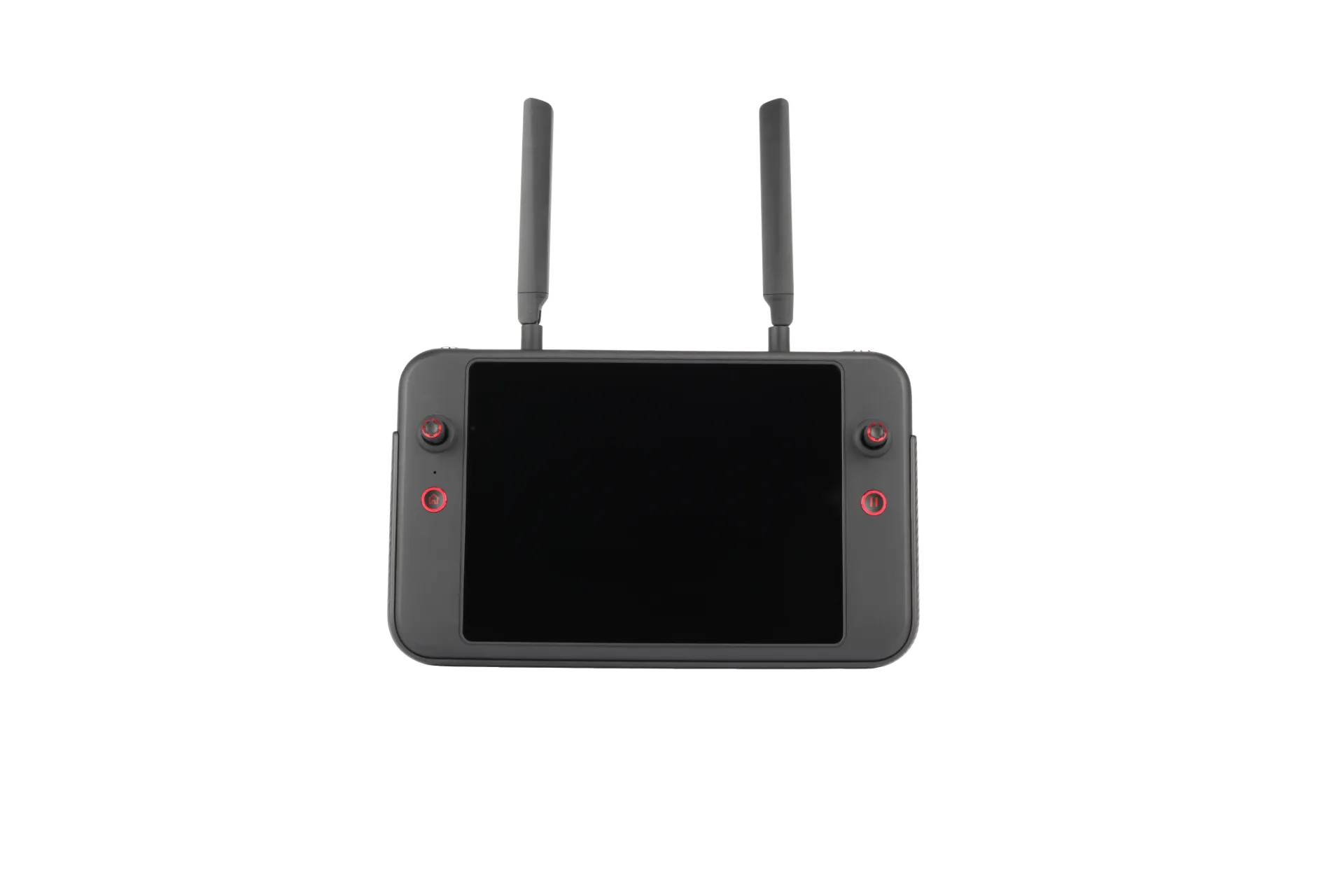

Autel Smart Controller v3

  • Super-Bright 7.9" Screen
  • -20°C to 40°C Working Temperature
  • 4h Ultra-Long Battery Life
  • 128GB Internal Memory
  • 8-Core Processor
0.00 € 0.00 € (Tax excluded)

  • Type
Add to cart
Contact Us

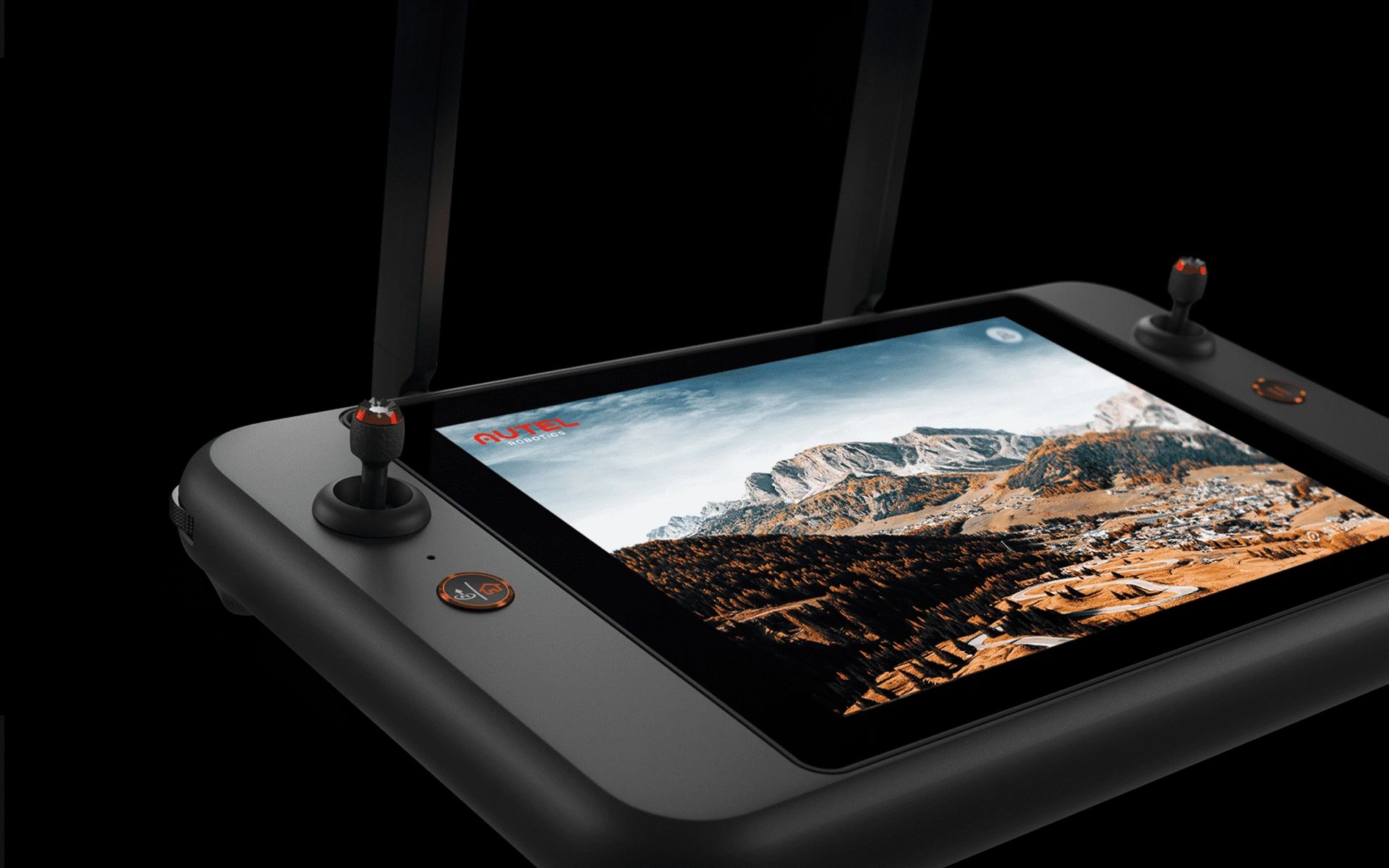

Supersharp, High Brightness Display

Smart Controller V3's built-in display at 2000nits is 4 times brighter than a conventional cell phone screen and the 7.9 inch Ultra-HD (2048x1536) touch screen provides clear visibility under direct sunlight. Integrated true tone technology dynamically adjusts the white balance of the display, delivering the best viewing experience for the pilot in any lighting environment.


AntennaDual antennas, 1T2R, detachable design
Operating Frequency900M: 902-928MHz*
2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz**, 5.725-5.850GHz
* Only applicable to FCC and ISED regions.
** Only applicable to SRRC region.
Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Maximum Transmission Distance
(Without Interference and Blocking)		FCC: 15 km
CE/SRRC: 8 km
Effective Isotropic Radiated Power (EIRP)900M:
≤30dBm(FCC/ISED)
2.4G:
≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.8G:
≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA）
Wi-Fi Protocol802.11a/b/g/n/ac
Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz*, 5.725-5.850GHz
*Only applies to SRRC region
Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Wi-Fi Effective Isotropic Radiated Power (EIRP)2.4G:
≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA）
5.8G:
≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）
ProtocolBluetooth 5.0
Bluetooth Operating Frequency2.400 - 2.4835 GHz
Bluetooth Effective Isotropic Radiated Power (EIRP)≤20dBm
Resolution2048×1536
Dimensions7.9inches
Frame Rate60Hz
Max. Brightness2000nits
Touch Screen10-point multi-touch
TypeLi-po 3S
Rated Capacity5800mAh
Nominal Voltage11.55V
Energy67Wh
Operating Time2.5 hours (Max. Brightness)
4 hours (50% Brightness)
Charging TimeAbout 120 minutes
Charging Temperature5℃ to 45℃（41℉ to 113℉）

Internal StorageROM 128GB
Video Output PortHDMI
USB-ACharging: 5V/2A
Data: USB2.0
Operating Temperature-20°C to 40°C
Storage Temperature+15°C ~ +25°C (within a year)
0°C ~ +30°C (within three months)
-20°C ~ +45°C (within a month)
Protection RatingIP43
Dimensions269×189×66 mm (antennas folded)
269×302×87 mm (antennas unfolded)
Weight2.63 lbs / 1194g (without protective case)
3 lbs /  1365g(with protective case)
GNSSGPS+Galileo+BeiDou+GLONASS


Specifications

Type Remote controllers
