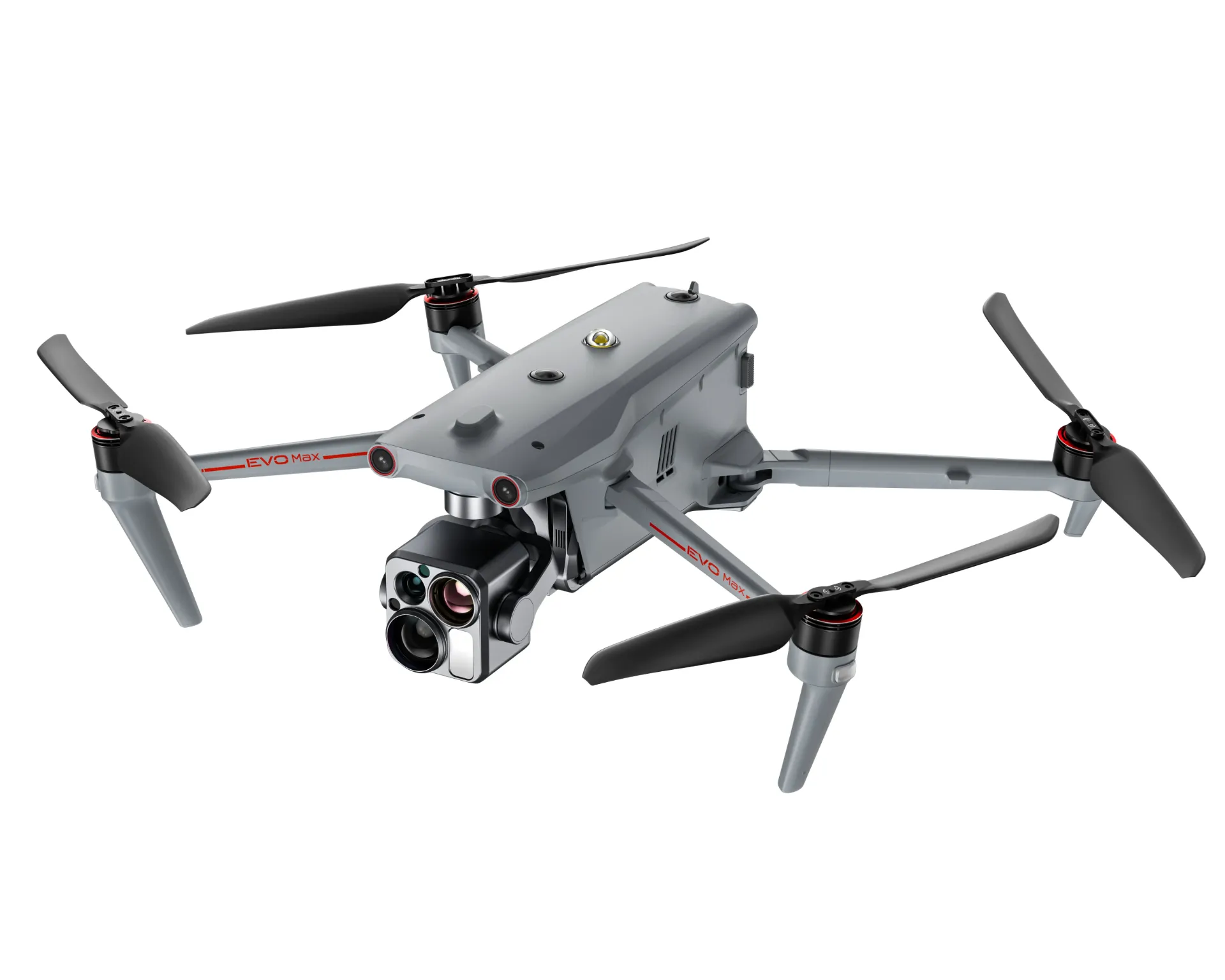

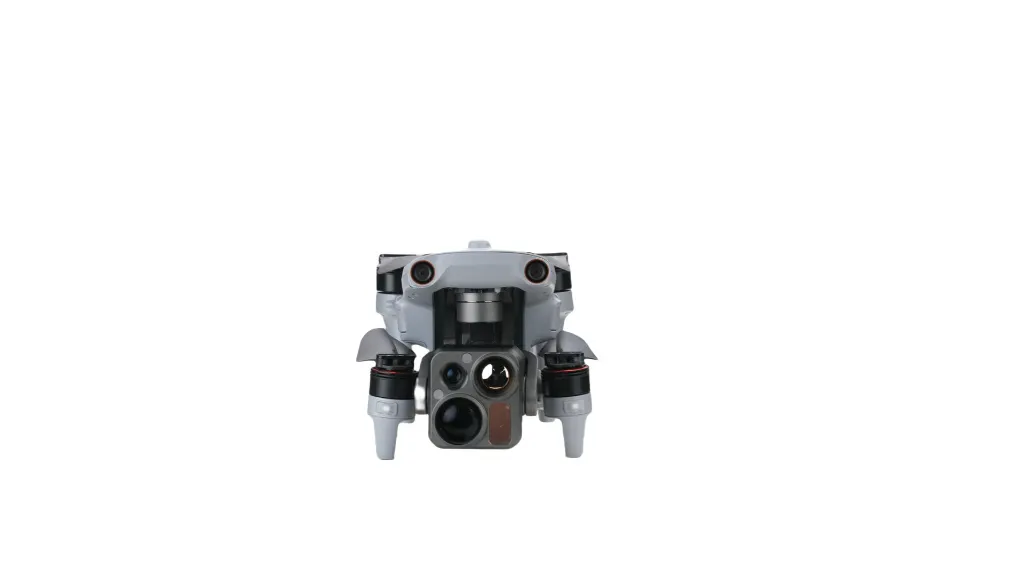

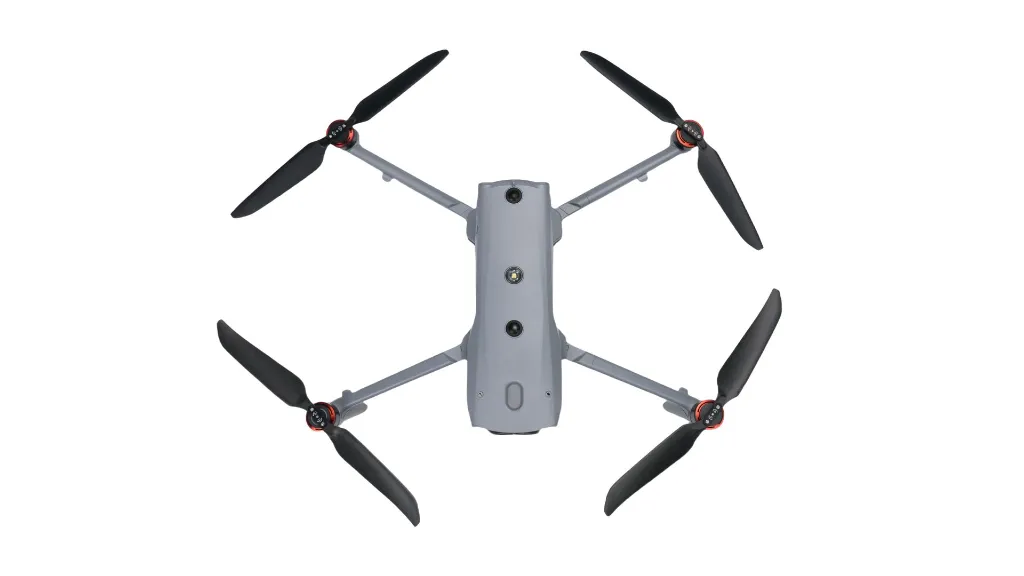

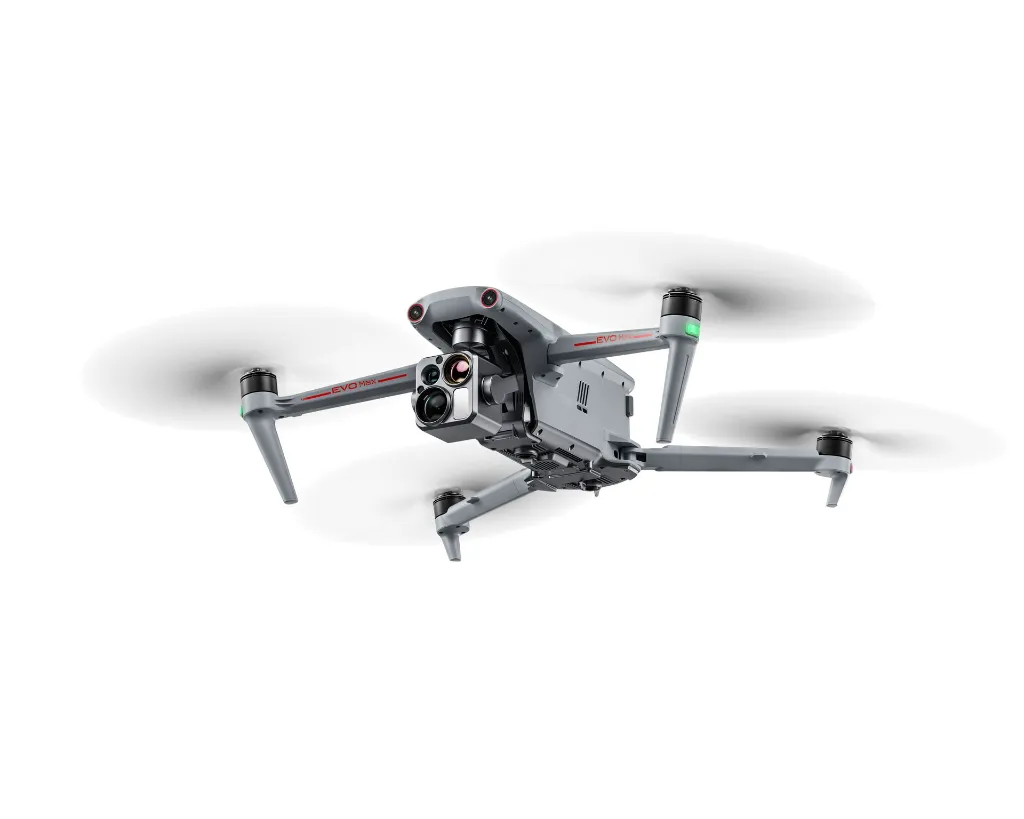

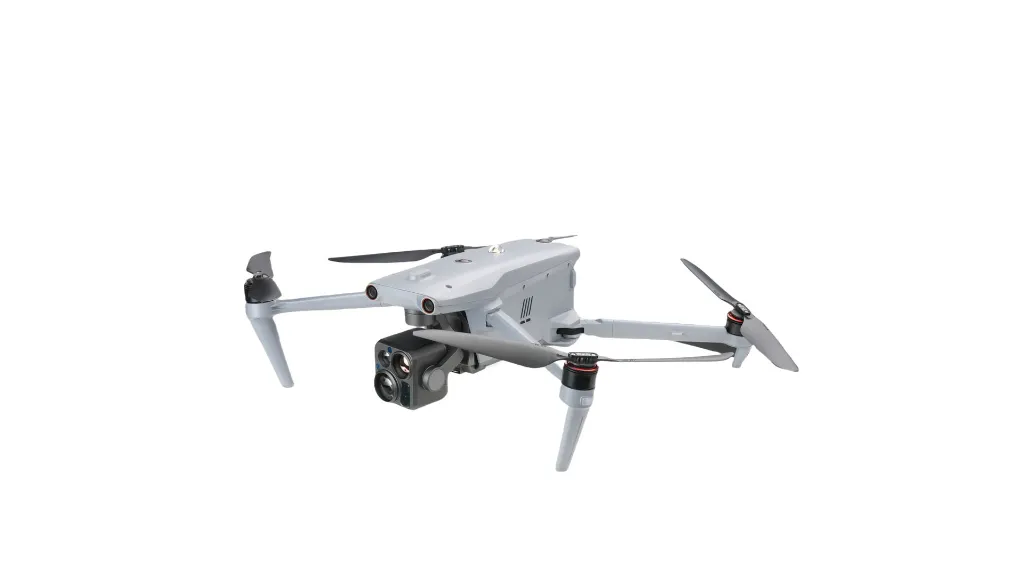

Autel EVO MAX 4NZ v2 - Standard Bundle

The Autel EVO Max 4NZ v2 is a specialized evolution of the Max series, specifically designed to bridge the gap between high-magnification zoom and extreme low-light performance. Its standout feature is the Fusion 4NZ payload, which integrates a 4K telephoto night vision camera and a wide-angle night vision camera, supported by dual infrared laser fill lights that provide up to 200 meters of illumination in pitch-black conditions. This makes it an unrivaled tool for nighttime reconnaissance and target identification, where standard thermal imaging alone might lack the necessary visual detail to confirm a subject's identity.

  • Dual Night Vision: Telephoto and Wide-Angle Starlight sensors for layered detail in the dark.
  • Active IR Fill Lights: Built-in infrared illumination for enhanced clarity in zero-light scenarios.
  • Thermal Intelligence: 640 x 512 resolution thermal sensor for rapid heat signature detection.
  • Precision Targeting: Integrated Laser Rangefinder with a 1200m reach for instant coordinate acquisition.
0.00 € 0.00 € (Tax excluded)

  • Brand
  • Weight
  • Dimensions (unfolded)
  • Max flight time
  • Max flight range
  • IP rating
  • Thermal camera 1
  • Night vision camera 1
  • Night vision camera 2
  • Rangefinder
  • Remote controller display size
  • Protector case
  • Spare components
  • microSD card size
  • Drone class
  • Thermal camera
  • Night vision
  • Type
  • RTK module
Add to cart
Contact Us


Drone Specs

EVO Max 4NZ V2 Weight

1715 g (ABX41-D smart battery, Fusion 4NZ-L V2 gimbal, and propellers included)
Maximum Take-Off Mass1999 g
1890 g (for C2 Certification in EU)
Fuselage Dimensions563×657×147 mm (unfolded, incl. propellers)
Diagonal WheelbaseDiagonal: 467 mm
Propeller Size11 inch, 1158
Propeller Pitch5.8 inch
Propeller MaterialNylon + Carbon Fiber
Propeller Weight10.3 g
Maximum Propeller Rotational Speed7500 RPM
Operating Temperature-20℃ to +50℃ (without load)
-20℃ to +40℃ (full load)
Internal Storage128GB internal storage, with 64GB of available space*
* Remaining available space will vary with different firmware versions.
Supported microSD CardsSupports Class 10, UHS-3 or higher microSD cards, up to 1TB
GNSSGPS + Galileo + BDS + GLONASS
Hot Swap BatterySupported*
* The hot swap battery function must be enabled in the flight application in advance.
StrobeIntegrated


Flight Performance
Max Ascent SpeedSlow: 2.5 m/s
Smooth: 3 m/s
Standard: 6 m/s
Ludicrous: 8 m/s
Max Descent SpeedSlow: 2.5 m/s
Smooth: 3 m/s
Standard: 6 m/s
Ludicrous: 6 m/s
Max Flight Speed*Slow: 2.5 m/s
Smooth: 10 m/s
Standard: 15 m/s (forward & backward), 10 m/s (sidewards)
Ludicrous: 23 m/s (forward), 18 m/s (backward), 20 m/s (sidewards)
* Windless Near Sea Level.
Max Service Ceiling Above Sea Level4500 meters (use ABX41-D smart battery)
Max Flight Altitude*Chinese Mainland or EU Laws: No more than 120 meters
US Law: No more than 400 feet
* The altitude can be set from 20 to 800 meters in the flight application.
To set altitude higher than required by law, authority approval is required.
Max Flight Time*42 minutes
* Test data from lab with windless environment in the speed of 8 m/s during horizonal flight and only for reference.
Max Flight Distance*25 km
* Test data from lab with windless environment in the speed of 14 m/s during horizonal flight and only for reference.
Max Hover Time*37 minutes
* Test data from lab with windless environment during hovering and only for reference.
Max Wind Speed ResistanceTakeoff and Landing Phase: 10.7 m/s
Cruise Phase: 12 m/s
Max Pitch AngleSlow: 10°
Smooth: 30°
Standard: 30°
Ludicrous: 36°
Max Angular VelocityPitch axis: 300°/s
Yaw axis: 120°/s
Hovering AccuracyVertically
±0.1 m (when visual positioning works normally)
±0.5 m (when GNSS works normally)
Horizontally
±0.3 m (when visual positioning works normally)
±0.5 m (when high-precision positioning system works normally)


Wi-Fi
Protocol802.11a/b/g/n/ac/ax
Operating Frequency2.4G: 2.400–2.476GHz*，2.400–2.4835GHz
5.2G: 5.15-5.25GHz**，5.17-5.25GHz***
5.8G: 5.725-5.829GHz*，5.725-5.850GHz
* Only applies to SRRC regions
** Only applies to FCC, CE (Germany excluded) and UKCA regions
*** Only applies to Germany
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Equivalent Isotropic Radiated Power (EIRP)2.4G:
≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.2G:
≤30dBm (FCC); ≤23dBm (CE/UKCA)
5.8G:
≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)



Video Transmission
Operating Frequency900M: 902-928MHz*
2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz
5.2G: 5.15-5.25GHz***, 5.17-5.25GHz****
5.8G: 5.725-5.829GHz**, 5.725-5.850GHz
* Only applicable to FCC and ISED regions.
** Only applicable to SRRC regions.
*** Only applicable to FCC, CE (Germany excluded) and UKCA regions
**** Only applies to Germany
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Equivalent Isotropic Radiated Power (EIRP)900M: ≤30dBm (FCC/ISED)
2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.2G: ≤30dBm (FCC); ≤23 dBm (CE/UKCA)
5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm(CE/UKCA)
Max Transmission Distance*FCC: 15km
SRRC/CE: 8km
* Without Interference and Blocking.


Visual Obstacle Avoidance Sensing System
Obstacle Sensing RangeForward: 0.5 ~ 30 m
Backward: 0.5 ~ 25 m
Sidewards: 0.5 ~ 40 m
Upward: 0.5 ~ 40 m
Downward: 0.5 - 35 m
FOVForward & Backward: 60°(H), 80°(V)
Upward: 180° (sidewards), 120° (forward & backward)
Downward: 180° (sidewards), 120° (forward & backward)
Operating EnvironmentForward, backward, sidewards, and upward:
The surface has rich textures, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment).
Downwards:
The surface has rich textures, and the surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment).


Millimeter-Wave Radar Sensing System
Transmission Frequency24G: 24.0 - 24.25 GHz
60G: 60 - 64 GHz
Equivalent Isotropic Radiated Power (EIRP)60G: ≤20dBm (CE/UKCA/FCC)
24G: ≤20dBm (CE/UKCA/FCC), ≤13dBm (SRRC)
Sensing Range60G millimeter-wave radar:
Upward: 0.3 ~ 18 m @ high voltage transmission line
Downward: 0.15 ~ 40 m @ concrete floor
Forward & Backward: 0.15 ~ 18 m @ high voltage transmission line, with flight speed 10 m/s
Sidewards: 0.15 ~ 18 m @ high voltage transmission line, with flight speed 10 m/s
24G millimeter-wave radar:
Downward: 0.8 ~ 12 m @ concrete floor
FOVHorizontal (6dB): ±30°/±15° (60G/24G)
Vertical (6dB): ±40°/±15° (60GHz/24G)
Operating Environment60G millimeter-wave radar sensing system:
Supports all-weather obstacle avoidance for glass, water, transmission line, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size.
24G millimeter-wave radar sensing system:
Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters.

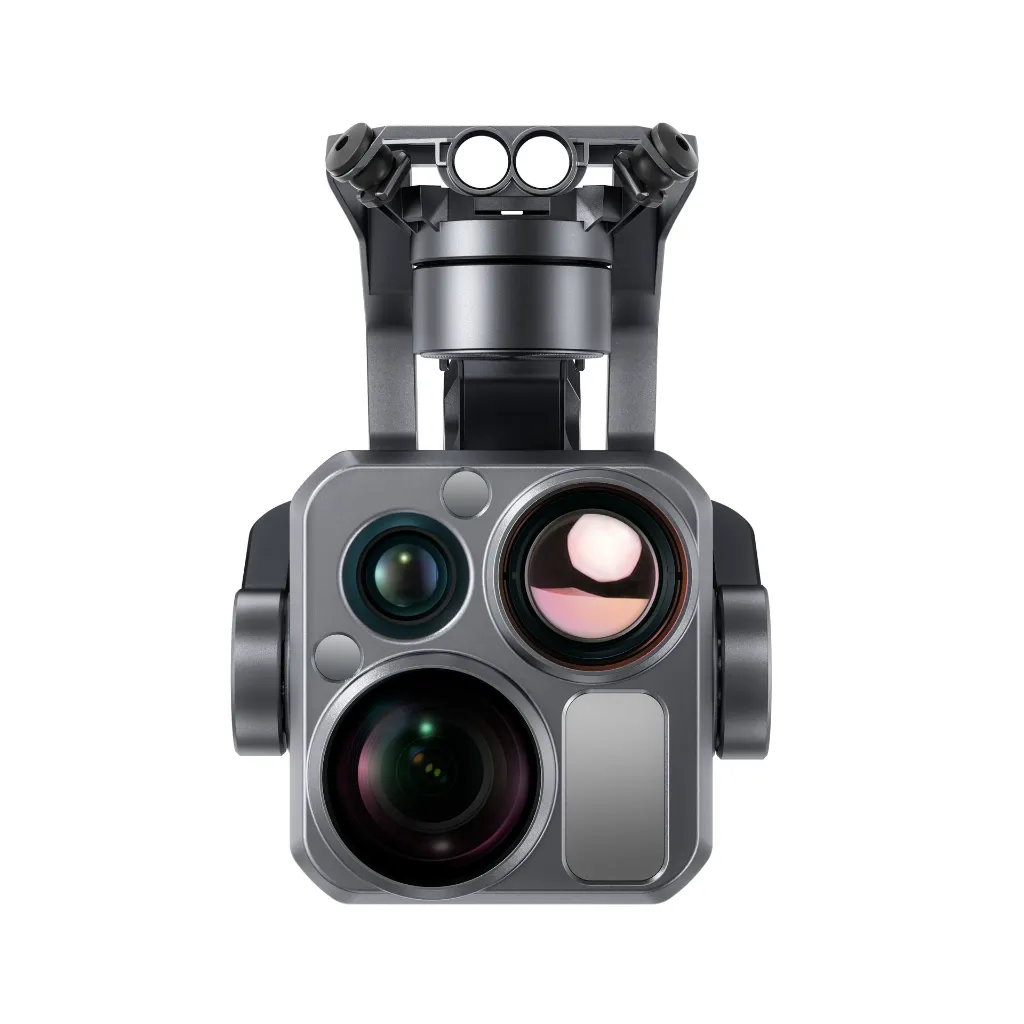

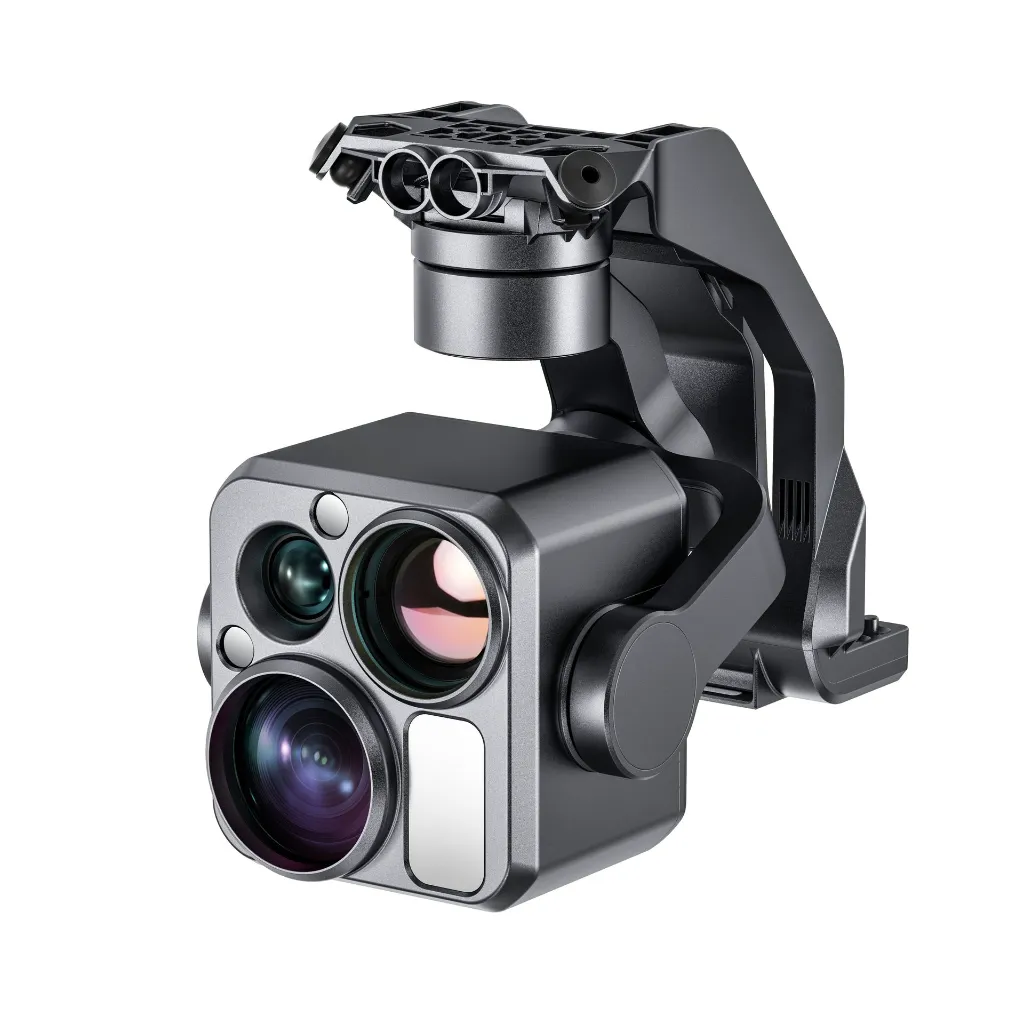

Fusion 4N V2
Gimbal Weight258 g
Mechanical RangeTile: -135° to 45°
Roll: -50° to 50°
Pan: -45° to 45°
Controllable RangeTilt: -90° to 30°
Stabilization System3-axis mechanical gimbal (tilt, roll, pan)
Max Control SpeedTilt: 100°/s
Angular Vibration Range< 0.005°


Night Vision Camera
Image Sensor1.69" CMOS. Effective pixels: 2.3M
LensDFOV: 52°±2°
Effective Focal Length: 11.2 mm
Aperture: f/1.4
Focus: 10 m ~ ∞
Pixel Pitch12 um
ISO RangeAuto/Manual: ISO100 ~ ISO440000
Night Mode: ISO100 ~ ISO440000 (auto)
Shutter SpeedShooting: 8s ~ 1/10000s
Recording: 1/30s ~ 1/10000s
Zoom1 ~ 8x digital zoom
Photo SizeJPG: 1920×1200
Still Photography ModeSingle
Video Resolution1920×1200@30fps
Max Video Bitrate20Mbps
Video FormatMP4
Video SubtitlesSupported
Video EncodingH.264/H.265
Supported File SystemexFAT/FAT32


Wide-angle camera
Image Sensor1/0.98" CMOS. Effective pixels: 50M
LensDFOV: 85.01°
Equivalent focal length: 23.52 mm
Aperture: f/1.85
Focus: 0.5 m ~ ∞
ISO RangeAuto/Manual: ISO100 ~ ISO6400
Night Mode: ISO100 ~ ISO320000 (auto)
Shutter SpeedShooting: 8s ~ 1/10000s
Recording: 1/30s ~ 1/10000s
Zoom1 ~ 8x digital zoom
Photo SizeJPG: 4096×3072, 8192×6144
Still Photography ModeSingle
Video Resolution4000×3000@30fps
Max Video Bitrate60Mbps
Video FormatMP4
Video SubtitlesSupported
Video EncodingH.264/H.265
Supported File SystemexFAT/FAT32


Infrared Thermal Camera
Thermal ImagerUncooled VOx Microbolometer
LensFOV: 61°
Focal length: 9.1 mm
Aperture: f/1.0
Focusing distance: 2.2 m ~ ∞
Equivalent Digital Zoom Rate1-16x digital zoom
Noise Equivalent Temperature Difference≤50mK@25℃, F#1.0
Pixel Pitch12 um
Spectral Band8 – 14 um
Temperature Measurement MethodCenter Point Temperature Measurement/Spot Temperature Measurement/Area Temperature Measurement
Temperature Measurement RangeHigh Gain Mode: -20℃ to 150℃
Low Gain Mode: 0 to 550℃
Temperature Measurement Accuracy±2℃ or reading ±2% (using the larger value) @ ambient temperature ranges from -10℃ to 50℃
Temperature Measurement Distance1-100 m
Temperature AlertIn area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported
PaletteWhite Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint
Photo Size640×512
Still Photography ModeSingle
Photo Format*JPG
* the images contain temperature information and are parsed by dedicated SDK and PC tools.
Video Resolution640×512@30fps / 640×512@25fps
* Due to differences in thermal imaging sensor suppliers, the two specifications are shipped in mixed batches. The exact specification is subject to the actual product purchased.
Max Video Bitrate10Mbps
Video FormatMP4
Supported File SystemexFAT/FAT32


Laser Rangefinder
Wavelength905 nm
Laser SafetyClass 1
Measuring Accuracy± (1 m + D*×0.15%)
* Where D is the distance to a vertical reflecting plane.
Measurement Range5 - 1200 m



Autel Smart Controller V3
Body MaterialPC+ABS
RC Dimensions269×189×87 mm (antennas folded, sticks and bracket included)
269×189×173 mm (antennas vertical to screen, sticks and bracket included)
269×302×87 mm (antennas unfolded, sticks and bracket included)
RC Weight1195 g (smart controller cover excluded)
1365 g (smart controller cover included)
Operating Temperature-20℃ to 40℃
Storage Temperature+15℃ ~ +25℃ (within a year)
0℃ ~ +30℃ (within three months)
-20℃ ~ +45℃ (within a month)
Angular Vibration RangeIP43*
* Long-term use may cause failure.


System Performance
Operating SystemBased on Android 11
Pre-installed flight ApplicationAutel Enterprise
Application InstallationSupports the installation of third-party Android applications
Video PerformanceSmooth playback of 4K@24fps H.264/H.265 videos
Internal Storage128GB*
* Does not support microSD card extension.
GNSSGPS + Galileo + BDS + GLONASS


Port
HDMIOutputs up to 1080P@60fps video
USB-CCharging: supports PD 60W fast charging and QC 18W fast charging.
Data: USB3.1 Gen2
USB-APower: 5V/2A
Data: USB2.0


Wi-Fi
Protocol802.11a/b/g/n/ac
Operating Frequency2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz*, 5.725-5.850GHz
* Only applies to SRRC region
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Equivalent Isotropic Radiated Power (EIRP)2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)


Bluetooth
ProtocolBluetooth 5.0
Operating Frequency2.400 - 2.4835 GHz
Note: In some regions, frequency range is specified. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power (EIRP)≤20dBm


Video Transmission
AntennaDual antennas, 1T2R, detachable design
Operating Frequency900M: 902-928MHz*
2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz
5.8G: 5.725-5.829GHz**, 5.725-5.850GHz
* Only applicable to FCC and ISED regions.
** Only applicable to SRRC region.
Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power (EIRP)900M: ≤30dBm(FCC/ISED)
2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA)
5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA)
Max Transmission Distance*FCC: 15 km
SRRC/CE: 8 km
* Without Interference and Blocking.


Display
TypeTFT LCD
Dimensions7.9 inches
Resolution2048×1536
Max Brightness2000 nits
Refresh Rate60Hz
Touch ControlSupported


Battery
Battery ReplacementBuilt-in, not supported
Battery TypeLi-Po 3S
Rated Capacity5800 mAh
Rated Energy67 Wh
Voltage11.55V
Charging TimeAbout 120 minutes*
* Charging time depends on the actual remaining power.
Battery EnduranceMax brightness: 2.5 hours
50% brightness: 4.0 hours



ABX41-D Smart Battery
Battery Weight530 g
Battery Dimension
158.4×74.3×50.7 mm
Operating Temperature-20℃ to 50℃
Storage Temperature-20℃ to +35℃
Ideal Storage Environment+22℃ to +28℃, 65±20%RH, 60% battery level
Battery TypeLi-Po 4S
Rated Capacity9248mAh
Rated Energy
136.5Wh
Voltage
DC 14.76V
Charging Voltage LimitDC 17.0V
Rated Charging Power120W
Max Charging Power282W
Battery Charge Temperature+5℃ to +45℃*
* When the battery temperature is below +5℃, the battery stops charging and activates self-heating. When the battery temperature is above +45℃, the battery stops charging.
Service life200 discharge cycles*
* If the number of discharge cycles exceeds 200, the battery should be replaced with a new one.


Battery Charger MDX120W
Power Input100-240V~ 50/60Hz, 3.0A
Output PortBattery charging port/USB-C
Battery Charging port17V⎓7.06A
USB-C5.0V⎓3.0A, 9.0V⎓3.0A, 12.0V⎓2.5A
Total Power Output120.0W Max




  • 1x Aircraft (battery, propeller set, gimbal, gimbal cover)
  • 1x SD Card 64 GB
  • 1x Manual

  • 1x Rugged case
  • 2x Spare Propeller (pair), one CW and one CCW

  • 1x Smart Battery
  • 1x Battery charger

  • 1x Smart Remote Controller (RC) v3, sticks included
  • 1x RC lanyard
  • 1x RC cover
  • 1x RC spare joystick (pair)
  • 1x RC charger
  • 1x USB-C to USB-A data cable
  • 1x USB-C to USB-C data cable

Specifications

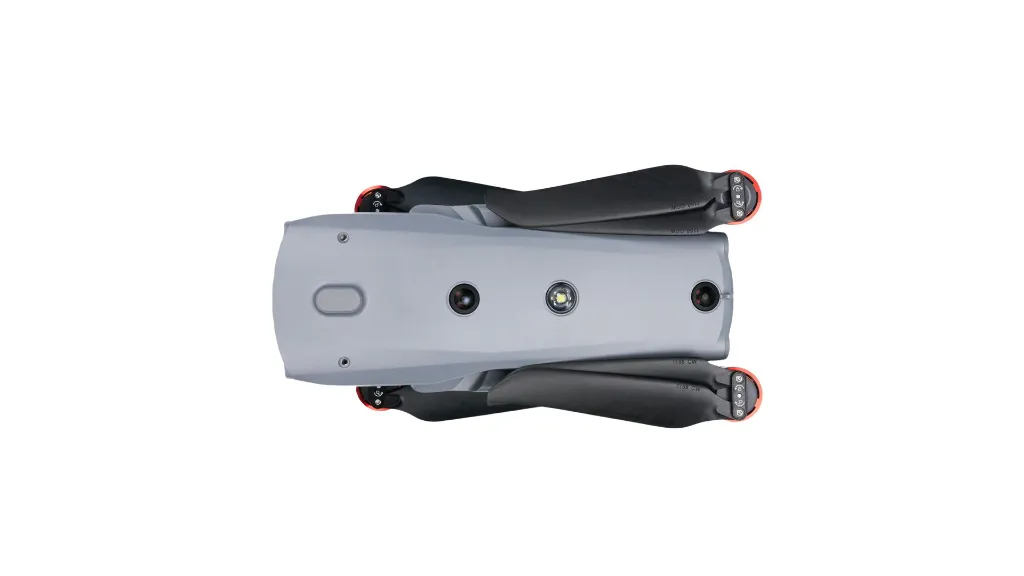

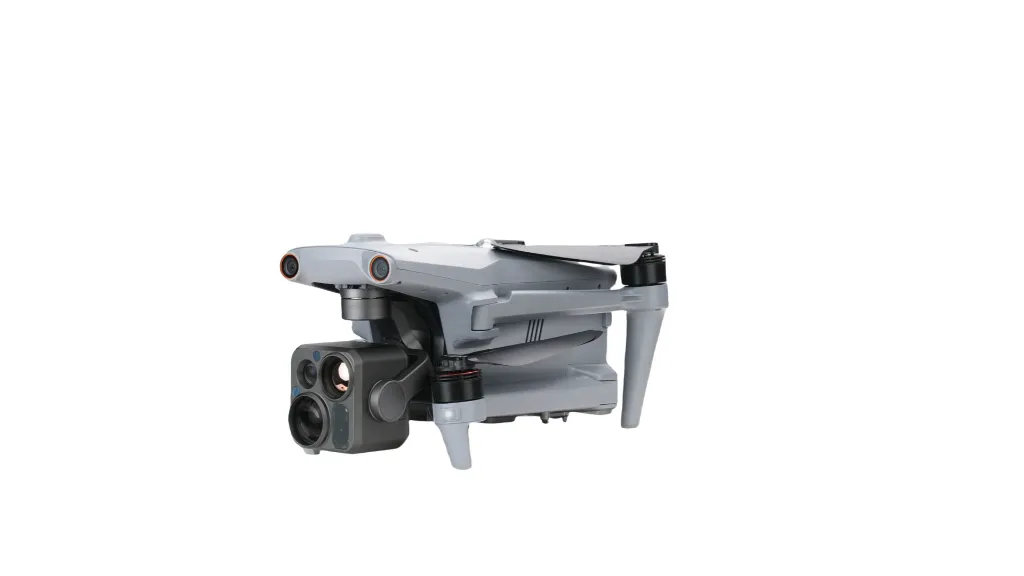

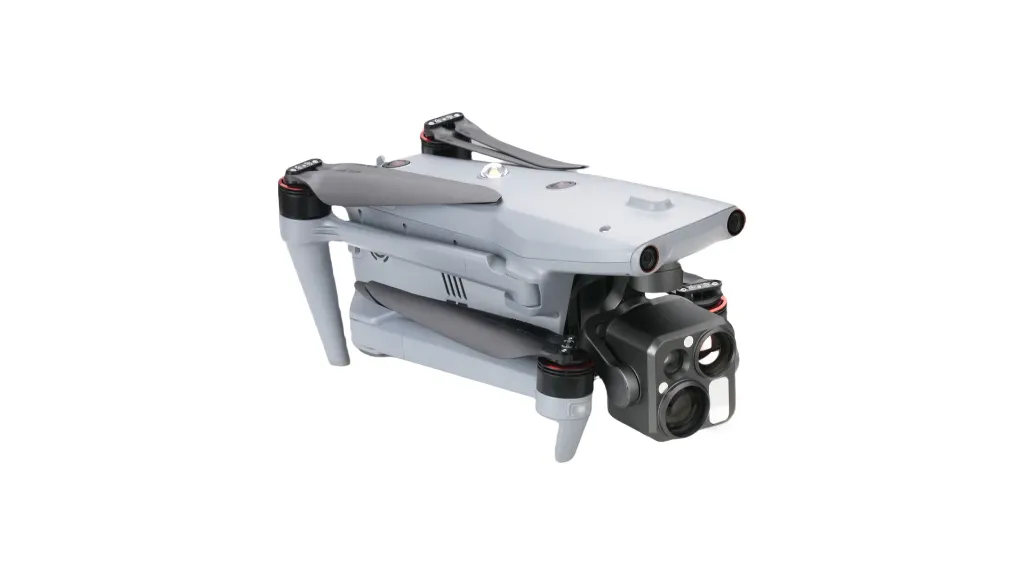

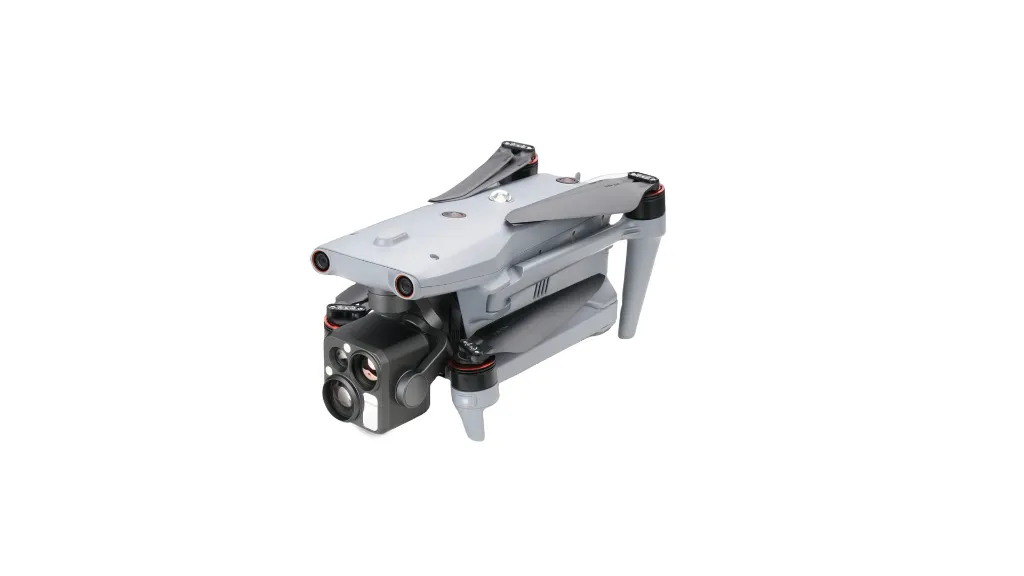

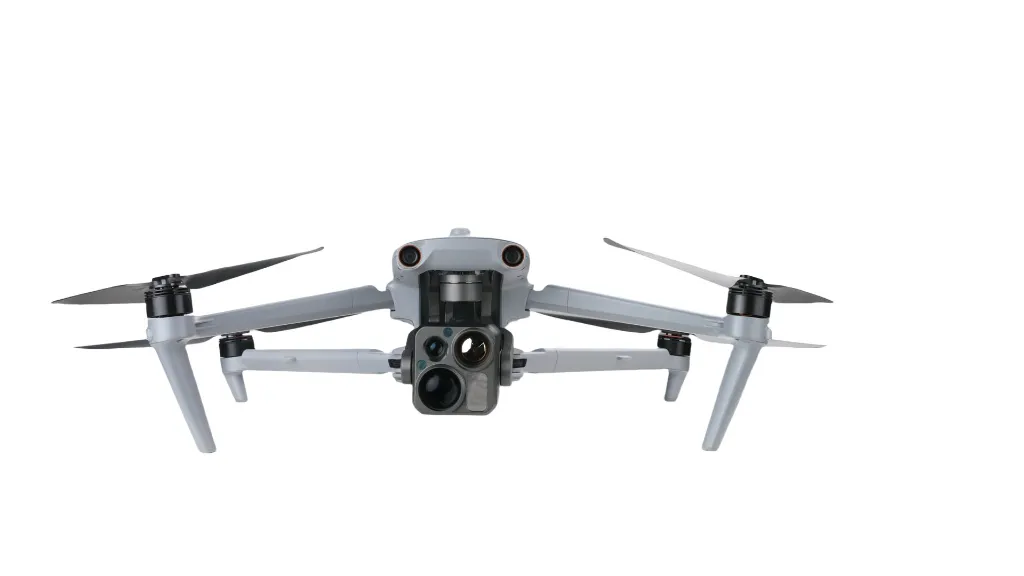

Aircraft
Brand Autel
Weight 1715g
Dimensions (unfolded) 563×657×147mm
Max flight time 42 minutes
Max flight range 25km
IP rating IP43
Drone class C2
Gimbal cameras
Thermal camera 1 640x512, 1-16x zoom
Night vision camera 1 8 million pixels, 1-3.2x zoom
Night vision camera 2 8 million pixels, 3.3-16x zoom
Rangefinder 5-1200m
Thermal camera Yes
Night vision Yes
Accessories
Protector case Yes
Spare components 2 propeller pairs
microSD card size 64 GB
Remote controller
Remote controller display size 7.9"
Others
Type Drone bundel
RTK module Optional
