| Autel Alpha Empty Weight | 5535 g (Smart battery, propellers included and gimbal excluded) |
| Autel Alpha Weight | 6480 g (Smart battery, gimbal and propellers included) |
| Autel Alpha Maximum Take-Off Mass (MTOM) | 8400 g |
| Fuselage Dimensions | 1205×980×278 mm (unfolded, incl. propellers) 780×568×278 mm(unfolded, excl. propellers) 455×263×248 mm (folded, excl. propellers) |
| Diagonal Wheelbase | Diagonal: 814 mm |
| Maximum Ascent Speed | Slow: 2.5 m/s Smooth: 3 m/s Standard: 6 m/s Ludicrous: 8 m/s |
| Maximum Descent Speed | Slow: 2.5 m/s Smooth: 3 m/s Standard: 5 m/s Ludicrous: 10m/s |
| Maximum Horizontal Flight Speed (Windless Near Sea Level) | Slow: 3 m/s Smooth: 10 m/s Standard: 15 m/s (forward & backward), 10 m/s (sidewards) Ludicrous: 25 m/s (forward & backward & sidewards) |
| Max Service Ceiling Above Sea Level | 4500 meters |
| Maximum Flight Altitude | 800 meters (Altitude limit in the App) |
| Maximum Flight Time (Windless, Speed: 10.5 m/s) | 40 minutes |
| Maximum Range | 30 km (with carbon fiber propeller) 27.5km (with injection molded propeller) |
| Maximum Hovering Time (Windless) | 38 minutes |
| Max Wind Speed Resistance | Takeoff and Landing Phase: 10.7 m/s Cruise Phase: 12 m/s |
| Maximum Tilt Angle | Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36° |
| Max Angular Velocity | Pitch axis: 300°/s Heading axis: 120°/s |
| Operating Temperature | -20℃ to 50℃ |
| Hot-swappable Batteries | Supported |
| IP Rating | IP55 |
| GNSS | GPS+Galileo+BeiDou+GLONASS |
| Hovering Accuracy | Vertically ±0.1 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX) Horizontally ±0.15 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX) |
| Operating Frequency | 900M: 902 – 928 MHz* 2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz 5.2G: 5.15 - 5.25 GHz***, 5.17 - 5.25 GHz**** 5.8G: 5.725 - 5.829GHz**, 5.725 - 5.850GHz * Only applicable to FCC and ISED regions. **Only applicable to SRRC regions. *** Only applicable to FCC, CE (except Germany), and UKCA regions. **** Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details. |
| Maximum Transmission Distance (Without Interference and Blocking) | FCC: 15km CE: 8km |
| Effective Isotropic Radiated Power (EIRP) | 900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23 dBm (CE/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm(CE/UKCA) |
| Sensing Range | Forward: 0.2 - 31 m Backward: 0.2 - 26 m Sidewards: 0.5 - 45 m Upward: 0.2 - 45 m Downward: 0.2 - 45 m |
| FOV | Forward & Backward: 90°(H), 90°(V) Sidewards: 90°(H), 90°(V) Upward: 90°(H), 90°(V) Downward: 90°(H), 90°(V) |
| Operating Environment | Forward, backward, sidewards, and upward: The surface has rich textures, under a sufficient lighting environment (>15 lux). Downwards: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux). |
| Operating Frequency | 60G: 60 - 64GHz 24G: 24.0 - 24.25GHz |
| Effective Isotropic Radiated Power (EIRP) | 60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20mW(SRRC) |
| Sensing Range | 60G radar: Upward: 0.3 - 20 m Downward: 0.15 - 40 m Forward & Backward: 0.3 - 30 m Sidewards: 0.3 - 30 m 24G radar: Downward: 0.8 - 20 m |
| FOV | Horizontal (6dB): ±35°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz)) |
| Operating Environment | 60G millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, transmission lines, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. 24G millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters. |
| Aircraft Version Limitations* | In order to comply with the regulations of the country or region where the target market is located, aircraft bottom millimeter-wave radars in some markets use the 24G frequency band, and the five directions of front, rear, left, right, and top use the 60G frequency band. Among them, the 24G version of the aircraft has turned off the 60G radar function in the five directions of front, rear, left, right, and top in the flight control software before leaving the factory, and only turned on the bottom 24G radar for assisted landing. The 24G version of the aircraft only supports visual obstacle avoidance under good lighting conditions and does not support the millimeter-wave radar obstacle avoidance function at night. |
| Wi-Fi Protocol | 802.11a/b/g/n/ac/ax |
| Wi-Fi Operating Frequency | 2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835 GHz 5.2G: 5.15-5.25GHz**, 5.17-5.25GHz*** 5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850 GHz *Only applicable to SRRC regions. ** Only applicable to FCC, CE (except Germany), and UKCA regions. *** Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details. |
| Wi-Fi Transmitter Power (EIRP) | 2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA) |
| Dimension | 144.7×133.3×158.4 mm |
| Weight | 920g |
| IP Rating | IP55 |
| Installation | Detachable (E-shape design) |
| Operating Temperature | -20℃ to +35℃ |
| Storage Temperature | -30℃ to +70℃ |
| Data Storage | Support microSD |
| Max. Expandable Memory | 256GB |
| Recommended Memory Card List | UHS-I Speed Class U3 or V30, minimum write speed 30MB/s |
| Mechanical Range | Pitch: -135° to 45° Roll: -60° to 60° Yaw: -90° to 90° |
| Controllable Range | Pitch: -90° to 30° |
| Stable system | 3-axis mechanical gimbal (pitch, yaw, roll) |
| Max Control Speed (pitch) | 100°/s |
| Angular Vibration Range | <0.005° |
| Image Sensor | 1/1.8" CMOS. Effective pixels: 8M |
| Lens | Focal length: 7.1 - 171.95 mm±5% 35 mm equivalent focal length: 34.7 - 838 mm Aperture: f/1.61(Wide)- f/5.19(Tele)±5% Focusing distance: 10 m ~ ∞ |
| ISO Range | Normal mode ISO100 - ISO25600 Super Night ISO100 – ISO160000 |
| Shutter Speed | Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Digital Zoom | 1.4 - 35x continuous optical zoom, 35-560x digital zoom |
| IR-CUT | Default Setting: Auto - Disabled during daytime, activated during nighttime. Manual Activation: Turn on IR-CUT - Display in Black and White. Manual Deactivation: Turn off IR-CUT - Display in Color. |
| Max Photo Resolution | 3840×2160 |
| Photo Format* | JPG |
| Photo Taking Mode | Auto |
| Video Resolution | 3840×2160 30P |
| Video Format | MP4 |
| Max Bit Rate | 30Mbps |
| Supported File System | exFAT/Fat32 |
| Image Sensor | 1/2" CMOS, Effective pixels: 48M |
| Lens | Focal length: 4.49 mm Equivalent focal length: 24 mm Aperture: f/2.8 |
| ISO Range | Auto: ISO100 - ISO3200 |
| Shutter Speed | Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s |
| Photo Size | 4000×3000 |
| Photo Format* | JPG |
| Photo Taking Mode | Auto |
| Video Resolution | 4000×3000 25P |
| Video Format | MP4 |
| Max Bit Rate | 30Mbps |
| Supported File System | exFAT/Fat32 |
| Image Sensor | Uncooled VOx Microbolometer |
| Lens | FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞ |
| Sensitivity | ≤50mK@f/1.0, 25°C |
| Pixel Pitch | 12um |
| Wavelength | 8 - 14um |
| Radiometric Measurement Method | Center measurement/Pot measurement/Rectangular measurement |
| Radiometric Temperature Range | -20°C to 150°C (high gain mode); 0 to 550°C (low gain mode) |
| Radiometric Measurement Accuracy | 5-meter distance test in a windless laboratory environment at 25°C: ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C |
| Accurate Temperature Measurement Distance | 5 m |
| Digital Zoom | 1-3.5x wide angle digital zoom |
| Temperature Alert | High and low temperature alarm thresholds, Reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot |
| Photo Size | 640×512 |
| Photo Format* | JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools) |
| Photo Taking Mode | Auto |
| Video Resolution | 640×512@25FPS |
| Video Format | MP4 |
| Image Sensor | Uncooled VOx Microbolometer |
| Lens | FOV: 12.3° Focal length: 45 mm Aperture: f/1.2 Focusing distance: 35 m ~ ∞ |
| Sensitivity | ≤50mK@f/1.0, 25°C |
| Pixel Pitch | 12um |
| Wavelength | 8 - 14um |
| Radiometric Measurement Method | Center measurement/Pot measurement/Rectangular measurement |
| Radiometric Temperature Range | -20°C to 150°C (high gain mode); 0 to 550°C (low gain mode) |
| Radiometric Measurement Accuracy | 35-meter distance test in a windless laboratory environment at 25°C: ±5°C or reading ±5% (using the larger value) @ ambient temperature ranges from -20°C to 60°C |
| Accurate Temperature Measurement Distance | 35 m |
| Digital Zoom | 3.5-56x tele digital zoom |
| Temperature Alert | High and low temperature alarm thresholds, Reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot |
| Photo Size | 640×512 |
| Photo Format* | JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools) |
| Photo Taking Mode | Auto |
| Video Resolution | 640×512@25FPS |
| Video Format | MP4 |
| Wavelength | 905 nm |
| Measurement Accuracy | <400m: +1m, >400m: D×0.3% where D is the distance to a vertical reflecting plane |
| Measuring Range | 10 - 2000 m |
| Dimensions | 269×189×87 mm (antennas folded horizontally) 269×189×173 mm (antennas folded vertically) 269×302×87 mm (antennas unfolded horizontally) |
| Weight | 1194 g (protective case excluded) 1365 g (protective case included) |
| Operating Temperature | -20℃ to 40℃ |
| Storage Temperature | +15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month) |
| Protection Rating | IP43 |
| Internal Storage | 128GB |
| microSD Extension | Not supported |
| Operating System | Based on Android 11 |
| Application Installation | Supports the installation of third-party Android applications |
| Video Performance | 4K@24FPS H.264/H.265 video smooth play |
| HDMI | Outputs up to 1080P@60fps video |
| USB-C | Charging: supports PD/QC fast charging, up to 65W Data: USB3.1 Gen2 |
| USB-A | Charging: 5V/2A Data: USB2.0 |
| GNSS | GPS+Galileo+BeiDou+GLONASS |
| Wi-Fi Protocol | 802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi |
| Wi-Fi Operating Frequency | 2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz*, 5.725-5.850GHz * Only applies to SRRC region Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations. |
| Wi-Fi Effective Isotropic Radiated Power (EIRP) | 2.4G: ≤30dBm(FCC/ISED); ≤20dBm(CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm(CE/UKCA) |
| Bluetooth | Bluetooth 5.0 |
| Bluetooth Operating Frequency | 2.400 - 2.4835 GHz Note: Some regions have designated frequency ranges. Check local laws and regulations for details. |
| Bluetooth Effective Isotropic Radiated Power (EIRP) | ≤20dBm |
| Antenna | Dual antennas, 1T2R, detachable design |
| Operating Frequency | 900M: 902-928MHz* 2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz**, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only available in some regions or for indoor use only. For details, please refer to local laws and regulations. |
| Effective Isotropic Radiated Power (EIRP) | 900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA) |
| Maximum Transmission Distance (Without Interference and Blocking) | FCC: 15 km CE/SRRC: 8 km |
| Type | TFT LCD |
| Dimensions | 7.9 inches |
| Maximum Brightness | 2000 nits |
| Resolution | 2048×1536 |
| Refresh Rate | 60Hz |
| Touch Control | Supports 10-point touch |
| Battery Type | Li-Po 3S |
| Rated Capacity | 5800 mAh |
| Voltage | 11.55V |
| Battery Energy | 67 Wh |
| Charging Time | About 120 minutes |
| Battery Endurance | 2.5 hours (Max brightness) 4.0 hours (50% brightness) |
| Battery Replacement | Not supported |
| Battery Dimension | 200×76.8×50 mm |
| Operating Temperature | -20℃ to 50℃ |
| Battery Type | LiPo 6S |
| Rated Capacity | 10000mAh |
| Battery Energy | 237Wh |
| Voltage | 23.7V |
| Charging Voltage Limit | 26.7V |
| Rated Charging Power | 180W |
| Max Charging Power | 260W |
| Weight | 995 g |
| Battery Charge Temperature | +5℃ to +45℃* * When the battery temperature is below +5℃, the battery stops charging and activates self-heating. When the battery temperature is above +45℃, the battery stops charging. |
| Ideal Storage Temperature | +22℃ ~ +28℃ |
| Storage Temperature & Humidity | -10℃ ~ +30℃, 65±20%RH |

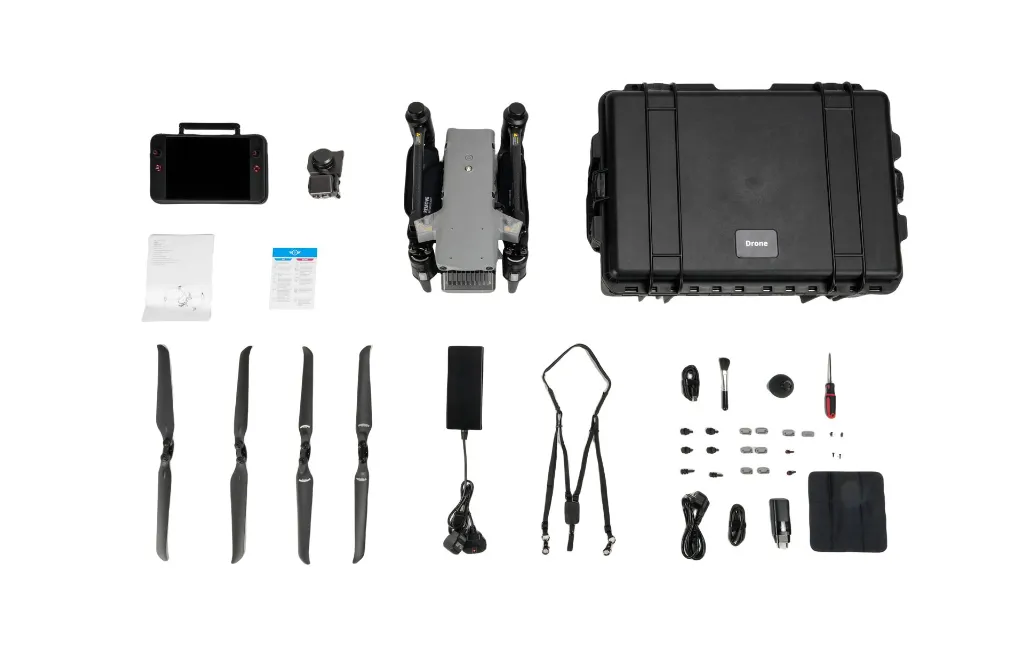

- 1x Aircraft (battery, propeller set, gimbal, gimbal cover)
- 1x SD Card 128 GB
- 1x Manual
- 1x Rugged case
- 2x Spare Propeller (pair), one CW and one CCW
- 4x Propeller Sleeve
- 1x Smart Battery
- 1x Battery charger
- 1x Smart Remote Controller (RC) v3, sticks included
- 1x RC lanyard
- 1x RC cover
- 1x RC spare joystick (pair)
- 1x RC charger
- 1x USB-C to USB-A data cable
- 1x USB-C to USB-C data cable
- 1x Maintenance Kit (Screwdriver, Cleaner, Soft Brush, Silicone Air Blower, Dampener, 8x Propeller Fastening Screw)
Specifications
| Aircraft | |
|---|---|
| Drone class | C3 |
| Gimbal cameras | |
|---|---|
| Thermal camera | Yes |
| Others | |
|---|---|
| Type | Drone bundel |
