EVO Lite 640T Enterprise Plus Combo with 7.9" RC

De EVO Lite Enterprise-serie van Autel Robotics biedt diverse voordelen, zoals een lichtgewicht en draagbaar ontwerp, snelle inzetbaarheid en eenvoudige bediening voor industriële toepassingen. Dankzij de AI-doelherkenning kan het toestel automatisch verschillende objecten identificeren en in kaart brengen. Het drie-weg binoculaire obstakelvermijdingssysteem zorgt bovendien voor een veilige vliegervaring.

Evo Lite 640T:

  • Combineert visuele en warmtebeeldcamera's voor betere operationele besluitvorming.
  • Warmtebeeldsensor met een resolutie tot 640x512.
  • 9,1mm lens en 16x digitale zoom, in staat om onderwerpen te herkennen tot op 100 meter afstand.
  • Radiometrische temperatuurmeting (voor nauwkeurige temperatuurdetectie).
  • AI-doelherkenning automatiseert de identificatie en het in kaart brengen van diverse objecten.
  • Toonaangevende vliegtijd van 40 minuten.
  • Transmissiebereik van 12 kilometer.


0,00 € 0,00 € (Exclusief btw)

  • Merk
  • Kleur
  • Gewicht
  • Dimensies (opengevouwen)
  • Max vluchttijd
  • Max vluchtbereik
  • Camera 1
  • Thermische camera 1
  • Remote controller schermgrootte
  • Protector case
  • Reserve-componenten
  • microSD kaart grootte
  • Drone klasse
  • Thermische camera
  • Nachtzicht
  • Type
Aan winkelmandje toevoegen
Vraag offerte aan

Evo Lite 640T:

  • Combines visible-light and thermal imaging cameras for enhanced operational decision-making
  • Thermal imaging sensor has a resolution of up to 640x512
  • 9.1mm lens and 16x digital zoom capable of recognizing subjects at up to 100m
  • Radiometric Temperature Detection
  • AI target recognition automates identification and mapping of various objects
  • Industry-leading 40 minutes flight time
  • Transmission range of 7.4 miles




Weight866 g
Maximum takeoff weight866 g
Dimensions
210×123×95mm (folded, propellers included)
433×516×95mm (unfolded, propellers included)
Max. rotation speed8000 rpm
Wheelbase368 mm
Propeller Dimension8.5 inch injection molded propeller. Spec: 8530
Propeller weight7.5 g
Maximum ascent speed
Slow:3 m/s
Smooth:3 m/s
Standard: 5 m/s
Ludicrous: 6 m/s
Maximum descent speed
Slow:3 m/s
Smooth:2 m/s
Standard: 3 m/s
Ludicrous: 4 m/s
Maximum horizontal flight speed
(no wind near sea level)		Slow :3 m/s
Smooth:5 m/s
Standard: 10 m/s
Ludicrous: 18 m/s
Maximum Service Ceiling Above Sea Level
3000 meters
Maximum flight altitude
Chinese Mainland or EU: no more than 120 meters
US: no more than 400 feet
Note:
In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain authorization from authority.
Maximum flight time
(no wind)		40 minutes
Note: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference.
Maximum flight mileage
24 km
Maximum hover time
(no wind)
37 minutes
Note: Tested in lab with nearly no wind when aircraft hovers and only for reference.
Maximum Wind Speed Resistance
10.7m/s
Maximum tilt angle
Slow: 15°
Smooth: 30°
Standard: 30°
Ludicrous: 33°
Maximum rotation angular speed
Smooth: 60°/s
Standard: 120°/s
Ludicrous: 200°/s
Working temperature
-10℃~40℃
Battery hot replacement
Not support
Internal storage
Onboard storage: 4GB (support microSD card of up to 256GB)
GNSS
GPS/BDS/GLONASS
Hover accuracy
Vertically:
±0.1 meters (when visual positioning is working normally)
±0.3 meters (when GNSS is working normally)
Horizontally:
±0.15 meters (when visual positioning is working normally)
±0.3 meters (when GNSS is working normally)


Operating Frequency2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz
5.2G: 5.15 - 5.25 GHz**
5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz
*Only applicable to SRRC regions
**Only applicable to FCC regions
Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details.
Maximum signal effective distance
(No interference, no obstruction)		FCC: 12 km
CE: 6 km
Effective transmitter power
( EIRP)
2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA)
5.2G: ≤30dBm (FCC)
5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA)
Sensing rangeForward: 0.2~23 meters
Effective obstacle avoidance speed: ＜10m/s
Backward: 0.2~30 meters
Effective obstacle avoidance speed: ＜10m/s
Downward: 0.2~20 meters
FOVForward:
75° horizontally, 87° vertically
Backward:
35° horizontally, 45° vertically
Downward:
99° horizontally, 83° vertically
Effective use of the environmentFront, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment)
Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)
Image sensor1/2 inch CMOS, 48 million pixels
Lens
DFOV: 83.4°
Equivalent focal length of 35mm: 24 mm
Aperture: f/2.8
Focus distance: 0.5 meter ~ ∞
Focus: FF (Fixed Focus)
ISO range
Auto/Manual: ISO100 ~ ISO6400
Shutter speed
1/10000 ~1/60 seconds
Defog mode
Support
Zoom
4K: 1-16x digital zoom
8K: 1-8x digital zoom
Maximum photo size
4000×3000, 8000×6000
Photo format
JPG
Video resolution
4000×3000 P30
Video formatMP4/MOV
Video coding format
H.265/H.264
Support file system
FAT32/exFAT
Image SensorUncooled VOx Microbolometer
Lens
FOV: 61°
Focal length: 9.1 mm
Aperture: f/1.0
Focusing distance: 2.2 m ~ ∞
Sensitivity
≤50mK@f/1.0, 25°C
Pixel Pitch
12um
Wavelength
8 - 14um
Radiometric Measurement Method
Center measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range
-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy
±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature
Measurement Distance
1 ~ 25 m
Digital Zoom
1-16x digital zoom
Temperature Alert
In area temperature measurement, support high and low temperature alarm thresholds, reporting coordinates and temperature values
Palette
White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size
640×512
Photo Format
JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Video Resolution
640×512 30P
Video Format
MP4/MOV
Mechanical scopePitch: -135°~45°
Roll: -50°~50°
Yaw: -90°~90°
Controllable rotation range
Pitch: -90°~30°
Stable system
Three-axis stabilization
Maximum control speed (pitch)
100°/s
Angualr vibration range
±0.003°
MaterialPC+ABS
Dimensions
226.3×137.7×31.5 mm (antennas folded)
226.3×215.4×31.5 mm (antennas unfolded)
Weight607 g
Operating Temperature
-10°C to 40°C
Storage Temperature
+15°C ~ +25°C (within a year)
0°C ~ +30°C (within three months)
-20°C ~ +45°C (within a month)
Protection RatingIP43
Internal Storage
Built-in storage of 32GB
Available storage: 24GB
MicroSD Extension
Supported
Operating SystemBased on Android 6.0.1
Application Installation
Supports the installation of third-party Android apps
USB -CCharging: supports PD/QC fast charging, up to 65W
USB -A
USB2.0
GNSSGPS/Galileo/BDS/GLONASS
Wi-Fi Protocol
802.11a/b/g/n/ac
Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency2.4G:
2.400 – 2.476GHz*, 2.400 – 2.4835GHz
5.8G:
5.725 - 5.829GHz*, 5.725 - 5.850GHz
*Only applicable to SRRC regions
Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
Wi-Fi Effective Isotropic
Radiated Power (EIRP)		2.4G:
≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC); ≤12.14dBm (MIC)
5.8G:
≤30dBm (FCC/SRRC/ISED); ≤14dBm (CE)
BluetoothBluetooth 4.2
Bluetooth Operating Frequency2.400-2.4835GHz
Note: Some regions specify frequency ranges. For details, please refer to local laws and regulations.
Bluetooth Effective Isotropic
Radiated Power (EIRP)		≤20dBm
AntennaDual antennas, 1T2R, detachable design
Operating Frequency
900M: 902 - 928MHz*
2.4G: 2.400 – 2.476GHz**，2.400 – 2.4835GHz
5.2G: 5150-5250MHz***
5.8G: 5.725 - 5.829GHz**，5.725 - 5.850GHz
*Only applicable to FCC and ISED regions
**Only applicable to SRRC regions
***Only applicable to FCC and RCM regions
Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
Effective Isotropic Radiated Power
(EIRP)
900M：
≤30dBm (FCC/ISED)
2.4G：
≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC)
5.2G:
≤30dBm (FCC/RCM)
5.8G：
≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE)
Maximum Transmission Distance
(Without Interference and Blocking)
FCC: 12 km
CE/SRRC: 8 km
Resolution1440×720
Refresh Rate
60Hz
Touch Control
Supports 10-point touch
Battery TypeLi-Po
Rated Capacity
1900 mAh
Voltage
DC 7.7V
Battery Energy
14.63 Wh
Charging Time
About 90 minutes
(charging time is related to actual remaining power)
Battery Endurance
1.5 hours (Max brightness)
2.5 hours (50% brightness)
Battery Replacement
Supported
Operating Temperature0 ~ +40℃
Battery Type
LiPo 3S
Rated Capacity
6175 mAh
Battery Energy
68.7 Wh
Voltage
11.13 V
Charging Voltage Limit
12.75V
Rated Charging Power
63.75W
Maximum Charging Power
78W
Weight
309g
Battery Charging Temperature
+5-+45℃
(When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.)
Ideal Storage Environment+ 22℃ ~ +28℃
Storage Temperature and Humidity- 10℃ ~ +30℃, 65 ± 20%RH
Power Input100-240V ~ 50/60 Hz, 1.5 A
Output Port
Battery charging interface/USB-A
Battery Charging Interface
12.75V⎓5A
USB Charging Port
5V⎓3A, 9V⎓2A, 12V⎓1.5A
Rated Power
63.75W Max

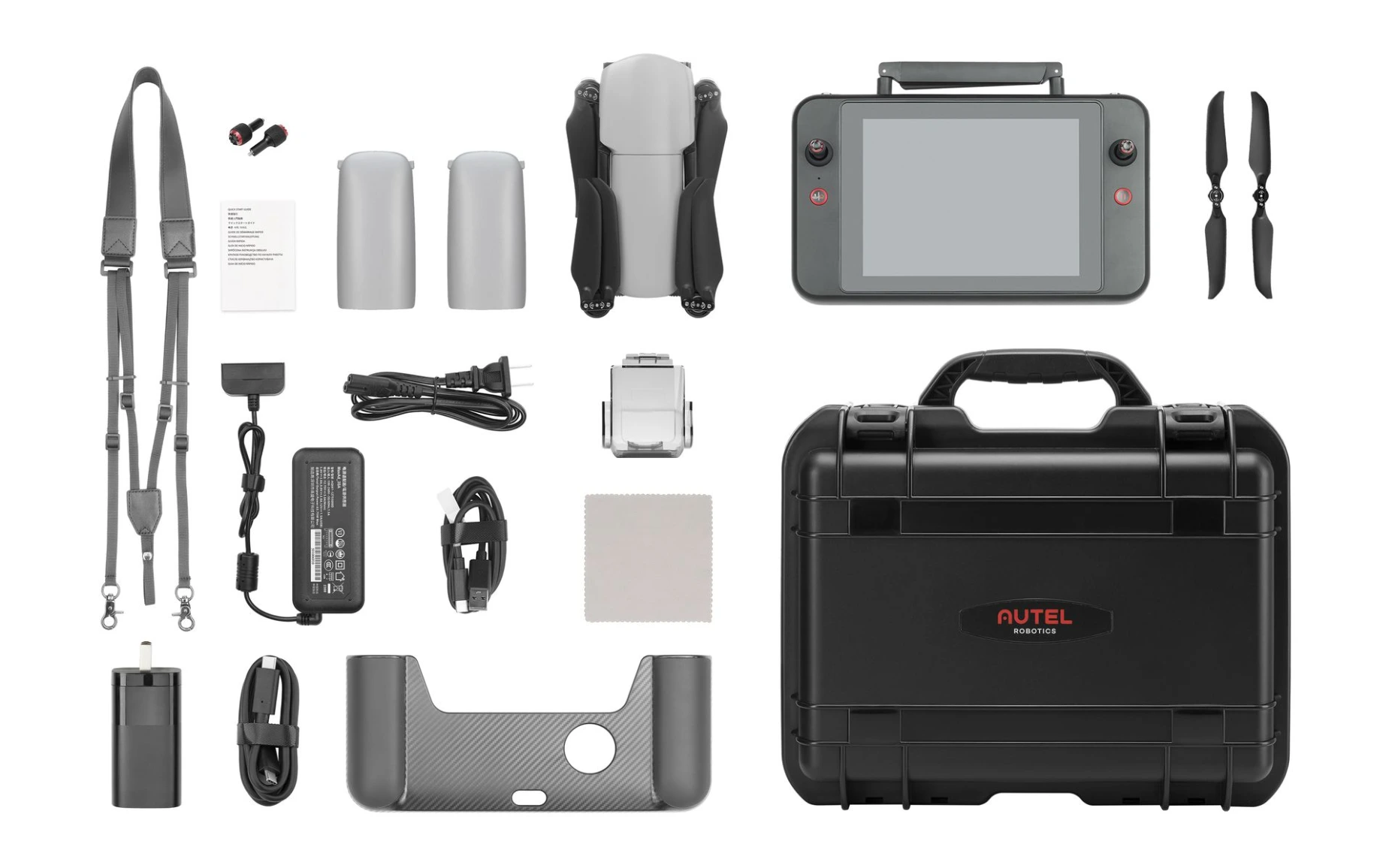

Plus Combo with 7.9" RC

  • 1x Aircraft (battery, propeller set, gimbal, gimbal cover)
  • 1x microSD Card 32 GB
  • 1x Autel Smart RC Controller v3 (7.9")
  • 1x Battery charger
  • 1x USB-C to USB-A Data cable
  • 1x USB-C to USB-C Data cable
  • 1x User Manual
  • 1x Rugged case
  • 2x Spare Battery
  • 2x Spare Propeller Pair
  • 1x Spare RC Joystick Pair
  • 1x RC Cover
  • 1x RC Lanyard



High-level specs

Aircraft
Merk Autel
Kleur Grijs
Gewicht 866g
Dimensies (opengevouwen) 433×516×95mm
Max vluchttijd 40 minuten
Max vluchtbereik 24km
Drone klasse C1
Gimbal cameras
Camera 1 48 million pixels, 1-16x zoom
Thermische camera 1 640x512, 1-16x zoom
Thermische camera Ja
Nachtzicht Nee
Accessories
Protector case Ja
Reserve-componenten 2 batterijen, 2x propeller paar
microSD kaart grootte 32 GB
Remote controller
Remote controller schermgrootte 7.9"
Andere
Type Drone bundle
