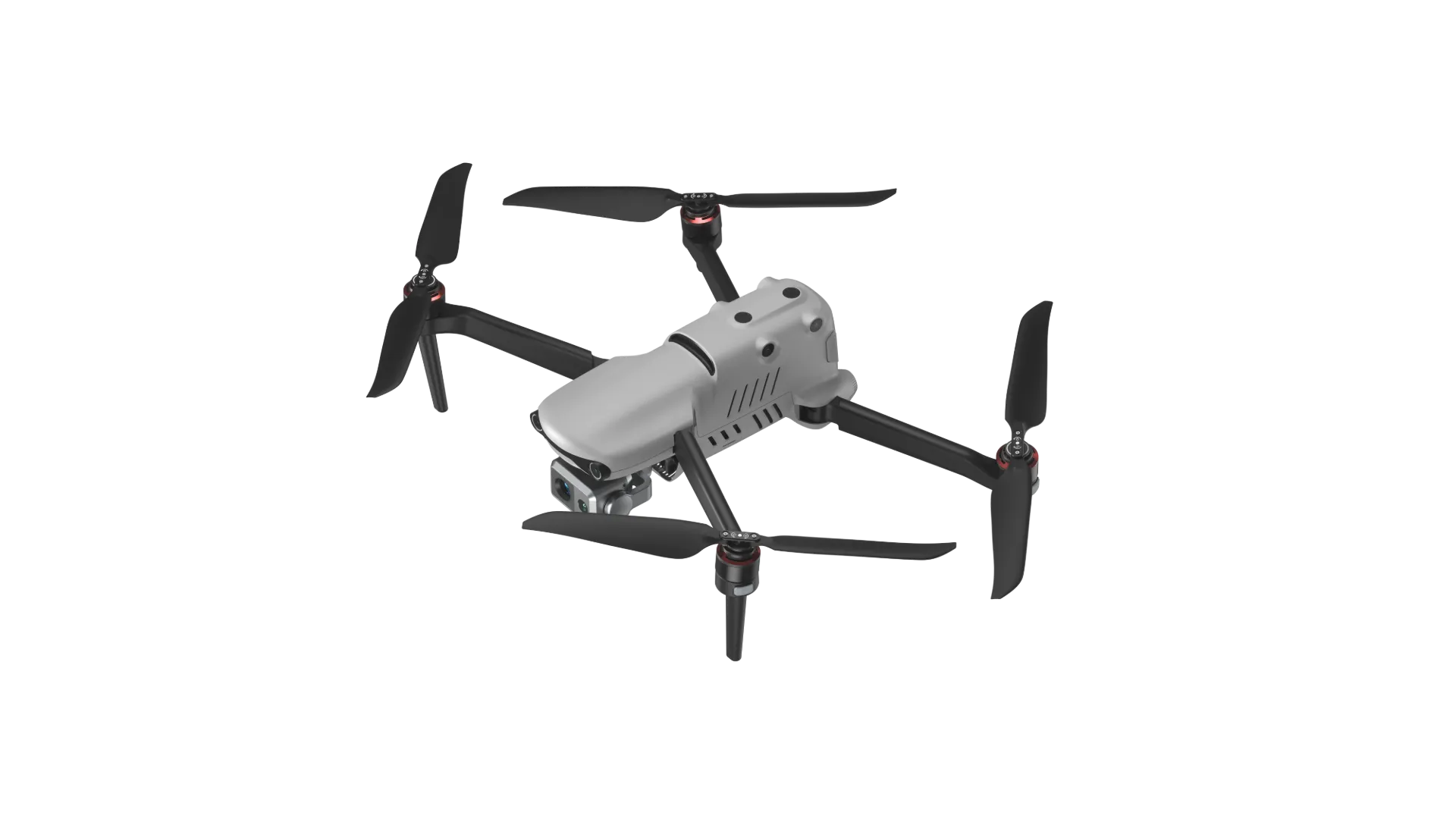

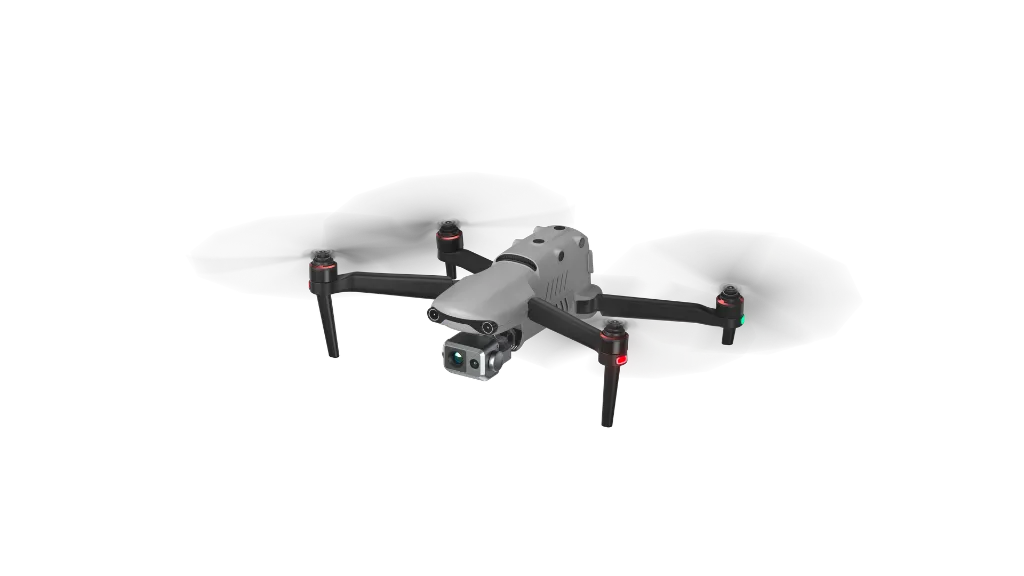

EVO II Dual Rugged Bundle (640T) V3

Equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware.

Aircraft

Weight (With propellers, battery)	1209 g
Maximum takeoff weight	1270 g (C2)
Dimensions	Folded: 230×130×108mm Unfolded: 457×558×108mm
Max. rotation speed	9000 rpm
Wheelbase	397 mm
Maximum ascent speed	Novice mode:3 m/s Standard: 5m/s Ludicrous: 8 m/s
Maximum descent speed	Novice mode: 3 m/s Standard: 3 m/s Ludicrous: 4 m/s
Maximum horizontal flight speed (no wind near sea level)	Novice mode: 3 m/s Standard: 10 m/s Ludicrous: 20 m/s
Maximum Service Ceiling Above Sea Level	5000 meters
Maximum flight altitude	800 meters (Altitude limit in the App)
Maximum flight time (no wind)	38 minutes
Maximum range	25 km
Maximum flight distance (no wind)	22 km
Maximum hover time (no wind)	33 minutes
Maximum Wind Speed Resistance	Takeoff and Landing Phase: 10.7 m/s Cruise Phase: 12 m/s
Maximum tilt angle	Novice mode: 15° Standard: 30° Ludicrous: 33°
Maximum rotation angular speed	120°/s
Working temperature	-10~40℃
Battery hot replacement	not support
Internal storage	Onboard storage: 8GB
GNSS	GPS/Galileo/BeiDou/GLONASS
Hover accuracy	Vertically: ±0.1 meters (when visual positioning is working normally) ±0.5 meters ( when GNSS is working normally) Horizontally: ±0. 3 meters (when visual positioning is working normally) ± 1.5 meters ( when GNSS is working normally )

Image Transmission

Operating Frequency	900M: 902 – 928 MHz* 2.4G: 2.400 – 2.476GHz, 2.400 – 2.4835 GHz 5.2G: 5.15 - 5.25GHz* 5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850 GHz Only applicable to FCC and ISED regions. Only applicable to SRRC regions. *Only applicable to FCC regions. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Maximum signal effective distance (No interference, no obstruction)	FCC: 10 kilometers CE: 8 kilometers
Effective transmitter power ( EIRP)	900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm (FCC/ISED), ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm (FCC/ISED/SRRC), ≤14dBm (CE/UKCA)

Visual Sensing System

Sensing range	Forward: 0.5~18 meters Effective sensing speed:＜12m/s Backward: 0.5~16 meters Effective sensing speed:＜12m/s Left and right: 0.5~10 meters Effective sensing speed:＜5m/s Upward: 0.5~10 meters Effective sensing speed:＜5m/s Downward: 0.5~10 meters Effective sensing speed:＜5m/s
FOV	Forward and backward: 60° horizontally, 80° vertically Upward: 65° horizontally, 50° vertically Left and right: 65° horizontally, 50° vertically Downward: 100° horizontally, 80° vertically
Effective use of the environment	Front, rear, left and right:The surface has rich texture and sufficient lighting conditions ( >15 lux, normal indoor fluorescent lighting environment) Above: The surface is a diffuse reflection material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground is richly textured and the lighting conditions are sufficient ( >15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)

Visual Camera 1

Image sensor	1/1.28 inch CMOS, 50 million pixels
Lens	Field of view: 85° 35 mm format equivalent focal length: 23 mm Aperture: f/1.9 Focus distance: 0.5 meter ~ ∞
ISO range	Video: ISO100 ~ ISO6400 Photo: ISO100 ~ ISO6400 Night scene mode: Maximum video ISO320000
Shutter speed	Photo mode: 1/8000 ~ 8 seconds Others: 1/8000 ~ 1/frame rate second
Zoom	1 - 16x digital zoom (maximum 4x lossless zoom)
Maximum photo size	8192×6144（4:3） 4096×3072（4:3） 3840×2160（16:9）
Photo format	JPG (default) /12bits DNG / JPG+12bits DNG
Photo shooting mode	Single shooting (default)/Brust shooting/AEB continuous shooting/time lapse/HDR shooting
Video resolution	3840×2160 P60/P50/P48/P30(Default)/P25/P24 2720×1528 P60/P50/P48/P30/P25/P24 1920×1080 P120/P60/P50/P48/P30/P25/P24
Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video maximum bit rate	60Mbps
Support file system	FAT32/exFAT

Visual Camera 2

Image sensor	1/2 inch CMOS, 12 million pixels
Lens	DFOV: 84° Effective Focal Length: 7 mm 35mm Equivalent Focal Length: 24 mm Aperture: F2.8 AF Type: FF Manual Focus Distance: 1.5 m ~ ∞ (Fixed Focus)
ISO range	Video: ISO100 ~ ISO6400 Photo: ISO100 ~ ISO6400 Night scene mode: Maximum video ISO320000
Shutter speed	Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
Zoom	1 - 16x digital zoom (maximum 4x lossless zoom)
photo size	4000×3000
Photo format	JPG/DNG
Video resolution	3840×2160 P30 Night Mode：3840×2160 P30
Video format	MP4

Thermal Camera

Sensor	Uncooled VOx Microbolometer
Lens	FOV H33°V26° Focal length 13mm
Zoom	1-16x
Pixel size	12μm
Wavelength range	8 - 14μm
Temperature range	High gain mode: -20° to +150° Low gain mode: 0° to +550°
Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
Accurate temperature measurement distance	2-20 meters
Video resolution	640x512@25fps
Video format	MOV / MP4 (Support H.264/H.265)
Camera resolution	Infrared mode: 640512 Picture-in-picture mode: 19201080, 1280*720
Photo mode	Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60s
Photo format	JPG (with irg file)

Gimbal

Mechanical scope	Pitch: -135° to +45° Heading: -100° to +100°
Controllable rotation range	Pitch: -90° to +30° Heading: -90° to +90°
Stable system	Three-axis stabilization
Maximum control speed (pitch)	300°/s
Angualr vibration range	0.005°

Autel Smart Controller v3

Material	PC+ABS
Dimensions	269×189×87 mm (antennas folded horizontally) 269×189×173 mm (antennas folded vertically) 269×302×87 mm (antennas unfolded horizontally)
Weight	1194 g (protective case excluded) 1365 g (protective case included)
Operating Temperature	-20°C to 40°C
Storage Temperature	+15°C ~ +25°C (within a year) 0°C ~ +30°C (within three months) -20°C ~ +45°C (within a month)
Protection Rating	IP43
Internal Storage	128GB
microSD Extension	Not supported
Operating System	Based on Android 11
Application Installation	Supports the installation of third-party Android apps
Video Performance	4K@24FPS H.264/H.265 video smooth play
HDMI	Outputs up to 1080P@60FPS video
USB-C	Charging: supports PD 60W fast charging and QC 18W fast charging. Data: USB3.1 Gen2
USB-A	Charging: 5V/2A Data: USB2.0
GNSS	GPS+Galileo+BeiDou+GLONASS
Wi-Fi Protocol	802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency	2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz, 5.725-5.850GHz *Only applies to SRRC region Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA） 5.8G: ≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）
Bluetooth	Bluetooth 5.0
Bluetooth Operating Frequency	2.400 - 2.4835 GHz
Bluetooth Effective Isotropic Radiated Power (EIRP)	≤20dBm

Image Transmission

Antenna	Dual antennas, 1T2R, detachable design
Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA）
Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15 km CE/SRRC: 8 km

Display

Type	TFT LCD
Dimensions	7.9 inches
Maximum Brightness	2000 nits
Resolution	2048×1536
Refresh Rate	60Hz
Touch Control	Supports 10-point touch

Battery

Battery Type	Li-Po 3S
Rated Capacity	5800 mAh
Voltage	11.55V
Battery Energy	67 Wh
Charging Time	About 120 minutes
Battery Endurance	2.5 hours (Max brightness) 4.0 hours (50% brightness)
Battery Replacement	Not supported

Smart Battery

Operating Temperature	0~+45℃
Battery Type	LiPo 3S
Rated Capacity	7100 mAh
Battery energy	82 Wh
Voltage	11.55 V
Charging Voltage Limit	13.2V
Rated Charging Power	66W
Maximum charging power	93W
Weight	365g
Battery charging temperature	+5-+45℃ (When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.)

Battery Storage

Ideal storage environment	+ 22℃ ~ +28℃
Storage temperature and humidity	- 10℃ ~ +30℃, 65 ± 20%RH

Battery Single Charger

Power input	100-240V ~ 50/60 Hz, 1.5 A
Output port	Battery charging interface/USB-A
Battery charging interface	13.2V~5A
USB charging port	5V~3A, 9V~2A, 12V~1.5A
Rated power	66W Max

1x Aircraft (battery, propeller set, gimbal, gimbal cover)
1x SD Card 32 GB
1x Battery charger + power cable
1x Manual
1x Protector case
2x Spare Battery
2x Spare Propeller (pair)
1x Car charger
1x Multi-charger
1x Remote Controller (RC), sticks included
1x RC charger + charger cable
1x RC lanyard
1x RC protective case
1x RC spare joystick (pair)

High-level specs

Aircraft
Kleur	Grijs, Oranje
Merk	Autel
Gewicht	1209g
Dimensies (opengevouwen)	457×558×108mm
Max vluchttijd	38 minuten
Max vluchtbereik	25km
Drone klasse	C2

Gimbal cameras
Camera 1	50 million pixels, 1-16x zoom
Thermische camera 1	640x512, 1-16x zoom
Thermische camera	Ja
Nachtzicht	Nee

Accessories
Protector case	Ja
Reserve-componenten	2 batterijen, 2x propeller paar
Accessoires	RTK module, car charger, multi-charger
microSD kaart grootte	32 GB

Remote controller
Remote controller schermgrootte	7.9"

Andere
Type	Drone bundle
